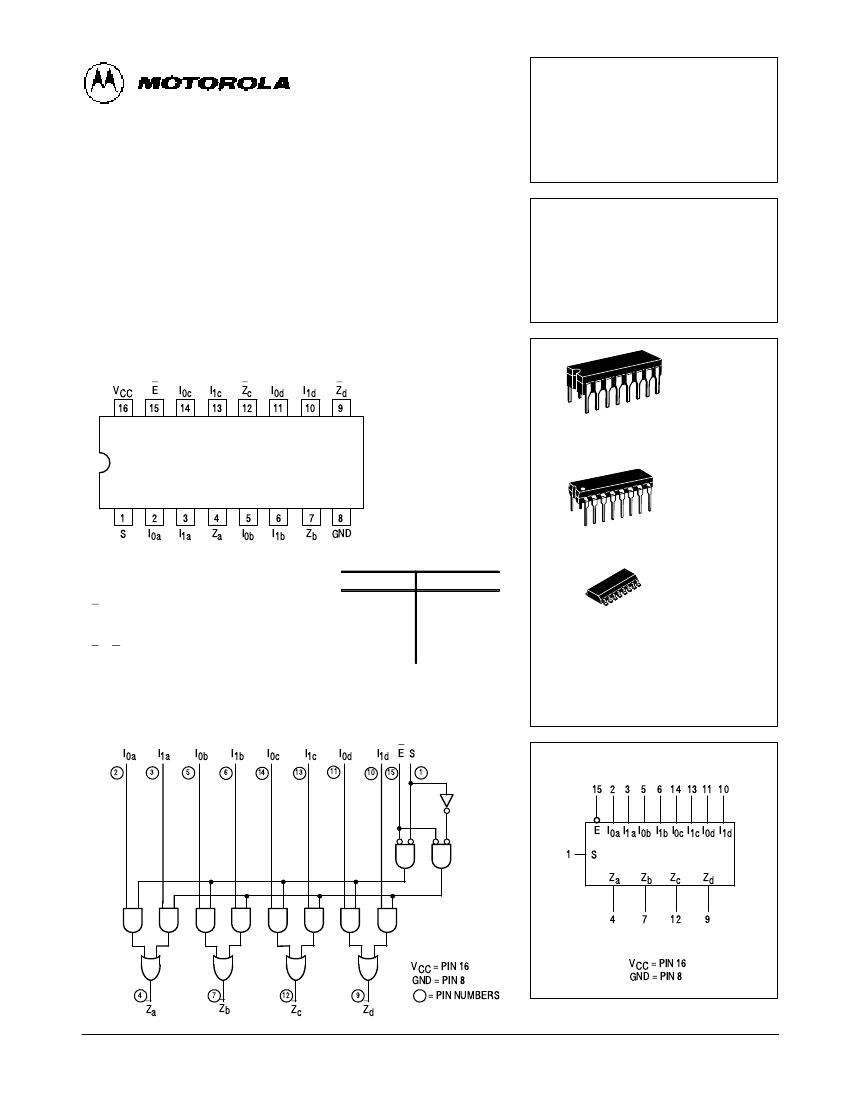

The LSTTL/ MSI SN54L/ 74LS158 is a high speed Quad 2-input Multiplex-
er. It selects four bits of data from two sources using the common Select and
Enable inputs. The four buffered outputs present the selected data in the
inverted form. The LS158 can also generate any four of the 16 different
functions of two variables. The LS158 is fabricated with the Schottky barrier
diode process for high speed and is completely compatible with all Motorola
TTL families.
SN54/74LS158
•
•
•
•
•
•
QUAD 2-INPUT MULTIPLEXER
LOW POWER SCHOTTKY
Schottky Process for High Speed
Multifunction Capability
Inverted Outputs
Input Clamp Diodes Limit High Speed Termination Effects
ESD > 3500 Volts
Special Circuitry Ensures Glitch Free Multiplexing
CONNECTION DIAGRAM DIP
(TOP VIEW)
VCC
16
E
15
I0c
14
I1c
13
Zc
12
I0d
11
I1d
10
Zd
9
NOTE:
The Flatpak version
has the same pinouts
(Connection Diagram) as
the Dual In-Line Package.
16
J SUFFIX
CERAMIC
CASE 620-09
1
1
S
2
I0a
3
I1a
4
Za
5
I0b
6
I1b
7
Zb
8
GND
16
1
N SUFFIX
PLASTIC
CASE 648-08
PIN NAMES
S
E
I0a – I0d
I1a – I1d
Za – Zd
Common Select Input
Enable (Active LOW) Input
Data Inputs from Source 0
Data Inputs from Source 1
Inverted Outputs (Note b)
LOADING
(Note a)
HIGH
1.0 U.L.
1.0 U.L.
0.5 U.L.
0.5 U.L.
10 U.L.
LOW
0.5 U.L.
0.5 U.L.
0.25 U.L.
0.25 U.L.
5 (2.5) U.L.
16
1
D SUFFIX
SOIC
CASE 751B-03
ORDERING INFORMATION
SN54LSXXXJ
SN74LSXXXN
SN74LSXXXD
Ceramic
Plastic
SOIC
NOTES:
a) 1 TTL Unit Load (U.L.) = 40
µA
HIGH/1.6 mA LOW.
b) The Output LOW drive factor is 2.5 U.L. for Military (54) and 5 U.L. for Commercial (74)
Temperature Ranges.
LOGIC DIAGRAM
I0a
2
3
I1a
5
I0b
6
I1b
14
I0c
13
I1c
11
I0d
10
I1d E S
15
1
LOGIC SYMBOL
15 2 3
5
6 14 13 11 10
E I0a I1a I0b I1b I0c I1c I0d I1d
1
S
Za
Zb
Zc
Zd
4
7
12
9
4
7
12
9
Za
Zb
VCC = PIN 16
GND = PIN 8
= PIN NUMBERS
Zd
VCC = PIN 16
GND = PIN 8
Zc
FAST AND LS TTL DATA
5-273
SN54/74LS158
FUNCTIONAL DESCRIPTION
The LS158 is a Quad 2-input Multiplexer fabricated with the
Schottky barrier diode process for high speed. It selects four
bits of data from two sources under the control of a common
Select Input (S) and presents the data in inverted form at the
four outputs. The Enable Input (E) is active LOW. When E is
HIGH, all of the outputs (Z) are forced HIGH regardless of all
other inputs.
The LS158 is the logic implementation of a 4-pole,
2-position switch where the position of the switch is deter-
mined by the logic levels supplied to the Select Input.
A common use of the LS158 is the moving of data from two
groups of registers to four common output busses. The
particular register from which the data comes is determined by
the state of the Select Input. A less obvious use is as a function
generator. The LS158 can generate four functions of two
variables with one variable common. This is useful for
implementing gating functions.
TRUTH TABLE
ENABLE
E
H
L
L
L
L
H = HIGH Voltage Level
L = LOW Voltage Level
X = Don’t Care
SELECT
INPUT
S
X
L
L
H
H
INPUTS
I0
X
L
H
X
X
I1
X
X
X
L
H
OUTPUT
Z
H
H
L
H
L
GUARANTEED OPERATING RANGES
Symbol
VCC
TA
IOH
IOL
Supply Voltage
Operating Ambient Temperature Range
Output Current — High
Output Current — Low
Parameter
54
74
54
74
54, 74
54
74
Min
4.5
4.75
– 55
0
Typ
5.0
5.0
25
25
Max
5.5
5.25
125
70
– 0.4
4.0
8.0
Unit
V
°C
mA
mA
FAST AND LS TTL DATA
5-274
SN54/74LS158
DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE
(unless otherwise specified)
Limits
Symbol
VIH
VIL
VIK
VOH
Parameter
Input HIGH Voltage
Input LOW Voltage
Input Clamp Diode Voltage
Output HIGH Voltage
54
74
54, 74
VOL
Output LOW Voltage
74
Input HIGH Current
I0, I1
E, S
I0, I1
E, S
IIL
IOS
ICC
Input LOW Current
I0, I1
E, S
Short Circuit Current (Note 1)
Power Supply Current
– 20
0.35
0.5
20
40
0.1
0.2
– 0.4
– 0.8
– 100
8.0
V
µA
mA
2.5
2.7
54
74
– 0.65
3.5
3.5
0.25
0.4
Min
2.0
0.7
0.8
– 1.5
V
V
V
V
Typ
Max
Unit
V
V
Test Conditions
Guaranteed Input HIGH Voltage for
All Inputs
Guaranteed Input LOW Voltage for
All Inputs
VCC = MIN, IIN = – 18 mA
VCC = MIN, IOH = MAX, VIN = VIH
or VIL per Truth Table
IOL = 4.0 mA
IOL = 8.0 mA
VCC = VCC MIN,
VIN = VIL or VIH
per Truth Table
VCC = MAX, VIN = 2.7 V
VCC = MAX, VIN = 7.0 V
IIH
mA
mA
mA
VCC = MAX, VIN = 0.4 V
VCC = MAX
VCC = MAX
All inputs at 4.5 V.
All outputs open.
All other input
combinations.
All outputs open.
ICC
Power Supply Current
11
mA
VCC = MAX
Note 1: Not more than one output should be shorted at a time, nor for more than 1 second.
AC CHARACTERISTICS
(TA = 25°C)
Limits
Symbol
tPLH
tPHL
tPLH
tPHL
tPLH
tPHL
Parameter
Propagation Delay
Data to Output
Propagation Delay
Enable to Output
Propagation Delay
Select to Output
Min
Typ
7.0
10
11
18
13
16
Max
12
15
17
24
20
24
Unit
ns
ns
ns
Figure 2
Figure 1
Figure 2
VCC = 5.0 V
CL = 15 pF
Test Conditions
AC WAVEFORMS
V
IN
1.3 V
1.3 V
V
IN
1.3 V
1.3 V
t
PHL
t
PLH
t
PHL
t
PLH
V
OUT
1.3 V
1.3 V
V
OUT
1.3 V
1.3 V
Figure 1
Figure 2
FAST AND LS TTL DATA
5-275

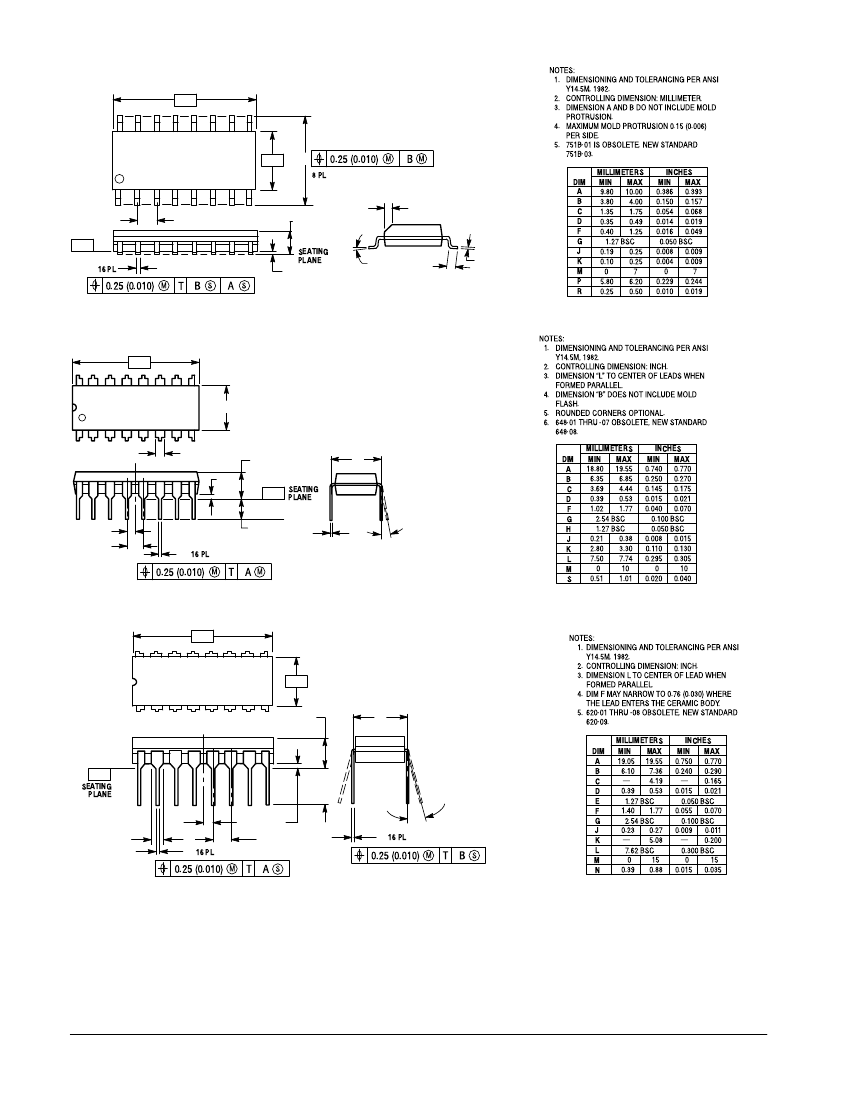

-A-
Case 751B-03 D Suffix
16-Pin Plastic
SO-16
NOTES:
1.
DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2.
3.
CONTROLLING DIMENSION: MILLIMETER.
DIMENSION A AND B DO NOT INCLUDE MOLD
PROTRUSION.
4.
MAXIMUM MOLD PROTRUSION 0.15 (0.006)
PER SIDE.
5.
751B 01 IS OBSOLETE, NEW STANDARD
751B 03.
16
9
-B-
1
8
P
8 PL
0.25 (0.010)
M
B
M
R X 45°
G
-T-
D
16 PL
0.25 (0.010)
M
C
SEATING
PLANE
K
T
B
S
M
F
J
A
S
DIM
A
B
C
D
F
G
J
K
M
P
R
MILLIMETERS
MIN
MAX
9.80
3.80
1.35
0.35
0.40
10.00
4.00
1.75
0.49
1.25
INCHES
MIN
MAX
0.386
0.150
0.054
0.014
0.016
0.393
0.157
0.068
0.019
0.049
1.27 BSC
0.19
0.10
0
0.25
0.25
7
0.050 BSC
0.008
0.004
0
0.009
0.009
7
°
°
°
°
5.80
0.25
6.20
0.50
0.229
0.010
0.244
0.019
Case 648-08 N Suffix
16-Pin Plastic
-A-
16
9
NOTES:
1.
DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2.
3.
CONTROLLING DIMENSION: INCH.
DIMENSION L" TO CENTER OF LEADS WHEN
FORMED PARALLEL.
4.
DIMENSION B" DOES NOT INCLUDE MOLD
FLASH.
5.
6.
ROUNDED CORNERS OPTIONAL.
648 01 THRU 07 OBSOLETE, NEW STANDARD
648 08.
B
1
8
F
S
C
-T-
K
SEATING
PLANE
L
H
G
D
16 PL
0.25 (0.010)
M
J
M
T
A
M
DIM
A
B
C
D
F
G
H
J
K
L
M
S
MILLIMETERS
MIN
MAX
18.80
6.35
3.69
0.39
1.02
19.55
6.85
4.44
0.53
1.77
INCHES
MIN
MAX
0.740
0.250
0.145
0.015
0.040
0.770
0.270
0.175
0.021
0.070
2.54 BSC
1.27 BSC
0.21
2.80
7.50
0
0.38
3.30
7.74
10
0.100 BSC
0.050 BSC
0.008
0.110
0.295
0
0.015
0.130
0.305
10
°
°
°
°
0.51
1.01
0.020
0.040
-A-
16
9
Case 620-09 J Suffix
16-Pin Ceramic Dual In-Line
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
-B-
1
8
3. DIMENSION L TO CENTER OF LEAD WHEN
FORMED PARALLEL.
4. DIM F MAY NARROW TO 0.76 (0.030) WHERE
THE LEAD ENTERS THE CERAMIC BODY.
C
L
5. 620 01 THRU 08 OBSOLETE, NEW STANDARD
620 09.
-T-
SEATING
PLANE
K
E
F
D
16 PL
0.25 (0.010)
M
N
G
T
A
S
M
J
16 PL
0.25 (0.010)
M
T
B
S
DIM
A
B
C
D
E
F
G
J
K
L
M
N
MILLIMETERS
MIN
MAX
19.05
6.10
19.55
7.36
4.19
0.39
0.53
INCHES
MIN
MAX
0.750
0.240
0.770
0.290
0.165
0.015
0.021
1.27 BSC
1.40
1.77
0.050 BSC
0.055
0.070
2.54 BSC
0.23
0.27
5.08
7.62 BSC
0
0.100 BSC
0.009
0.011
0.200
0.300 BSC
0
°
15
°
°
15
°
0.39
0.88
0.015
0.035
FAST AND LS TTL DATA
5-276
