BT136M-600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BT136M-600

BT136M-600: DescriptionTRIAC, 600 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size190KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BT136M-600 Overview

TRIAC, 600 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN

BT136M-600 Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	TO-252
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JEDEC-95 code	TO-252
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum rms on-state current	4 A
Maximum repetitive peak off-state leakage current	500 µA
Off-state repetitive peak voltage	600 V
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

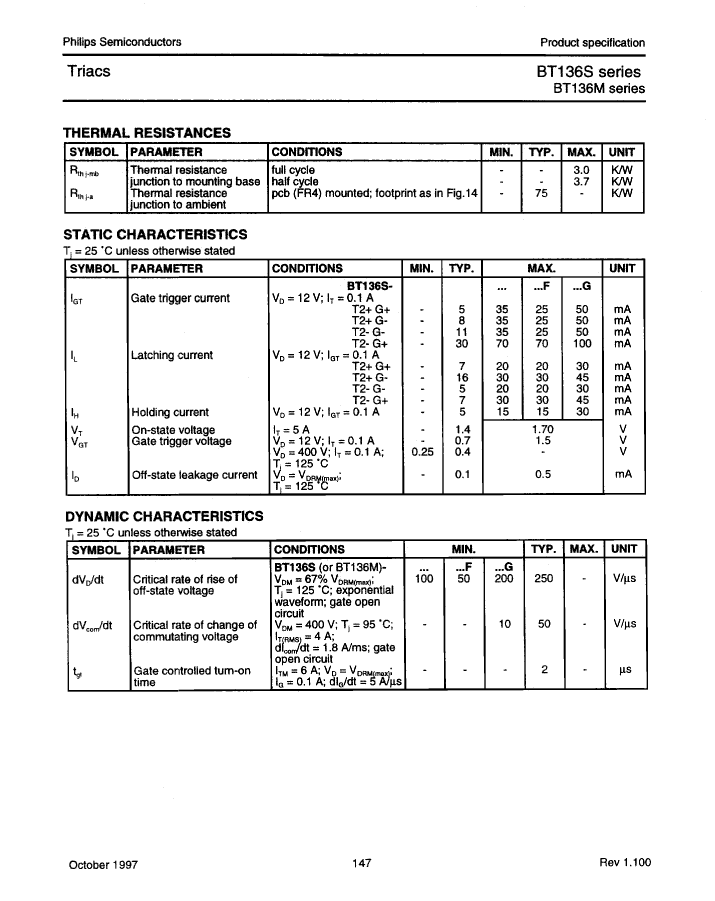

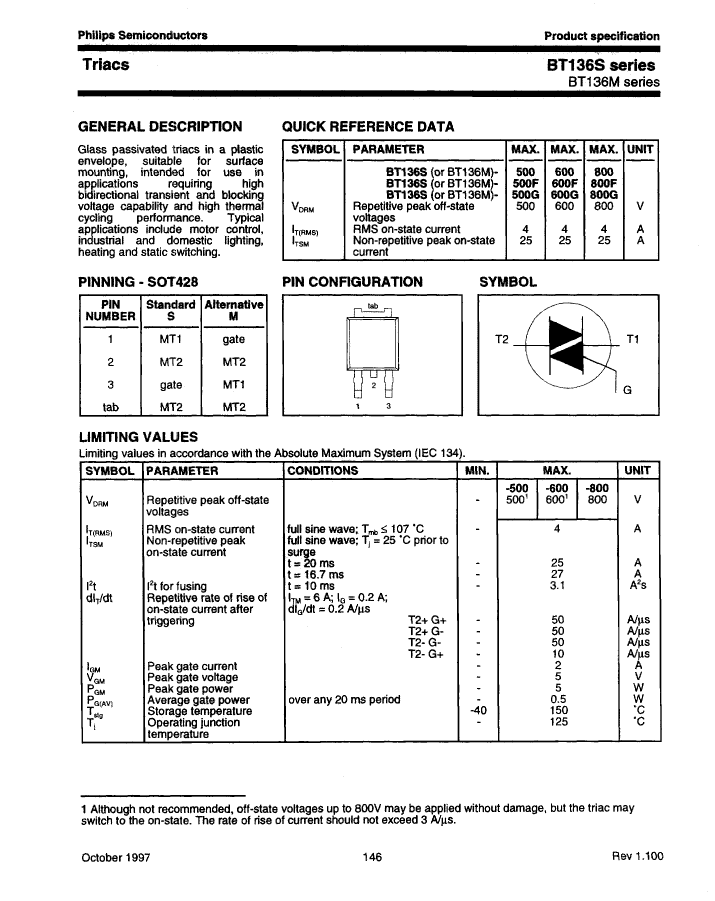

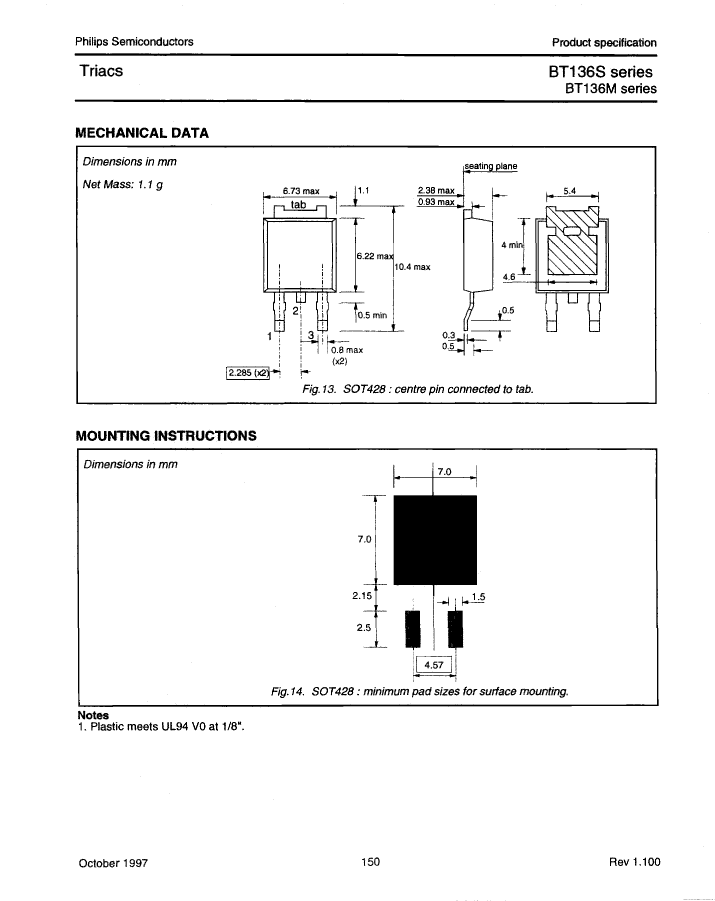

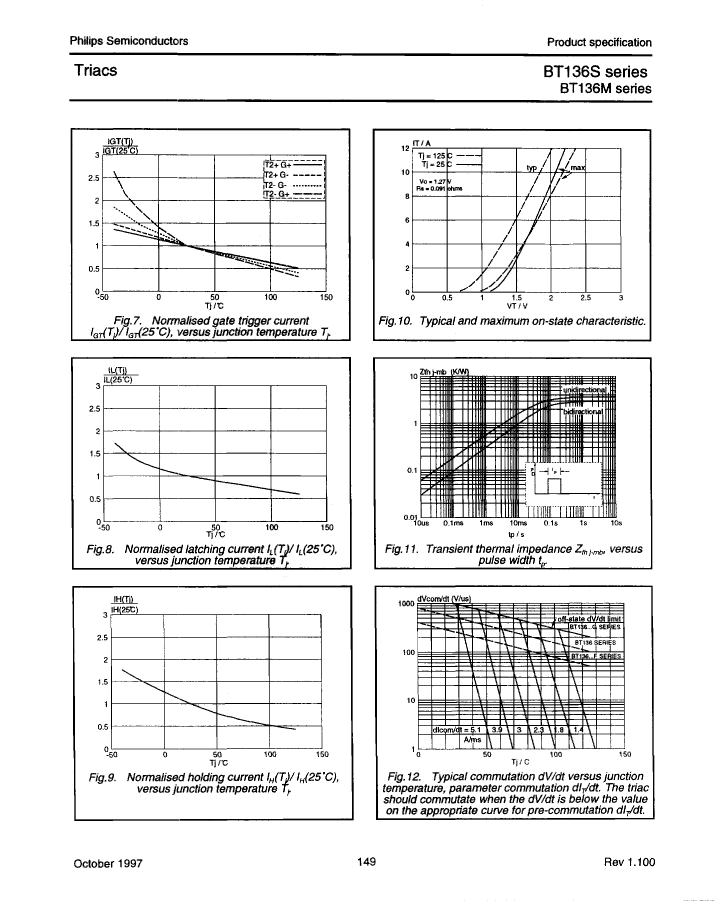

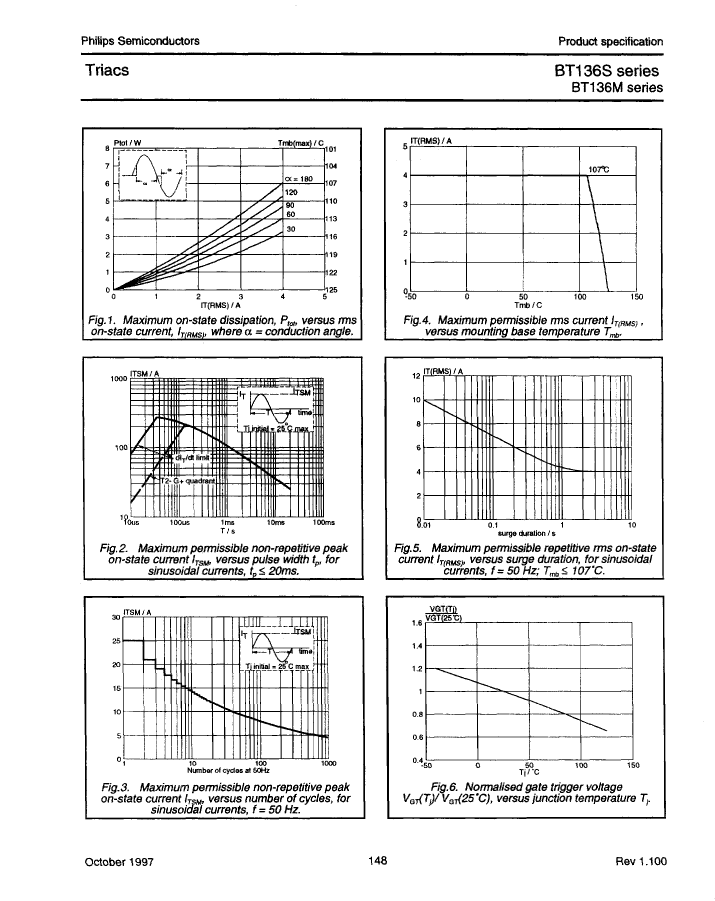

Preview

Download Datasheet

View All

BT136M-600 Related Products

	BT136M-600	BT136M-500	BT136M-500F	BT136M-500G
Description	TRIAC, 600 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN	TRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN	TRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN	TRIAC, 500 V, 4 A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SOT-428, 3 PIN
Maker	NXP	NXP	NXP	NXP
Parts packaging code	TO-252	TO-252	TO-252	TO-252
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
Shell connection	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	100 V/us	100 V/us	50 V/us	200 V/us
Maximum DC gate trigger current	35 mA	35 mA	25 mA	50 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	15 mA	15 mA	15 mA	30 mA
JEDEC-95 code	TO-252	TO-252	TO-252	TO-252
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	4 A	4 A	4 A	4 A
Maximum repetitive peak off-state leakage current	500 µA	500 µA	500 µA	500 µA
Off-state repetitive peak voltage	600 V	500 V	500 V	500 V
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
