BT137S-800F

Description
800V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SC-63, DPAK-3
CategoryAnalog mixed-signal IC    Trigger device
File Size218KB,14 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric View All

BT137S-800F Overview

800V, 8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-252, PLASTIC, SC-63, DPAK-3

BT137S-800F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNXP
Parts packaging codeTO-252
package instructionPLASTIC, SC-63, DPAK-3
Contacts3
Reach Compliance Codenot_compliant
Other featuresSENSITIVE GATE
Shell connectionMAIN TERMINAL 2
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage50 V/us
Maximum DC gate trigger current25 mA
Maximum DC gate trigger voltage1.5 V
Maximum holding current20 mA
JEDEC-95 codeTO-252
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Maximum leakage current0.5 mA
Humidity sensitivity level1
Number of components1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current8 A
Maximum repetitive peak off-state leakage current500 µA
Off-state repetitive peak voltage800 V
surface mountYES
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device type4 QUADRANT LOGIC LEVEL TRIAC
BT137S-800F
4Q Triac
26 September 2013
Product data sheet
1. General description
Planar passivated four quadrant triac in a SOT428 (DPAK) surface-mountable plastic
package intended for use in general purpose bidirectional switching and phase control
applications.
2. Features and benefits
High blocking voltage capability
Less sensitive gate for improved noise immunity
Planar passivated for voltage ruggedness and reliability
Surface-mountable package
Triggering in all four quadrants
3. Applications
General purpose motor control
General purpose switching
4. Quick reference data
Table 1.
Symbol
V
DRM
I
TSM
I
T(RMS)
Quick reference data
Parameter
repetitive peak off-
state voltage
non-repetitive peak on- full sine wave; T
j(init)
= 25 °C;
state current
t
p
= 20 ms;
Fig. 4; Fig. 5
RMS on-state current
full sine wave; T
mb
≤ 102 °C;

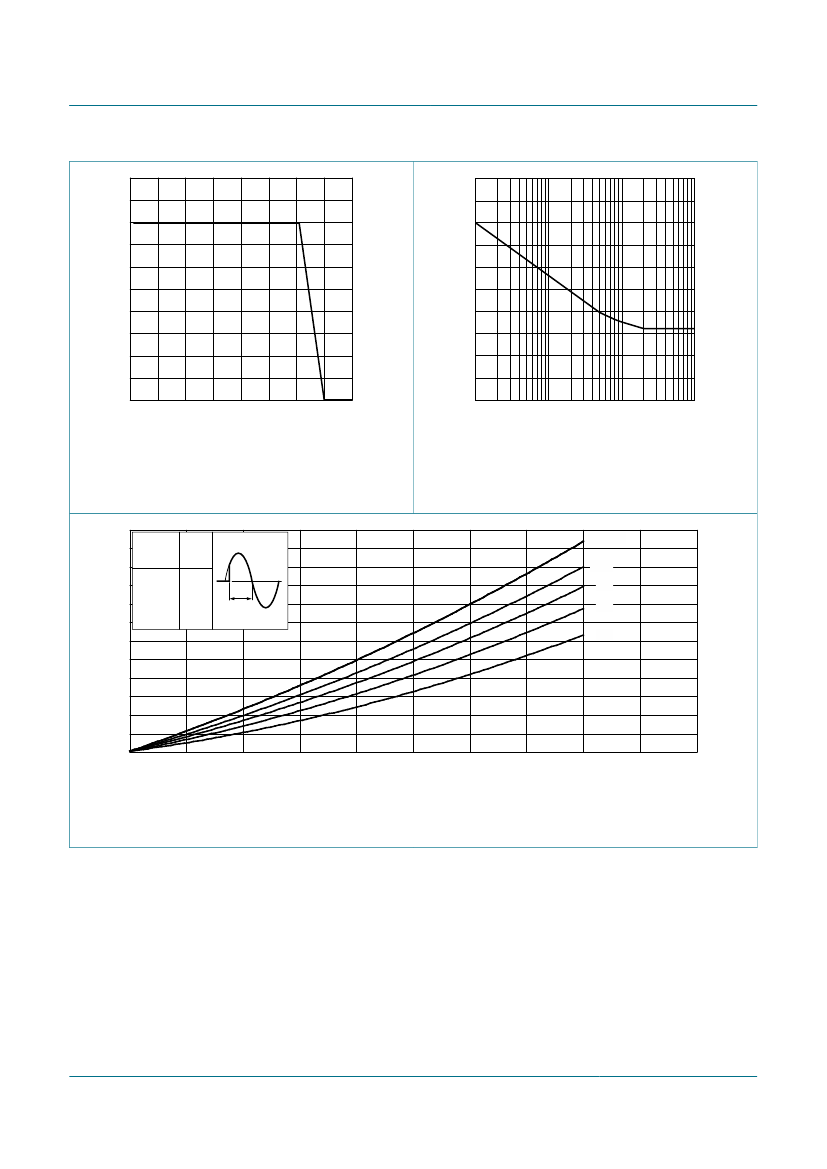

Fig. 1;
Fig. 2; Fig. 3
Static characteristics
I
GT
gate trigger current
V
D
= 12 V; I
T
= 0.1 A; T2+ G+;
T
j
= 25 °C;
Fig. 7
V
D
= 12 V; I
T
= 0.1 A; T2+ G-;
T
j
= 25 °C;
Fig. 7
V
D
= 12 V; I
T
= 0.1 A; T2- G-;
T
j
= 25 °C;
Fig. 7
-
11
25
mA
-
8
25
mA
-
5
25
mA
Conditions
Min
-
-
-
Typ
-
-
-
Max
800
65
8
Unit
V
A
A
