• Exceptional reliability and environmental stability
• Low polarization dependent loss (PDL)
• Flat and wide passband
• High demux channel isolation
• Customizable with tap and multi-channel or band capabilities
Applications
• Access/enterprise networks
• Metro networks
• Long haul networks
• Denser channel plans (50 GHz when
used in conjunction with an optical
frequency interleaver)
• Test bench/systems

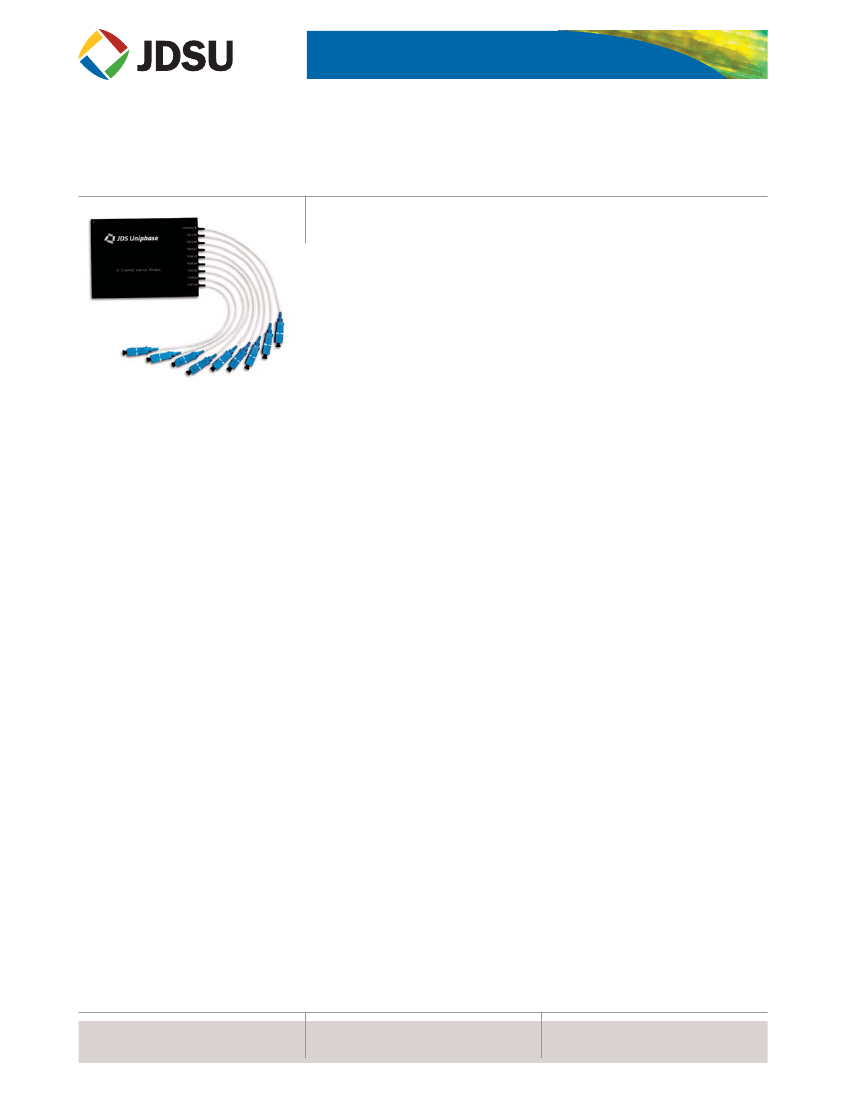

JDSU multi-channel multiplexer/demultiplexer (mux/demux) modules are
available on ITU channel spacings of 200, 100, and 50 GHz, as well as on bands of
ITU channels.
Manufactured using laser welding technology, the integrated mux/demux module
components exceed Telcordia GR-1221 requirements. The modules, themselves,
demonstrate low loss, temperature insensitivity, and reliable performance in any
system application.
Fixed mux/demux modules offer low-cost wavelength management solutions that
are suitable for long haul, metro, and access applications. Easily customizable,
these devices are configured by number of channels for any customer-specific
channel plan.
Packaging options include fiber type, connectors, footprint, and integration of
taps and detectors for a complete dense wavelength division multiplexing
(DWDM) solution.
Established volume capability and proven experience in customizing fiberoptic
components and modules make JDSU the supplier of choice.
Compliance
• Telcordia GR-1221
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
MULTI-CHANNEL MUX/DEMUX MODULE
100 GHZ SPACING
2

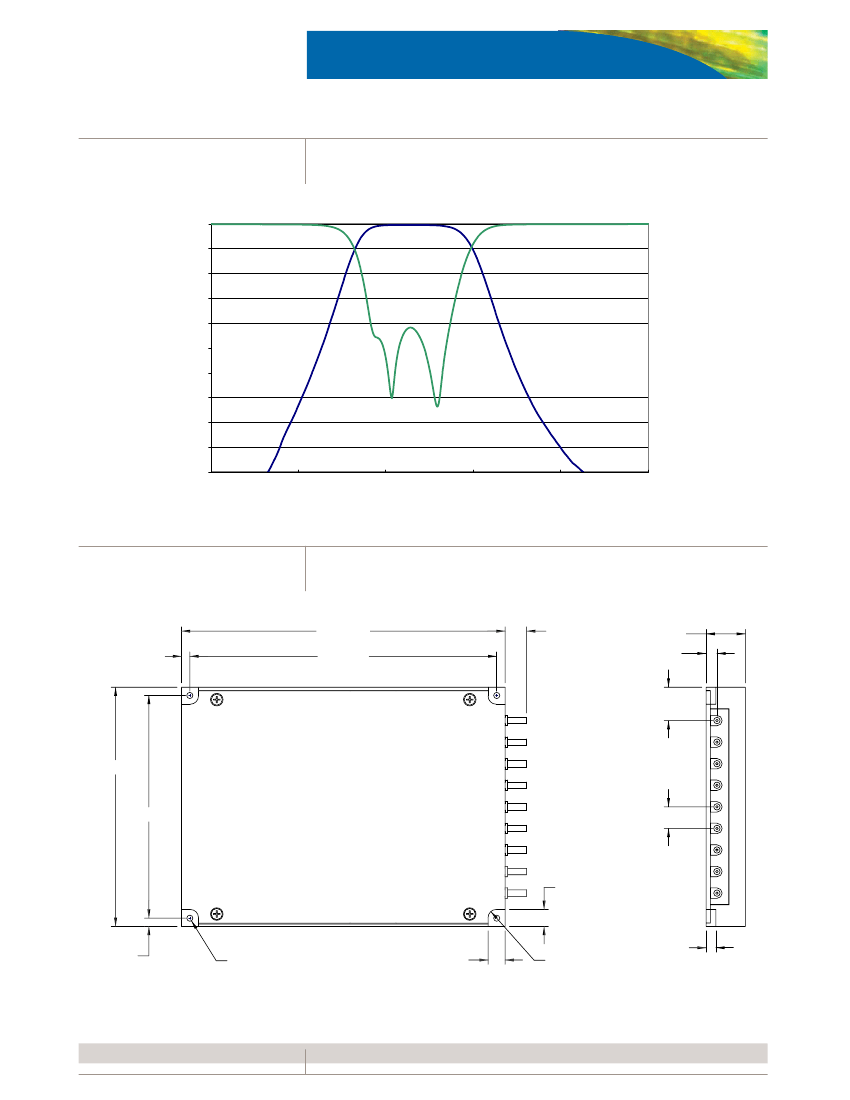

100 GHz Coupler Spectral Plot
0
5
10
15
Loss (dB)
20
25
30
35
40
45
50
1541
1541.5
1542
1542.5
1543
1543.5
Wavelength (nm)
Dimensions Diagram
(Specifications in mm unless otherwise noted.)
125.7
3.2
119.3
8.4
15.2
4.2
13.0
93.0
86.5
8X 8.4
2X 6.6
3.2
4X Ø 2.4 THRU
2X 6.6
4X R 3.2
2X 3.8
MULTI-CHANNEL MUX/DEMUX MODULE
100 GHZ SPACING
3
Specifications
Parameter
Wavelength range
Passband
Passband ripple
Insertion loss
1,2
Isolation (adjacent channel)
3
Isolation (non-adjacent channel)
3
Return loss
Directivity
Polarization dependent loss
Polarization mode dispersion
Optical power handling
Operating temperature range
Storage temperature range
Fiber type
Pigtail length
Package size (L x W x H)
1. Losses include one connector.
4 Ch
8 Ch
16 Ch
Minimum
Maximum
Maximum
Minimum
Minimum
Minimum
Minimum
Maximum
Maximum
Maximum
C or L band ITU channels 186.6 to 196.1 THz
12.5 GHz (≈ ± 0.10 nm)
0.35 dB
0.35 dB
0.35 dB
2.0 dB
3.2 dB
4.4 dB
25 dB
25 dB
25 dB
50 dB
50 dB
50 dB
45 dB
45 dB
45 dB
50 dB
50 dB
50 dB
0.2 dB
0.2 dB
0.2 dB
0.15 ps
0.15 ps
0.15 ps
1W
1W
1W
0 to 70 °C
-40 to 85 °C
9/125/900 µm fiber
1.0 ± 0.1 m
125.7 x 93.0 x 9.9 mm
125.7 x 93.0 x 9.9 mm
125.7 x 93.0 x 15.2 mm
2. Losses are for demultiplexers; multiplexer losses are 0.3 dB lower (i.e. 4 Ch Mux loss is 2.3 dB). If no connector option is selected, the maximum loss should be 0.2 dB lower.
3. Isolation values stated are for demultiplexers only.
MULTI-CHANNEL MUX/DEMUX MODULE
100 GHZ SPACING
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: DWM-1F4DS2724
DWM-1F
Code
4
8
S
Number of Channels
4
8
16
S
Channel Frequency Code
Povided by JDSU upon
customer
confirmation
Code
0
2
3
4
5
6
7
Connector Type
1
None
FC/SPC
FC/APC
SC/SPC
SC/APC
LC/UPC
LC/APC
Code
D
M
Type
Demultiplexer
Multiplexer
1. Other connectors available upon request.
Telcordia is a registered trademark of Telcordia Technologies Incorporated.
All statements, technical information and recommendations related to the products herein are based upon information believed to be
reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any
inaccuracies. The user assumes all risks and liability whatsoever in connection with the use of a product or its application. JDSU reserves
the right to change at any time without notice the design, specifications, function, fit or form of its products described herein, including
withdrawal at any time of a product offered for sale herein. JDSU makes no representations that the products
herein are free from any intellectual property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are
