8066A: DescriptionInside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

8066A Overview

Inside DC Block, 0.007MHz Min, 26500MHz Max, 0.75dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8066A Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Is Samacsys	N
Other features	2.9 MM-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	75 V
Maximum insertion loss	0.75 dB
JESD-609 code	e4
Maximum operating frequency	26500 MHz
Minimum operating frequency	0.007 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
RF/Microwave Device Types	INSIDE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

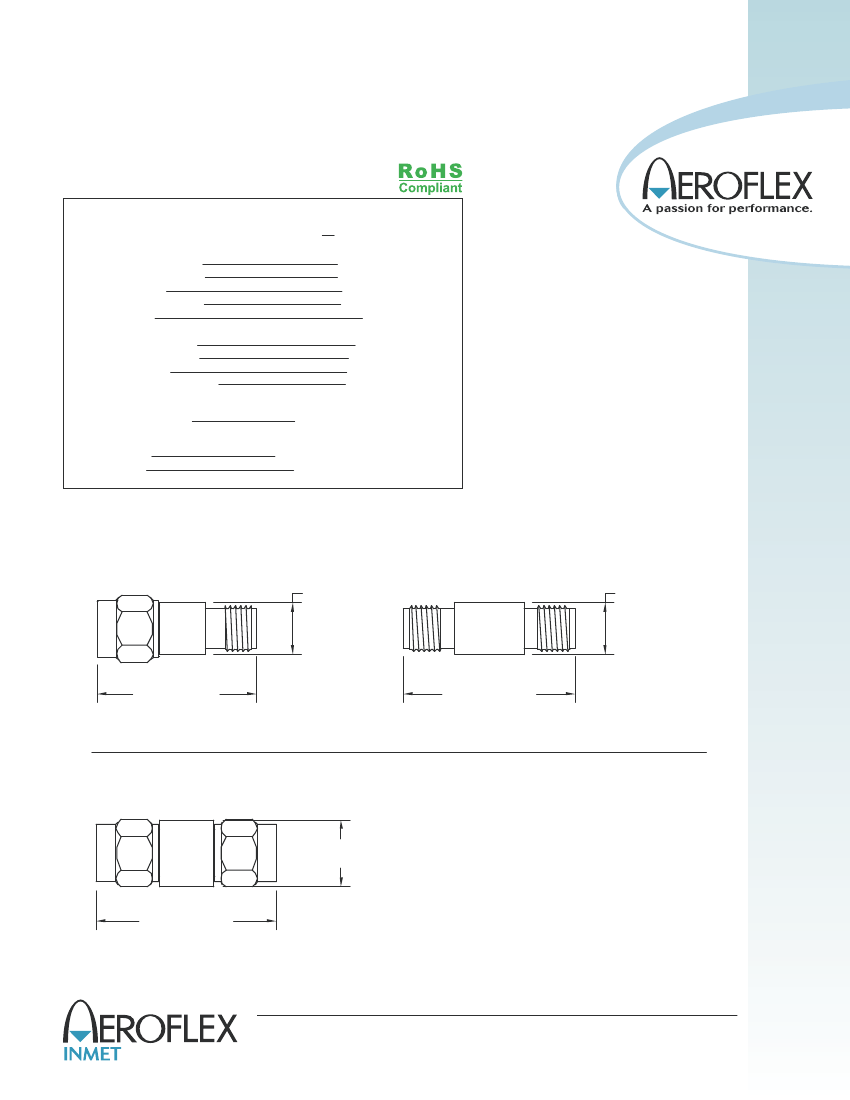

DC BLOCKS

2.9mm, 7 kHz - 26.5 GHz, Inner Only

SPECIFICATIONS:

Models: 8060A, 8063A, 8066A

Electrical:

Frequency Range and Typ. -3 dB Bandwidth

VSWR:

250 kHz - 18 GHz

18 GHz - 26.5 GHz

Typ. Risetime

Capacitance Nominal

Impedance

Insertion Loss:

250 kHz - 18 GHz

18 GHz - 26.5 GHz

Voltage Rating

Operating Temp. Range

7 kHz - 26.5 GHz

1.35:1 Max.

1.50:1 Max.

<9 picoSeconds

100 nanoFarads

50 Ohms

0.5 dB Max.

0.75 dB Max.

75 Volts Max.

-35°C to +85°C

Mechanical:

2.9mm Connectors

Mates both Mechanically and Electrically with

SMA, SMK, K*, 2.92mm & 3.5mm Series Connectors

Passivated Stainless Steel

Gold Plated Beryllium Copper

Passivated Stainless Steel

* K is a Trademark of Anritsu Corp.

Conductors

Housings

Model Number:

8060A

2.9mm Male / Female

Model Number:

8063A

2.9mm Female / Female

Ø.280

[7.11]

Ø.280

[7.11]

.855±.020

[21.7±0.51]

.920±.015

[23.37±0.38]

Model Number:

8066A

2.9mm Male / Male

Ø.360 [9.14]

.965±.030

[24.51±0.76]

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing or use.

8060A: REV

B

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
