Part Number

Search

BAT22J

Description
Rectifier Diode, 16 Element, 0.4A, 40V V(RRM), Silicon, HERMETIC SEALED, CERAMIC, DIP-14
CategoryDiscrete semiconductor    diode
File Size45KB,2 Pages
ManufacturerZetex Semiconductors
Websitehttp://www.zetex.com/
Download Datasheet Parametric View All

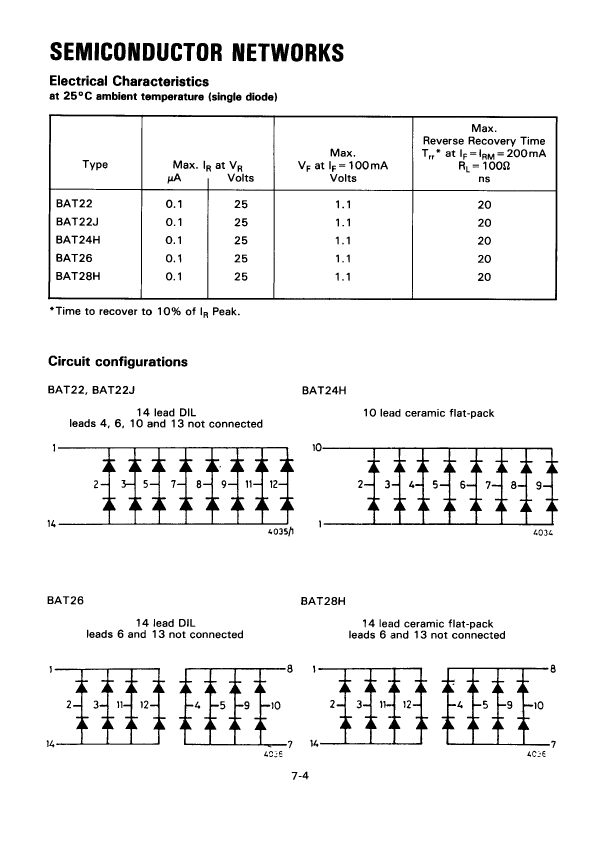

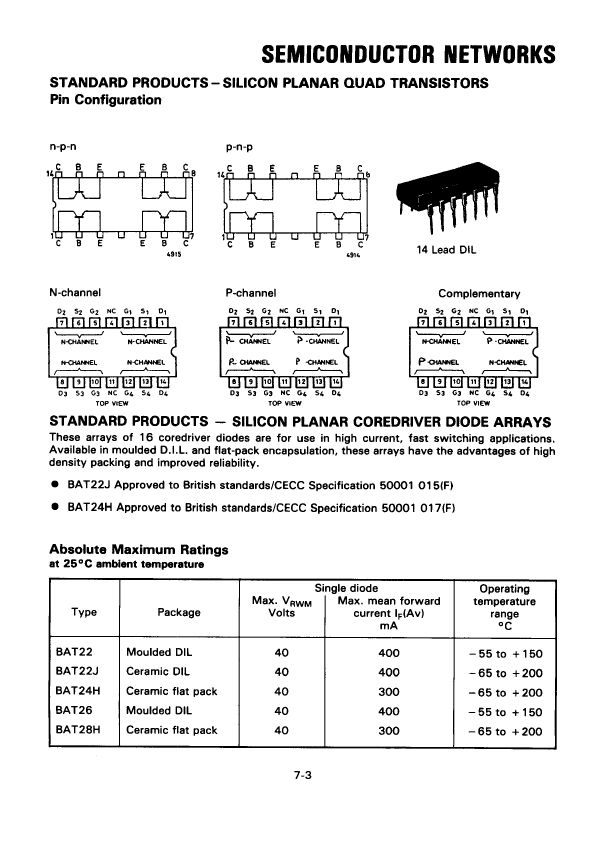

BAT22J Overview

Rectifier Diode, 16 Element, 0.4A, 40V V(RRM), Silicon, HERMETIC SEALED, CERAMIC, DIP-14

BAT22J Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerZetex Semiconductors
package instructionR-CDIP-T14
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
ConfigurationCOMPLEX
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JESD-30 codeR-CDIP-T14
JESD-609 codee0
Number of components16
Number of terminals14
Maximum operating temperature200 °C
Minimum operating temperature-65 °C
Maximum output current0.4 A
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)235
Maximum power dissipation0.6 W
Certification statusNot Qualified
GuidelineCECC50001-015F
Maximum repetitive peak reverse voltage40 V
Maximum reverse current0.1 µA
Maximum reverse recovery time0.02 µs
Reverse test voltage25 V
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
