BDT60AF datasheet, PDF - EEWORLD Datasheet

BDT60AF: DescriptionTransistor,; CategoryDiscrete semiconductor The transistor; File Size291KB，7 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

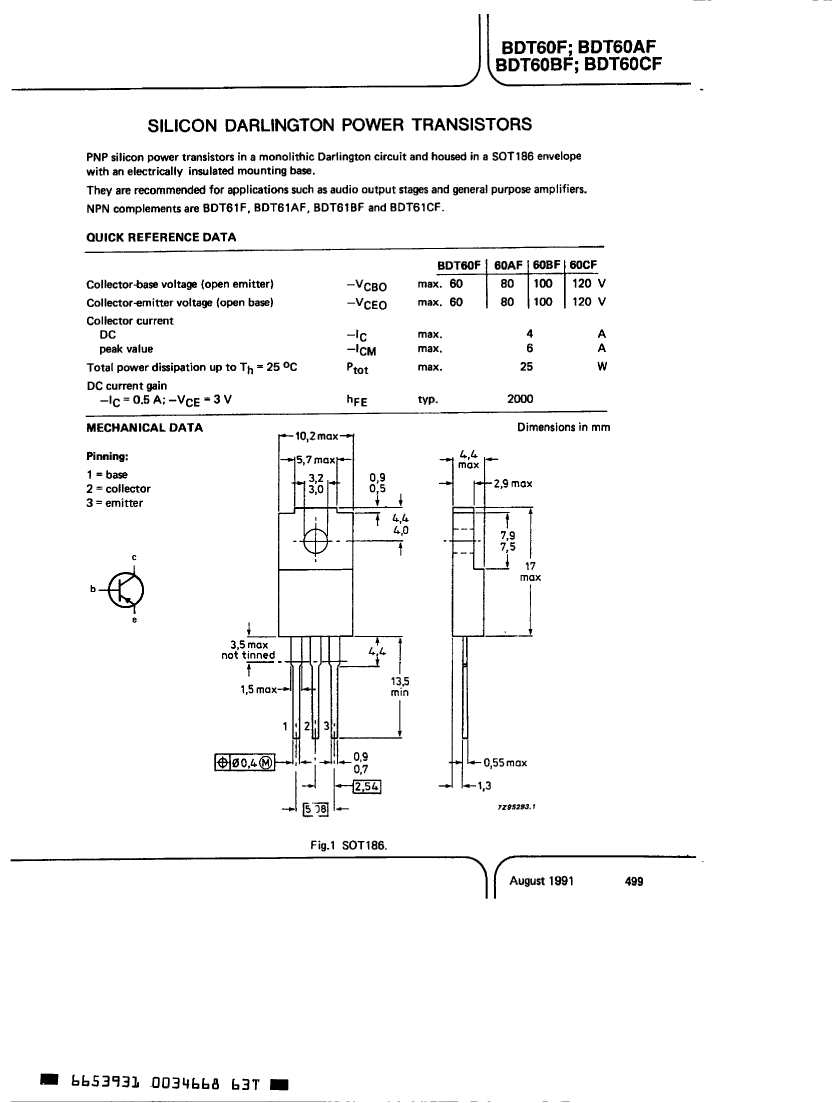

BDT60AF Overview

Transistor,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N

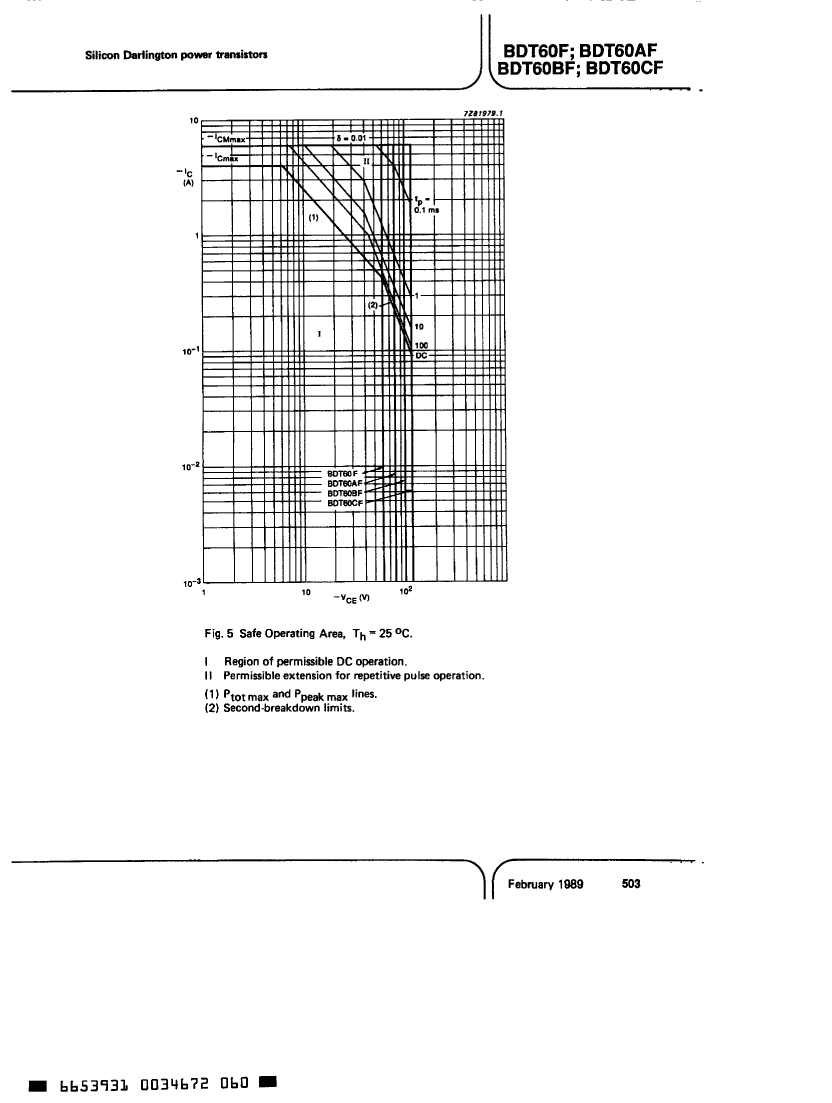

Maximum collector current (IC)	4 A

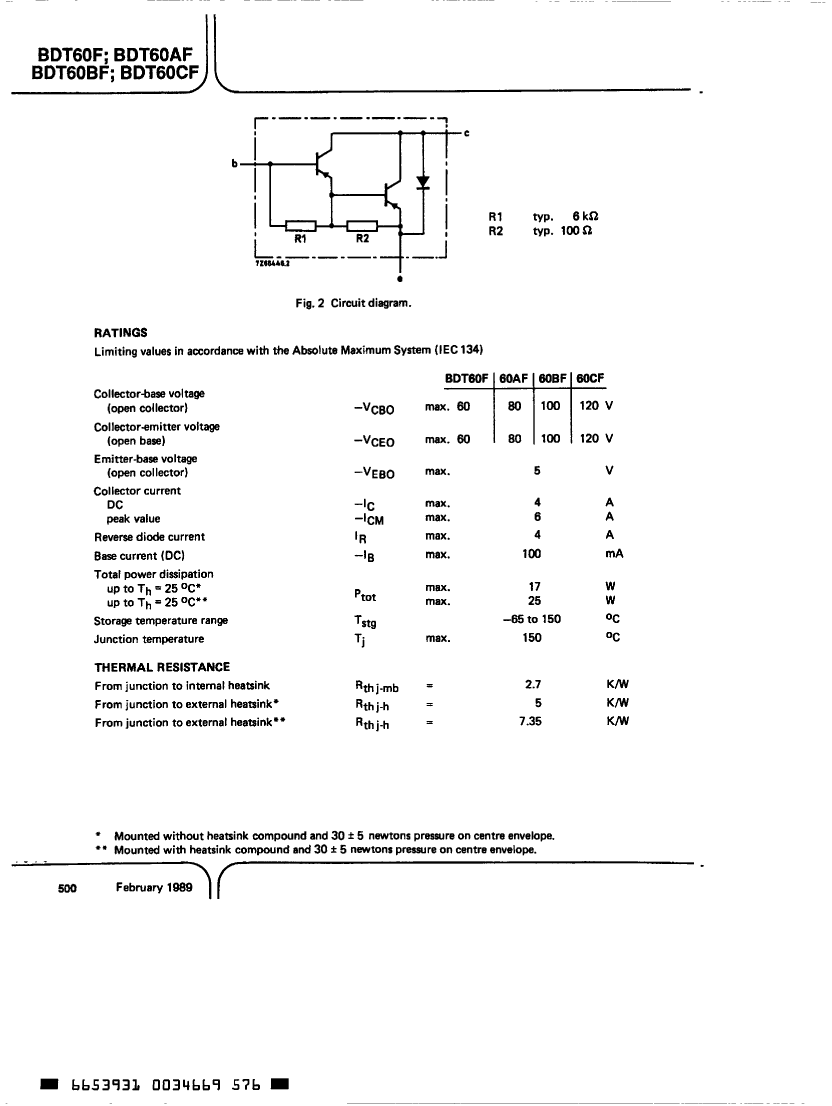

Configuration	DARLINGTON

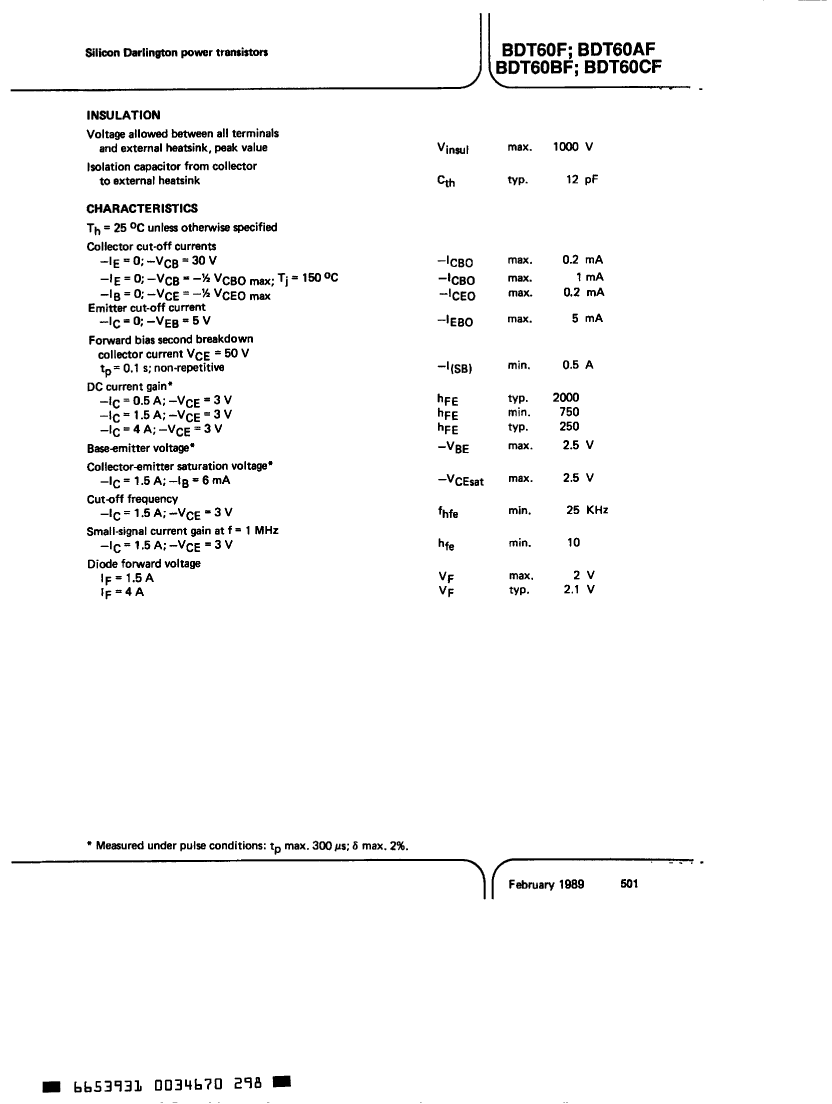

Minimum DC current gain (hFE)	750
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	17 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)

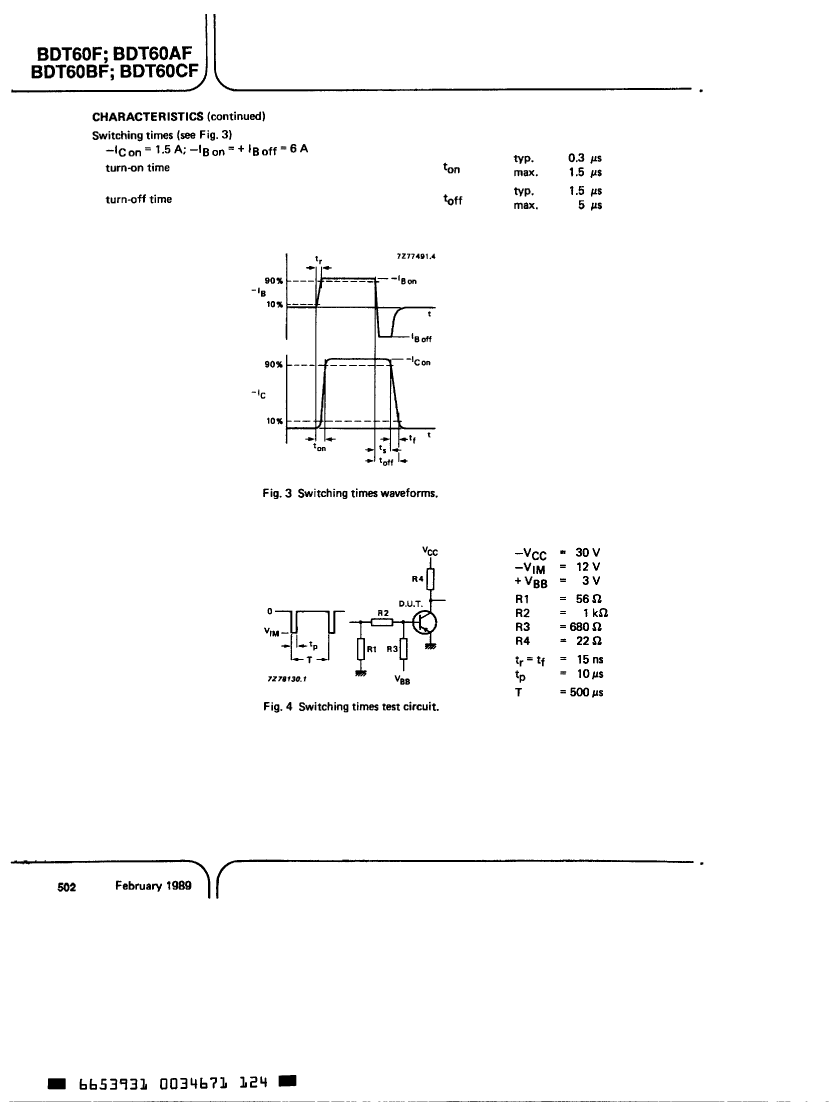

Nominal transition frequency (fT)	10 MHz
Base Number Matches	1

	BDT60AF	BDT60BF	BDT60CF
Description	Transistor,	Transistor,	Transistor,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknown	unknown	unknown
Maximum collector current (IC)	4 A	4 A	4 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	750	750	750
JESD-609 code	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP
Maximum power dissipation(Abs)	17 W	17 W	17 W
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	10 MHz	10 MHz	10 MHz
