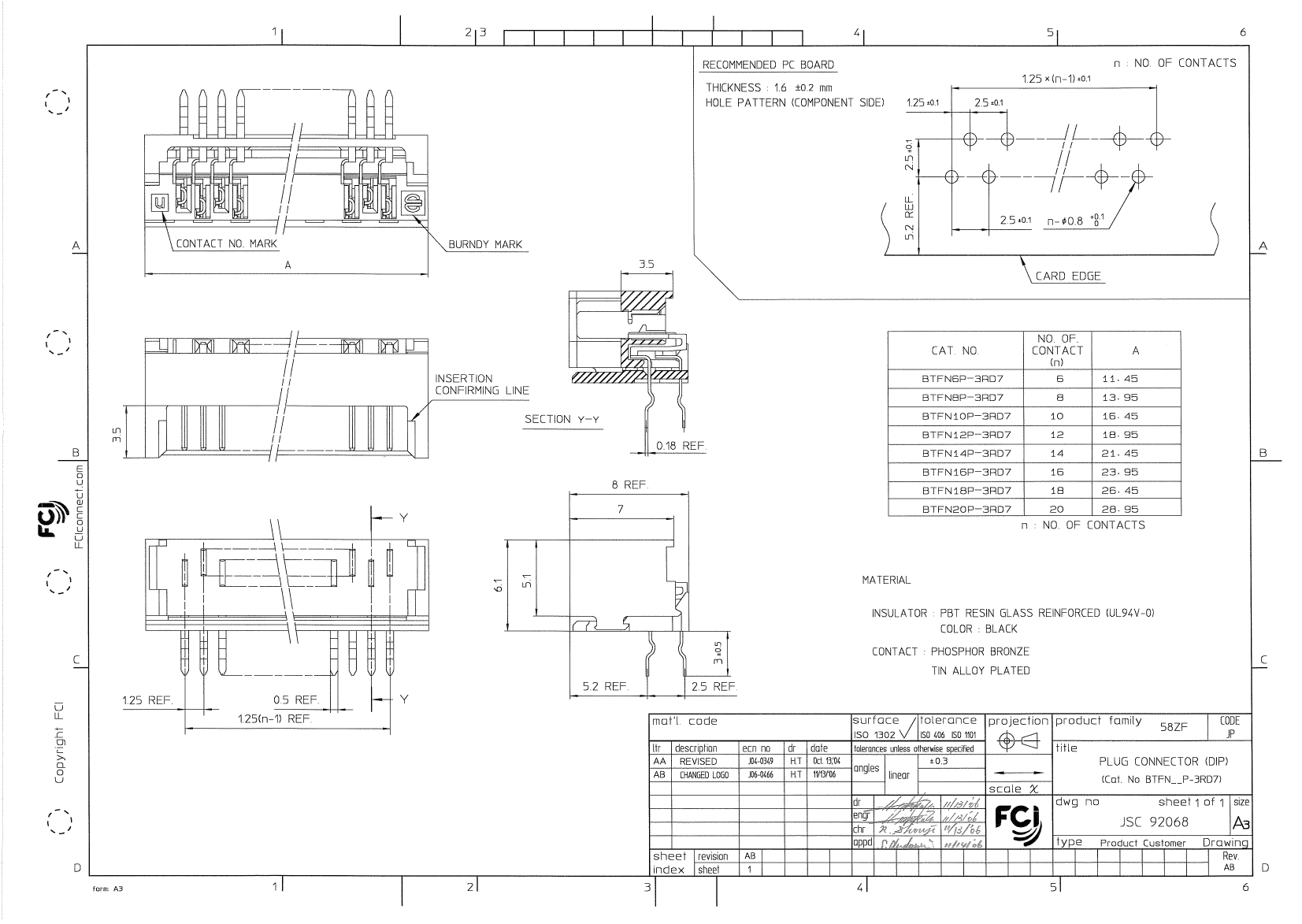

BTFN20P-3RD7: DescriptionDIP Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BTFN20P-3RD7 Overview

DIP Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug

BTFN20P-3RD7 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TRAY PACKAGING
body width	0.236 inch
subject depth	0.315 inch
body length	1.14 inch
Body/casing type	PLUG
Connector type	DIP CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BTFN20P
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:AB

STATUS:

Released

Printed: Jan 31, 2009

BTFN20P-3RD7 Related Products

	BTFN20P-3RD7	BTFN10P-3RD7	BTFN16P-3RD7	BTFN18P-3RD7	BTFN6P-3RD7	BTFN12P-3RD7	BTFN8P-3RD7	BTFN14P-3RD7
Description	DIP Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug	DIP Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Black Insulator, Plug
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N	N	N	N
Other features	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING	TRAY PACKAGING
body width	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
subject depth	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch
body length	1.14 inch	0.648 inch	0.943 inch	1.041 inch	0.451 inch	0.746 inch	0.549 inch	0.844 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BTFN20P	BTFN10P	BTFN16P	BTFN18P	BTFN6P	BTFN12P	BTFN8P	BTFN14P
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	20	10	16	18	6	12	8	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
