BTFN8S-3SHS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BTFN8S-3SHS

BTFN8S-3SHS: DescriptionDIP Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BTFN8S-3SHS Overview

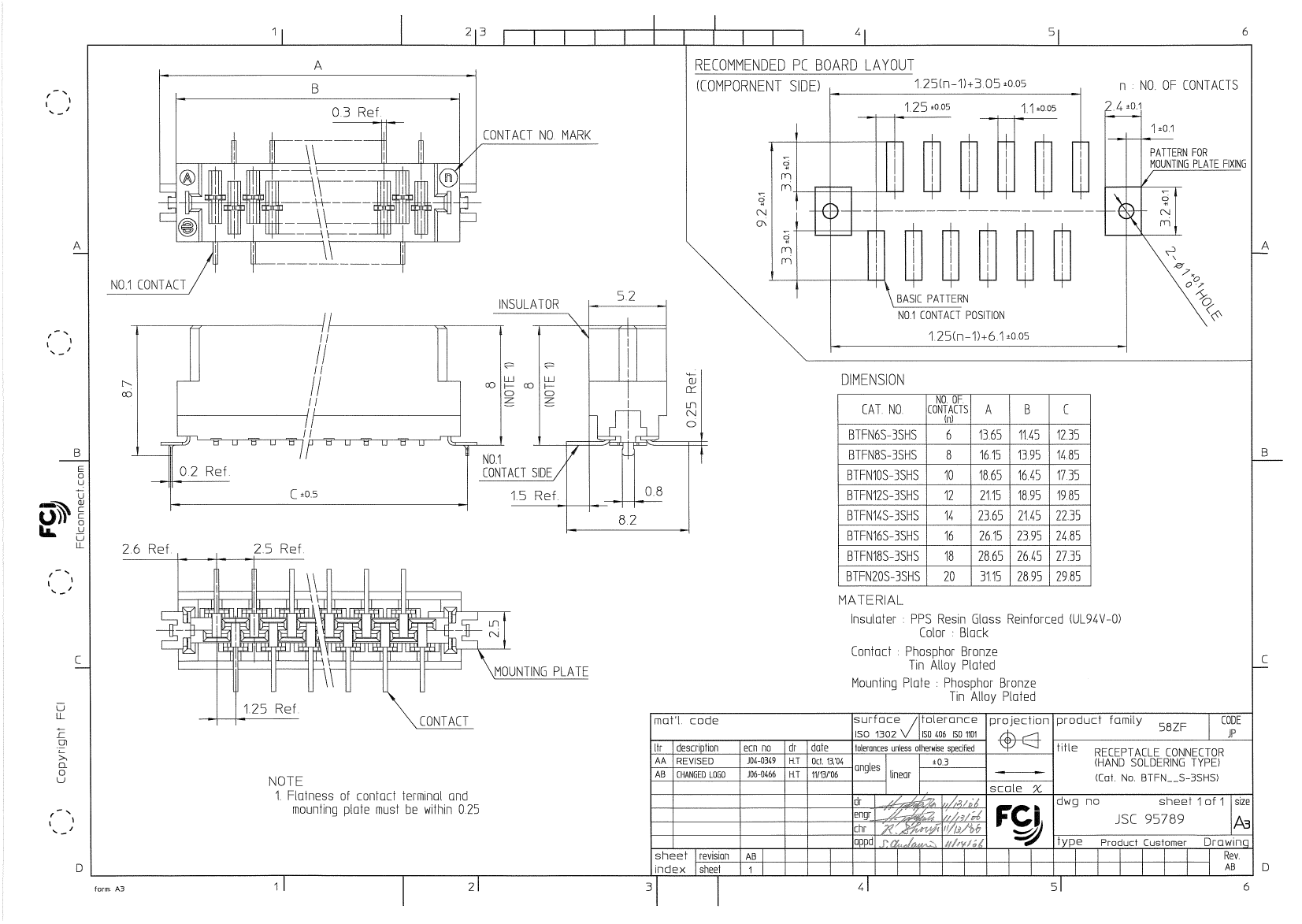

DIP Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle

BTFN8S-3SHS Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	DIP CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BTFN
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:AB

STATUS:

Released

Printed: Oct 22, 2010

BTFN8S-3SHS Related Products

	BTFN8S-3SHS	BTFN10S-3SHS	BTFN18S-3SHS	BTFN6S-3SHS	BTFN12S-3SHS	BTFN14S-3SHS	BTFN16S-3SHS	BTFN20S-3SHS
Description	DIP Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 10 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 18 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 12 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 14 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle	DIP Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Receptacle,
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant
Is Samacsys	N	N	N	N	N	N	N	N
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR	DIP CONNECTOR
Contact to complete cooperation	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BTFN	BTFN	BTFN	BTFN	BTFN	BTFN	BTFN	BTFN
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	10	18	6	12	14	16	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
