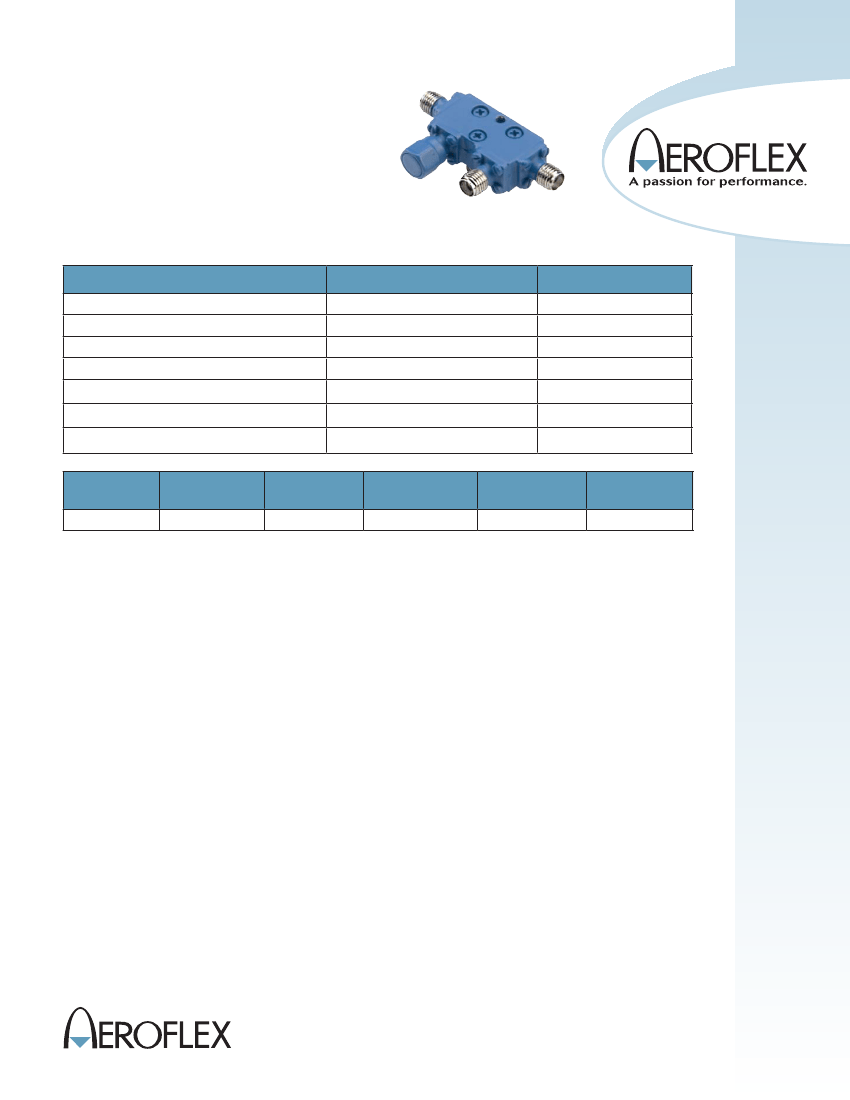

CA-87X
Directional Couplers
Specifications:
Parameter
Frequency Range (Min)
Frequency Flatness
Directivity (Min)
Input / Output VSWR (Max)
Loss Above Coupling (Max)
Peak Power (Max)
Avg. Power
Outline
(inches)
8
“A”
0.9
“B”
0.5
Specification
8.0 – 18.0
±0.70
14
1.45
0.55
2
20
“C”
-
“D”
-
Units
GHz
dB
dB
Ratio
dB
kW
Watts
“E”
0.45
Notes:
1.
Rugged 4 hole connector construction
insures superiority.
2. For all 30 dB couplers “B” dimension is 0.55
inches.
3. 50 Ohm termination is supplied on each unit
delivered. Power rating is 1 Watt at 25°C.
4. Coupling includes frequency flatness &
coupling measurement in reference to the
input port. Coupling is standard on these
units.
Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65 °C to +100 °C, 10 cycles
Hermetically-sealed switches are fine and gross leak
checked per MIL-STD-883, Method 1014.
Optional High-Rel screening available upon request.
Contact the factory to discuss your screening
requirements.
Mechanical Specifications:
Case Style:
Connectors:
CA Outline
SMA Female per MIL-C-39012
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Connector Control: Micro-D 21 Pin
Bias & Control Pins: ø0.02” x 0.15” long
Weight:
Mounting:
19g max
ø0.10” through holes
(4) places
SIGNAL & CONTROL SOLUTIONS
Revision Date: 12/10/2013
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs • ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS
CA-87X
Directional Couplers

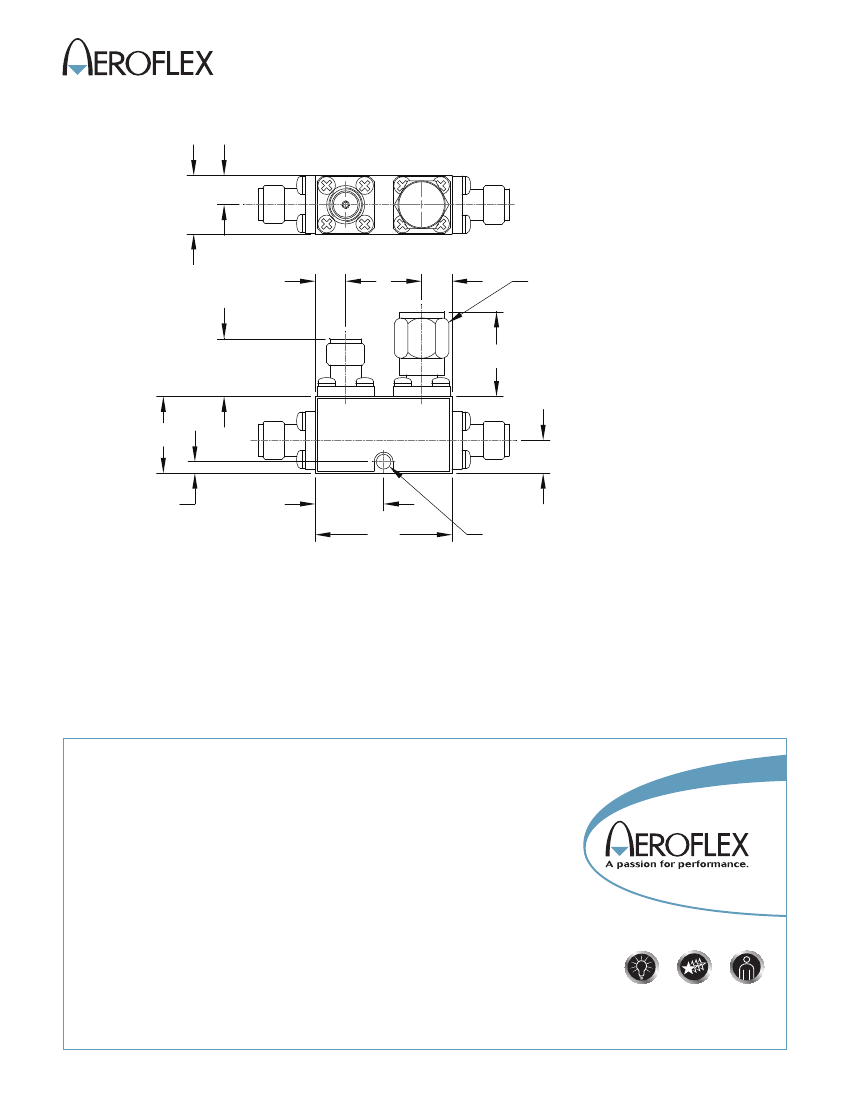

Outline Drawing:
.19
.38
.20
.20
TERMINATION
.38
3 PLS
.56 MAX
CPL
“B”
IN
OUT
.215
.075
“E”
“A”
.093 DIA THRU
MOUNTING HOLE
OUTLINE CASE STYLE CA
Part Number Ordering Information:
Example:
CA-87X:
6:
1:
2:
3:
CA-876
X in the part number represents coupling value
6 dB+/-1.0 dB
10 dB+/-1.2 dB
20 dB+/-1.2 dB
30 dB+/-1.2 dB
