LED15-24S05W-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LED15-24S05W-A

LED15-24S05W-A: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6; CategoryPower/power management The power supply circuit; File Size668KB，4 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

LED15-24S05W-A Overview

DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6

LED15-24S05W-A Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
Parts packaging code	MODULE
package instruction	MODULE-6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-N6
length	27.9 mm
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.5 V
Minimum output voltage	4.5 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	NO LEAD
Terminal location	DUAL
Maximum total power output	15 W
Fine-tuning/adjustable output	YES
width	23.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

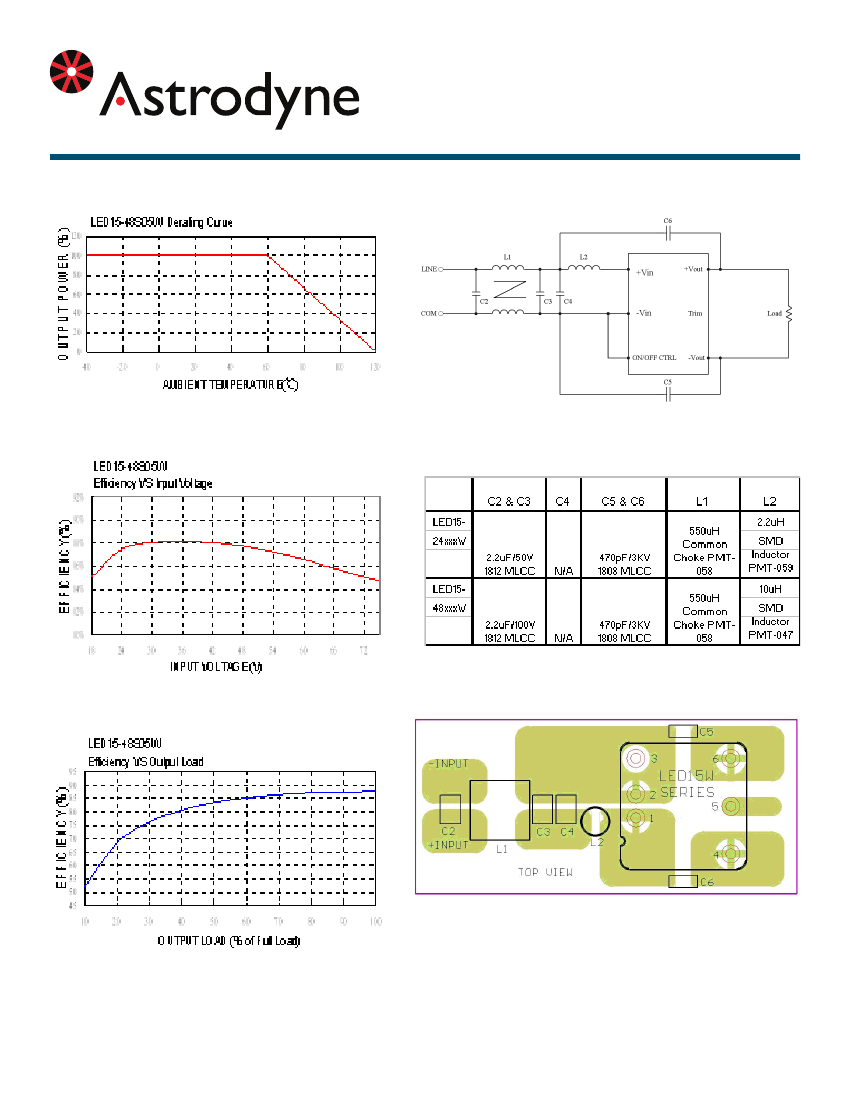

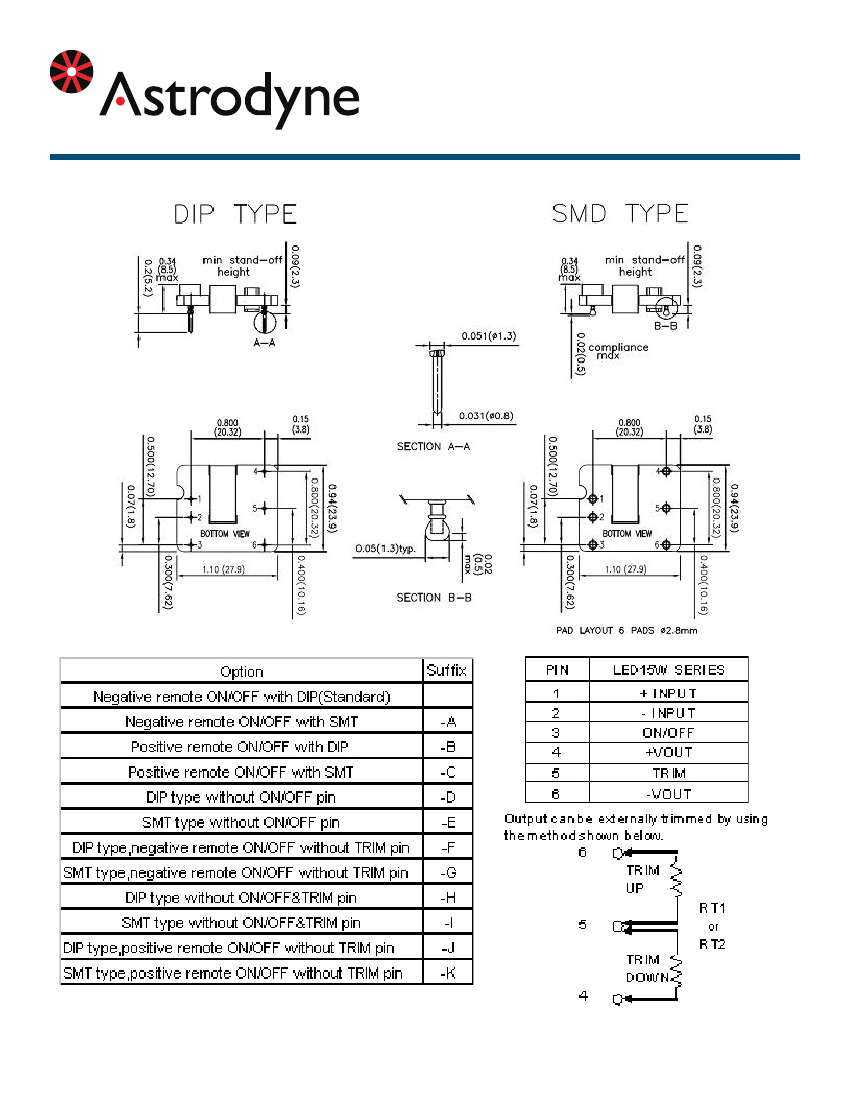

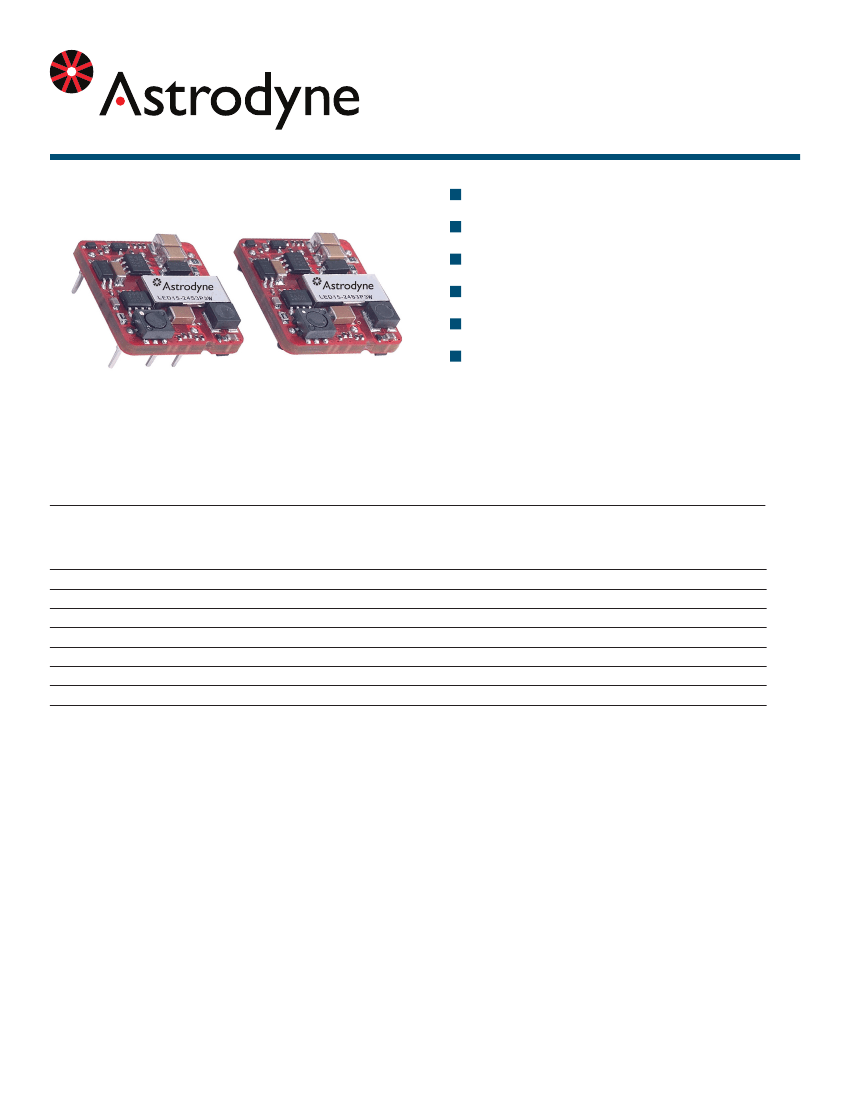

Is o la t ed a nd Re gu lated 1 5 Watt O pen Fram e DC/DC Conv erter s

LED15W

series

Wide 4 : 1 Input Range

High Efficiency

Regulated Outputs

2250VDC Isolation

Small Size and Low Profile

Standard Pinouts

Unit measures 1.1”W x 0.94”L x 0.335”H

Model Number

SINGLE OUTPUT

LED15-24S3P3W

LED15-48S3P3W

LED15-24S05W

LED15-48S05W

LED15-24S12W

LED15-48S12W

LED15-24S15W

LED15-48S15W

Output Voltage

Output Amps

Input Range Input mAmps (NL/FL)

Efficiency

Capacitive Load

3.3 VDC

5 VDC

12 VDC

15 VDC

1.3

9-36 VDC

18-75 VDC

9-36 VDC

18-75 VDC

9-36 VDC

18-75 VDC

9-36 VDC

18-75 VDC

50 / 688

40 / 340

60 / 763

40 / 377

15 / 803

15 / 392

15 / 772

15 / 377

84%

86%

85%

87%

1000uF max.

330uF max.

220uF max.

1000uF max.

330uF max.

220uF max.

SMT Mount versions available. Simply add a “-A” to the end of the Model Number (i.e.

LED15-24S05W-A).

Also, options exist for the removal of the

Trim Function and the reconfiguration of the Remote ON/OFF to Positive Logic (Negative Logic is standard). Please see the

Product Options Table

for Model Number information (suffixes).

WWW.ASTRODYNE.COM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PACIFIC: 886-2-26983458

LED15-24S05W-A Related Products

	LED15-24S05W-A	LED15-48S05W	LED15-48S3P3W	LED15-48S3P3W-A	LED15-48S05W-A	LED15-24S15W	LED15-24S15W-A	LED15-24S3P3W	LED15-24S3P3W-A	LED15-24S12W-A
Description	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6	DC-DC Regulated Power Supply Module, 1 Output, 15W, Hybrid, MODULE-6
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	MODULE-6	MODULE-6	MODULE-6	MODULE-6	MODULE-6	MODULE-6	MODULE-6	MODULE-6	MODULE-6	MODULE-6
Contacts	6	6	6	6	6	6	6	6	6	6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V	75 V	75 V	75 V	75 V	36 V	36 V	36 V	36 V	36 V
Minimum input voltage	9 V	18 V	18 V	18 V	18 V	9 V	9 V	9 V	9 V	9 V
Nominal input voltage	24 V	48 V	48 V	48 V	48 V	24 V	24 V	24 V	24 V	24 V
JESD-30 code	R-XDMA-N6	R-XDMA-T6	R-XDMA-T6	R-XDMA-N6	R-XDMA-N6	R-XDMA-T6	R-XDMA-N6	R-XDMA-T6	R-XDMA-N6	R-XDMA-N6
length	27.9 mm	27.9 mm	27.9 mm	27.9 mm	27.9 mm	27.9 mm	27.9 mm	27.9 mm	27.9 mm	27.9 mm
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6	6	6	6	6
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	5.5 V	5.5 V	3.63 V	3.63 V	5.5 V	16.5 V	16.5 V	3.63 V	3.63 V	13.2 V
Minimum output voltage	4.5 V	4.5 V	2.97 V	2.97 V	4.5 V	13.5 V	13.5 V	2.97 V	2.97 V	10.8 V
Nominal output voltage	5 V	5 V	3.3 V	3.3 V	5 V	15 V	15 V	3.3 V	3.3 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	15 W	15 W	15 W	15 W	15 W	15 W	15 W	15 W	15 W	15 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
