BAS70W: DescriptionSmall Signal Schottky Diode; Configuration: Single; VRRM Max (V): 70V; IAV Max (A): 0.07A; VFM Max (V): 1V; @ IF (A): 0.015A; IR Max (uA): 10uA; @VR (V): 70V; TRR Max (ns): 5ns; Pin: F2; Package: SOT-323; CategoryDiscrete semiconductor diode; File Size148KB，3 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

BAS70W Overview

Small Signal Schottky Diode; Configuration: Single; VRRM Max (V): 70V; IAV Max (A): 0.07A; VFM Max (V): 1V; @ IF (A): 0.015A; IR Max (uA): 10uA; @VR (V): 70V; TRR Max (ns): 5ns; Pin: F2; Package: SOT-323

BAS70W Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SOT-323
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.07 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	70 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

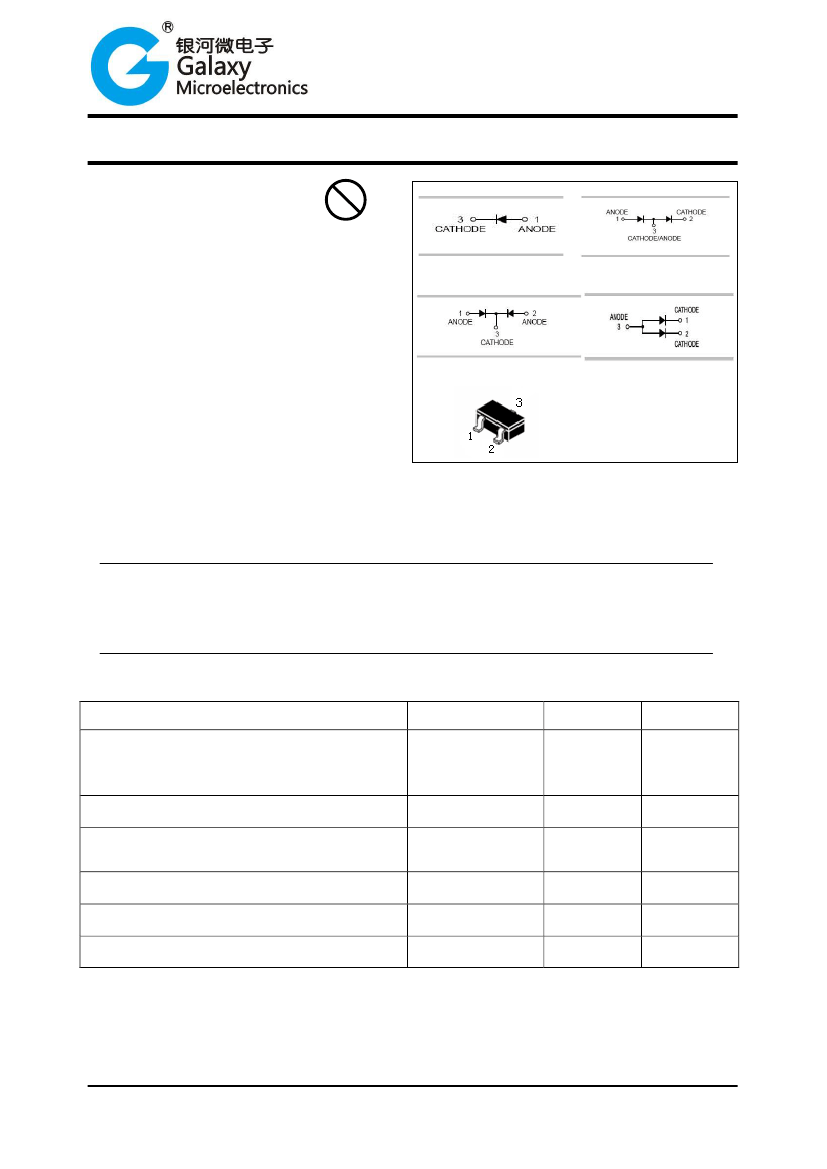

Production specification

Surface Mount Schottky Barrier Diode

FEATURES



Low Forward voltage drop.

High breakdown voltage.

Guard ring protected.

Low capacitance.

Very small SMD package.

BAS70W/-04/-05/-06

Pb

Lead-free

BAS70W

BAS70W-04

BAS70W-05

BAS70W-06

APPLICATIONS



For high speed switching applications.

SOT-323

ORDERING INFORMATION

Type No.

BAS70W

BAS70W-04

BAS70W-05

BAS70W-06

Marking

K73

K74

K75

K76

Package Code

SOT-323

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Parameter

Repetitive Peak reverse voltage

Working peak reverse voltage

Diode reverse voltage

Forward continuous Current

Non-Repetitive peak forward surge Current

@t=1μs

Power Dissipation

Operating Junction Temperature Range

Storage temperature range

Symbol

V

RRM

V

RWM

V

R

I

F

I

FS

P

d

T

j

T

stg

Limits

70

100

200

-55 to +125

-65 to +150

Unit

V

mA

mW

℃

F018

Rev.A

www.gmesemi.com

1
