GMM2739233ETG-75 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> GMM2739233ETG-75

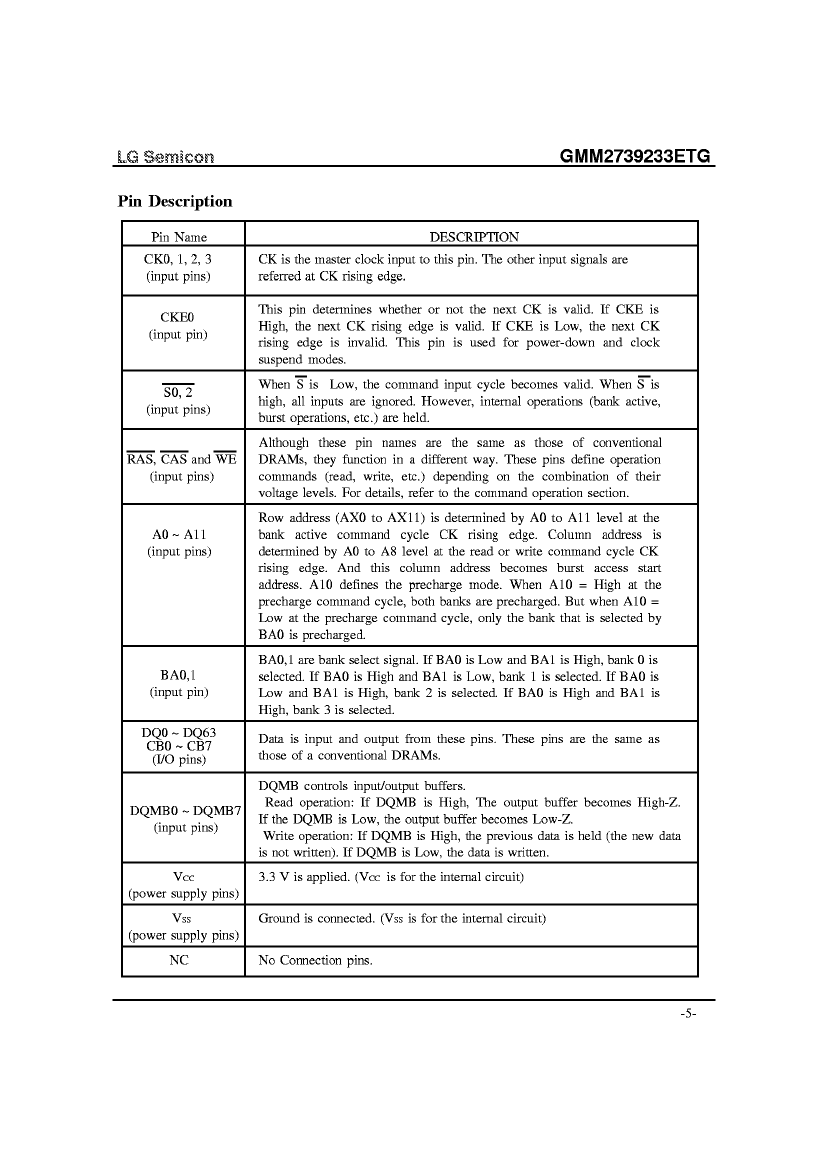

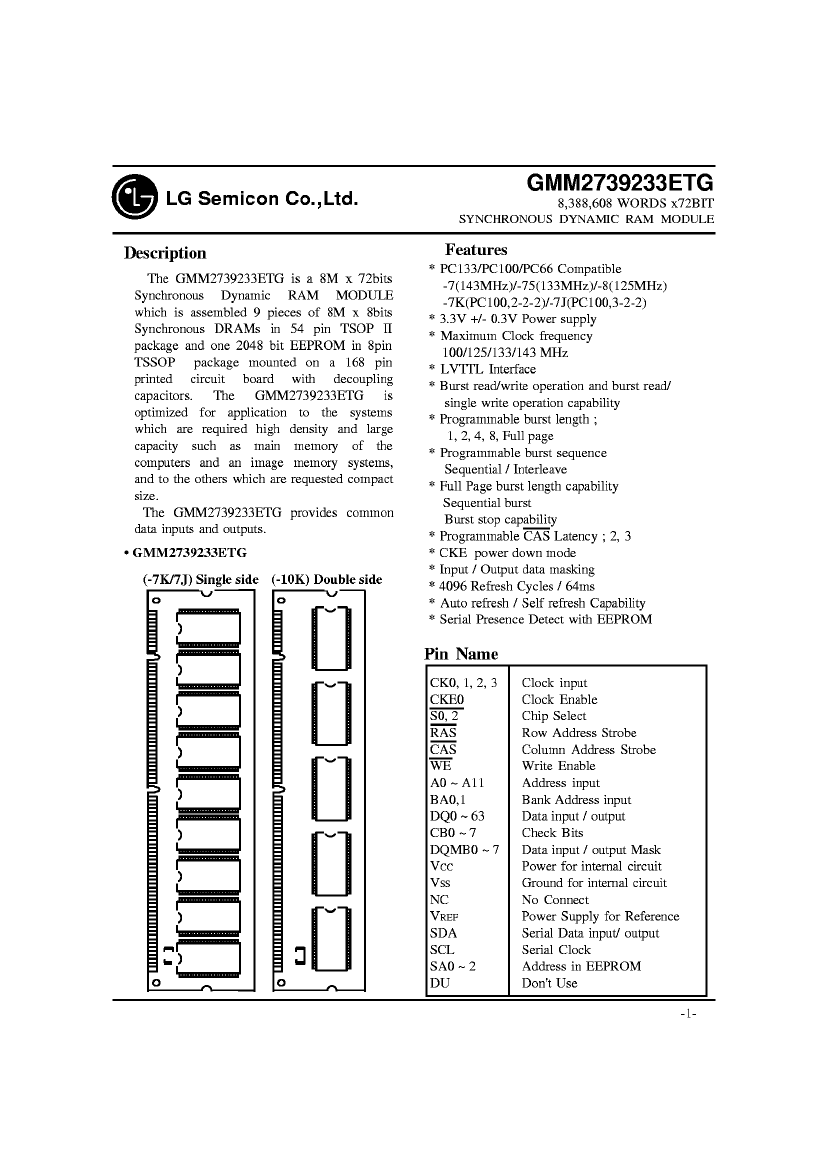

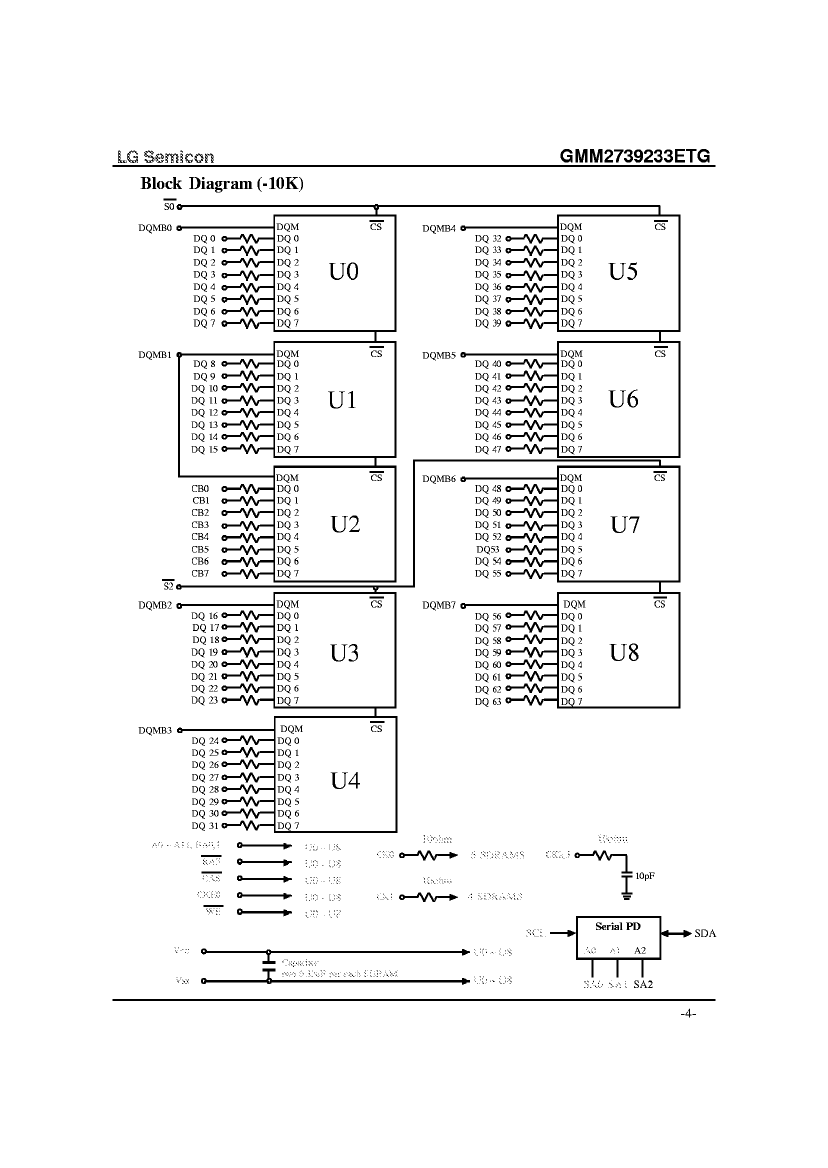

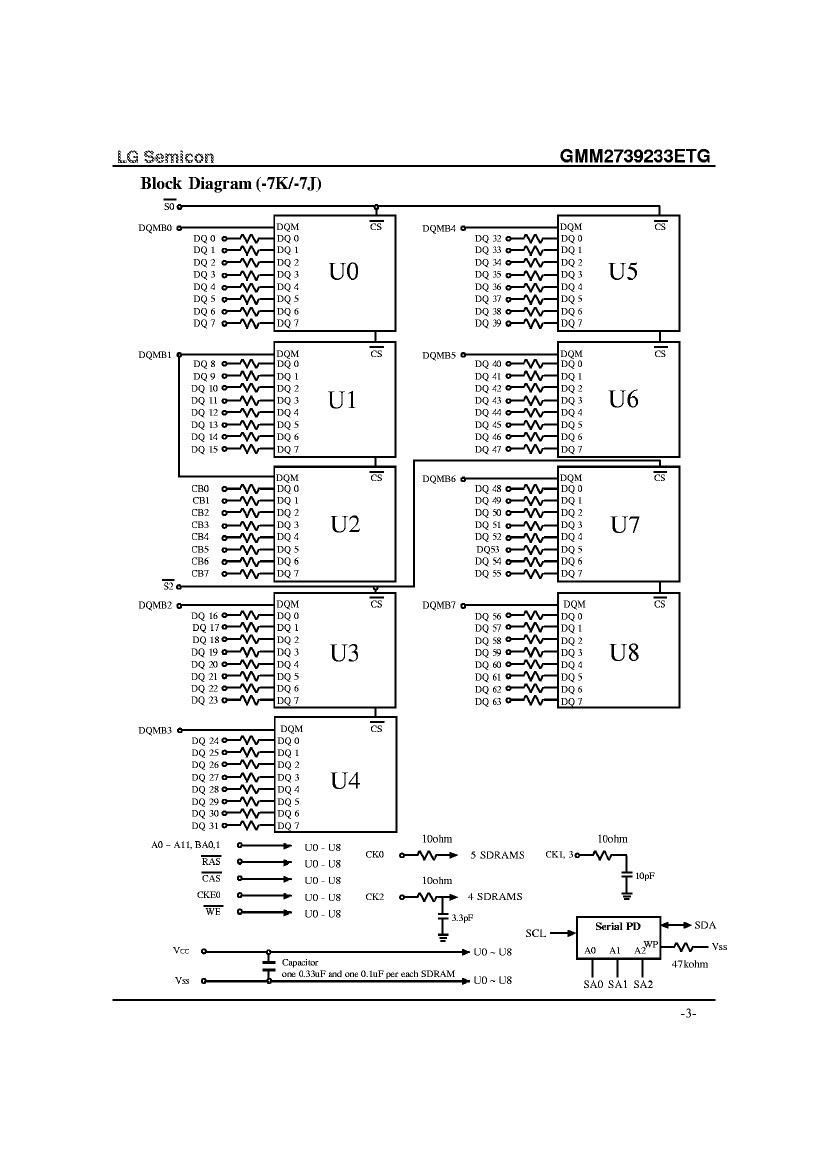

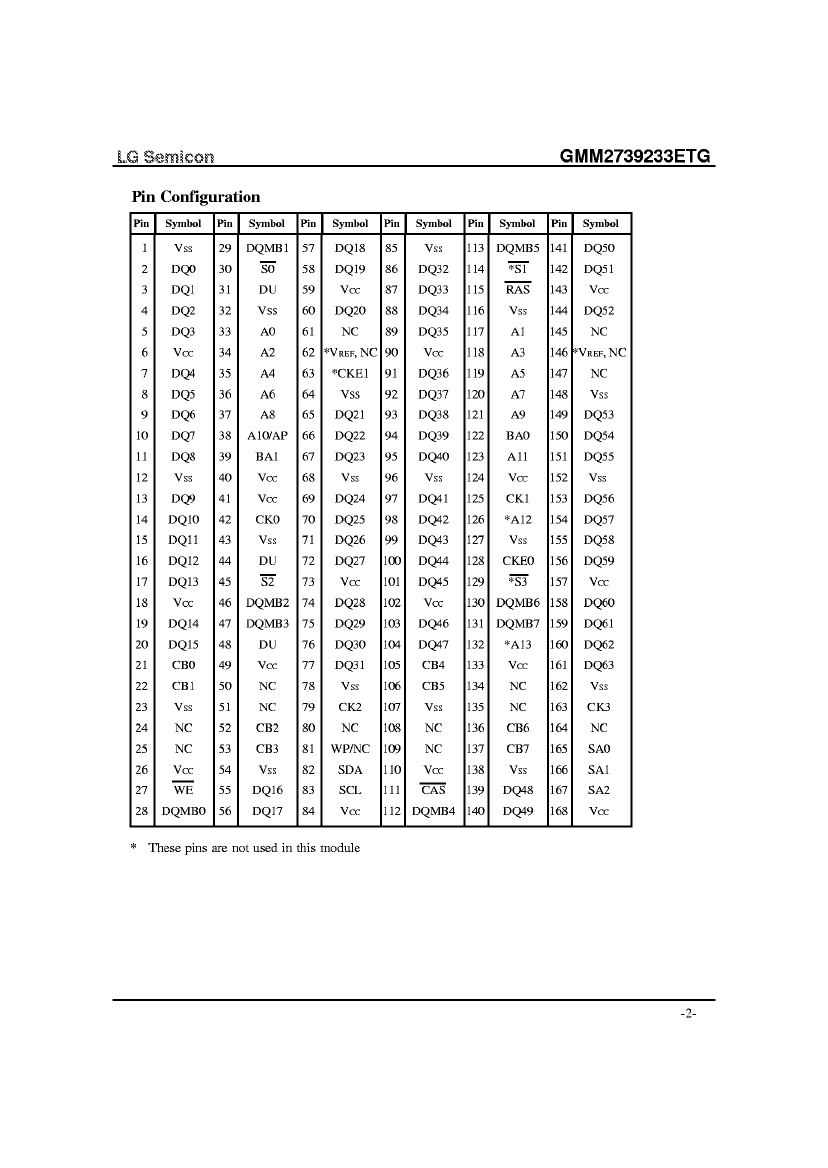

Preview

GMM2739233ETG-75: DescriptionSynchronous DRAM Module, 8MX72, 5.4ns, CMOS, DIMM-168; Categorystorage storage; File Size266KB，14 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GMM2739233ETG-75 Overview

Synchronous DRAM Module, 8MX72, 5.4ns, CMOS, DIMM-168

GMM2739233ETG-75 Parametric

Parameter Name	Attribute value
Maker	LG Semicon Co., Ltd.
package instruction	DIMM, DIMM168
Reach Compliance Code	unknown
Is Samacsys	N
access mode	FOUR BANK PAGE BURST
Maximum access time	5.4 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	133 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	603979776 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.015 A
Maximum slew rate	1.3 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

GMM2739233ETG-75 Related Products

	GMM2739233ETG-75	GMM2739233ETG-7	GMM2739233ETG-7K	GMM2739233ETG-7J	GMM2739233ETG-8
Description	Synchronous DRAM Module, 8MX72, 5.4ns, CMOS, DIMM-168	Synchronous DRAM Module, 8MX72, 5.4ns, CMOS, DIMM-168	Synchronous DRAM Module, 8MX72, 6ns, CMOS, DIMM-168	Synchronous DRAM Module, 8MX72, 6ns, CMOS, DIMM-168	Synchronous DRAM Module, 8MX72, 6ns, CMOS, DIMM-168
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168	DIMM, DIMM168
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	5.4 ns	5.4 ns	6 ns	6 ns	6 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	133 MHz	143 MHz	100 MHz	100 MHz	125 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168	R-XDMA-N168
memory density	603979776 bit	603979776 bit	603979776 bit	603979776 bit	603979776 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	72	72	72	72	72
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	168	168	168	168	168
word count	8388608 words	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000	8000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8MX72	8MX72	8MX72	8MX72	8MX72
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168	DIMM168	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096
self refresh	YES	YES	YES	YES	YES
Maximum standby current	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Maximum slew rate	1.3 mA	1.3 mA	1 mA	1 mA	1.3 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Is Samacsys	N	N	N	N	-
Base Number Matches	1	1	1	1	-
