Pull-reset Safety Limit Switch
D4N-@R
CSM_D4N-_R_DS_E_4_1
A Series of Pull-reset Models Now
Available
• Lineup includes three contact models with 2NC/1NO and 3NC
contact forms in addition to the previous contact forms 1NC/
1NO and 2NC.
• M12-connector models are available, saving on labor and
simplifying replacement.
• Standardized gold-clad contacts provide high contact reliability.
Can be used with both standard loads and microloads.
• Conforms to EN115, EN81-1 and EN81-2.
• Certified standards: UL, EN (TÜV), and CCC
Be sure to read the
“Safety Precautions”
on page 12.
Note:
Contact your sales representative for details on models
with safety standard certification.
Model Number Structure
Model Number Legend
D4N-@@@@R
1 2
3
3. Actuator
20: Roller lever (resin lever, resin roller)
2G:Adjustable roller lever, form lock (metal lever, resin roller)
2H:Adjustable roller lever, form lock (metal lever, rubber roller)
31: Top plunger
32: Top roller plunger
62: One-way roller arm lever (horizontal)
72: One-way roller arm lever (vertical)
1. Conduit size
1: Pg13.5 (1-conduit)
2: G1/2 (1-conduit)
4: M20 (1-conduit)
6: G1/2 (2-conduit)
8: M20 (2-conduit)
9: M12 connector (1-conduit)
2. Built-in Switch
A: 1NC/1NO (slow-action)
B: 2NC (slow-action)
C: 2NC/1NO (slow-action)
D: 3NC (slow-action)
1
D4N-@R
Ordering Information
List of Models
Safety Limit Switches (with Direct Opening Mechanism)
Consult with your OMRON representative when ordering any models that are not listed in this table.
Built-in switch mechanism
Actuator
Conduit size
1NC/1NO
(Slow-action)
Model
Pg13.5
Roller lever
(resin lever, resin roller)
1-conduit
G1/2
M20
M12 connector
2-conduit
G1/2
M20
Pg13.5
Adjustable roller lever,
form lock
(metal lever, resin roller)
1-conduit
G1/2
M20
M12 connector
2-conduit
Adjustable roller lever,
form lock
(metal lever, rubber roller) 1-conduit
G1/2
M20
Pg13.5
G1/2
M20
M12 connector
2-conduit
G1/2
M20
Pg13.5
Plunger
1-conduit
G1/2
M20
M12 connector
2-conduit
G1/2
M20
Pg13.5
Roller plunger
1-conduit
G1/2
M20
M12 connector
2-conduit
G1/2
M20
Pg13.5
One-way roller arm lever
(horizontal)
1-conduit
G1/2
M20
M12 connector
2-conduit
G1/2
M20
Pg13.5
One-way roller arm lever
(vertical)
1-conduit
G1/2
M20
M12 connector
2-conduit
G1/2
M20
D4N-1A20R
D4N-2A20R
D4N-4A20R
D4N-9A20R
D4N-6A20R
D4N-8A20R
D4N-1A2GR
D4N-2A2GR
D4N-4A2GR
D4N-9A2GR
D4N-6A2GR
D4N-8A2GR
D4N-1A2HR
D4N-2A2HR
D4N-4A2HR
D4N-9A2HR
D4N-6A2HR
D4N-8A2HR
D4N-1A31R
D4N-2A31R
D4N-4A31R
D4N-9A31R
D4N-6A31R
D4N-8A31R
D4N-1A32R
D4N-2A32R
D4N-4A32R
D4N-9A32R
D4N-6A32R
D4N-8A32R
D4N-1A62R
D4N-2A62R
D4N-4A62R
D4N-9A62R
D4N-6A62R
D4N-8A62R
D4N-1A72R
D4N-2A72R
D4N-4A72R
D4N-9A72R
D4N-6A72R
D4N-8A72R
Direct
opening
2NC
(Slow-action)
Model
D4N-1B20R
D4N-2B20R
D4N-4B20R
D4N-9B20R
D4N-6B20R
D4N-8B20R
D4N-1B2GR
D4N-2B2GR
D4N-4B2GR
D4N-9B2GR
D4N-6B2GR
D4N-8B2GR
D4N-1B2HR
D4N-2B2HR
D4N-4B2HR
D4N-9B2HR
D4N-6B2HR
D4N-8B2HR
D4N-1B31R
D4N-2B31R
D4N-4B31R
D4N-9B31R
D4N-6B31R
D4N-8B31R
D4N-1B32R
D4N-2B32R
D4N-4B32R
D4N-9B32R
D4N-6B32R
D4N-8B32R
D4N-1B62R
D4N-2B62R
D4N-4B62R
D4N-9B62R
D4N-6B62R
D4N-8B62R
D4N-1B72R
D4N-2B72R
D4N-4B72R
D4N-9B72R
D4N-6B72R
D4N-8B72R
Direct
opening
2NC/1NO
(Slow-action)
Model
D4N-1C20R
D4N-2C20R
D4N-4C20R
---
D4N-6C20R
D4N-8C20R
D4N-1C2GR
D4N-2C2GR
D4N-4C2GR
---
D4N-6C2GR
D4N-8C2GR
D4N-1C2HR
D4N-2C2HR
D4N-4C2HR
---
D4N-6C2HR
D4N-8C2HR
D4N-1C31R
D4N-2C31R
D4N-4C31R
---
D4N-6C31R
D4N-8C31R
D4N-1C32R
D4N-2C32R
D4N-4C32R
---
D4N-6C32R
D4N-8C32R
D4N-1C62R
D4N-2C62R
D4N-4C62R
---
D4N-6C62R
D4N-8C62R
D4N-1C72R
D4N-2C72R
D4N-4C72R
---
D4N-6C72R
D4N-8C72R
Direct
opening
3NC
(Slow-action)
Model
D4N-1D20R
D4N-2D20R
D4N-4D20R
---
D4N-6D20R
D4N-8D20R
D4N-1D2GR
D4N-2D2GR
D4N-4D2GR
---
D4N-6D2GR
D4N-8D2GR
D4N-1D2HR
D4N-2D2HR
D4N-4D2HR
---
D4N-6D2HR
D4N-8D2HR
D4N-1D31R
D4N-2D31R
D4N-4D31R
---
D4N-6D31R
D4N-8D31R
D4N-1D32R
D4N-2D32R
D4N-4D32R
---
D4N-6D32R
D4N-8D32R
D4N-1D62R
D4N-2D62R
D4N-4D62R
---
D4N-6D62R
D4N-8D62R
D4N-1D72R
D4N-2D72R
D4N-4D72R
---
D4N-6D72R
D4N-8D72R
Direct
opening
2
D4N-@R
Specifications
Standards and EC Directives
Conforms to the following EC Directives:
•
•
•
•
•
•
Machinery Directive
Low Voltage Directive
EN50047
EN60204-1
EN1088
GS-ET-15
Certified Standard Ratings
TÜV (EN60947-5-1), CCC (GB14048.5)
Item
Utilization
category
3A
AC-15
DC-13
0.27 A
250 V
Rated operating current (I
e
)
Rated operating voltage (U
e
)
240 V
Certified Standards
Certification body
TÜV SÜD
UL
*2
CQC (CCC)
*3
Standard
EN60947-5-1
(certified direct opening)
GB14048.5
*1
File No.
Note:
Use a 10 A fuse type
gI
or
gG
that conforms to IEC60269 as a
short-circuit protection device. This fuse is not built into the
Switch.
UL/CSA (UL508, CSA C22.2 No. 14)
A300
Rated
voltage
120 VAC
240 VAC
Carry current
10 A
Current (A)
Make
60
30
Break
6
3
Volt-amperes (VA)
Make
7,200
Break
720
UL508, CSA C22.2 No.14 E76675
2004010305105973
*1.
Consult your OMRON representative for details.
*2.
Certification for CSA C22.2 No. 14 is authorized by the UL mark.
*3.
Ask your OMRON representative for information on certified
models.
Q300
Rated
voltage
125 VDC
250 VDC
Carry current
2.5 A
Current (A)
Make
0.55
0.27
Break
0.55
0.27
Volt-amperes (VA)
Make
69
Break
69
3
D4N-@R
Characteristics
Degree of protection
*1
Mechanical
Durability
*2
Operating speed
Operating frequency
Contact resistance
Minimum applicable load
*4
Rated insulation voltage (U
i
)
Rated frequency
Protection against electric shock
Pollution degree (operating environment)
Between terminals of
same polarity
Impulse withstand
voltage
(EN60947-5-1)
Between terminals of
different polarity
Electrical
IP67 (EN60947-5-1)
1,000,000 operations min.
500,000 operations min. (3 A resistive load at 250 VAC)
*3
300,000 operations min. (10 A resistive load at 250 VAC)
1 to 500 mm/s (D4N-1A20R)
30 operations/minute max.
25 mΩ max.
1 mA resistive load at 5 VDC (N-level reference value)
300 V
50/60 Hz
Class II (double insulation)
3 (EN60947-5-1)
2.5 kV
4 kV
Between each terminal
and non-current carrying
6 kV
metallic parts
100 MΩ min.
2
×
2 mm min.
Malfunction
Destruction
Malfunction
10 to 55 Hz, 0.75 mm single amplitude
1,000 m/s
2
300 m/s
2
100 A (EN60947-5-1)
10 A (EN60947-5-1)
−30
to 70°C (with no icing)
95% max.
Approx. 92 g (D4N-1A20R)
Insulation resistance
Contact gap
Vibration resistance
Shock resistance
Conditional short-circuit current
Conventional free air thermal current (I
th
)
Ambient operating temperature
Ambient operating humidity
Weight
Note: 1.
The above values are initial values.
2.
Once a contact has been used to switch a standard load, it cannot be used for a load of a smaller capacity.
Doing so may result in roughening of the contact surface and contact reliability may be lost.
*1.
The degree of protection is tested using the method specified by the standard (EN60947-5-1). Confirm that sealing properties are sufficient for
the operating conditions and environment beforehand. Although the switch box is protected from dust or water penetration, do not use the
D4N-@R in places where foreign material such as dust, dirt, oil, water, or chemicals may penetrate through the head. Otherwise, accelerated
wear, Switch damage or malfunctioning may occur.
*2.
The durability is for an ambient temperature of 5 to 35°C and an ambient humidity of 40% to 70%. For more details, consult your
OMRON representative.
*3.
Do not pass the 3 A, 250 VAC load through more than 2 circuits.
*4.
This value will vary with the switching frequency, environment, and reliability level. Confirm that correct operation is possible with the actual
load beforehand.
4
D4N-@R

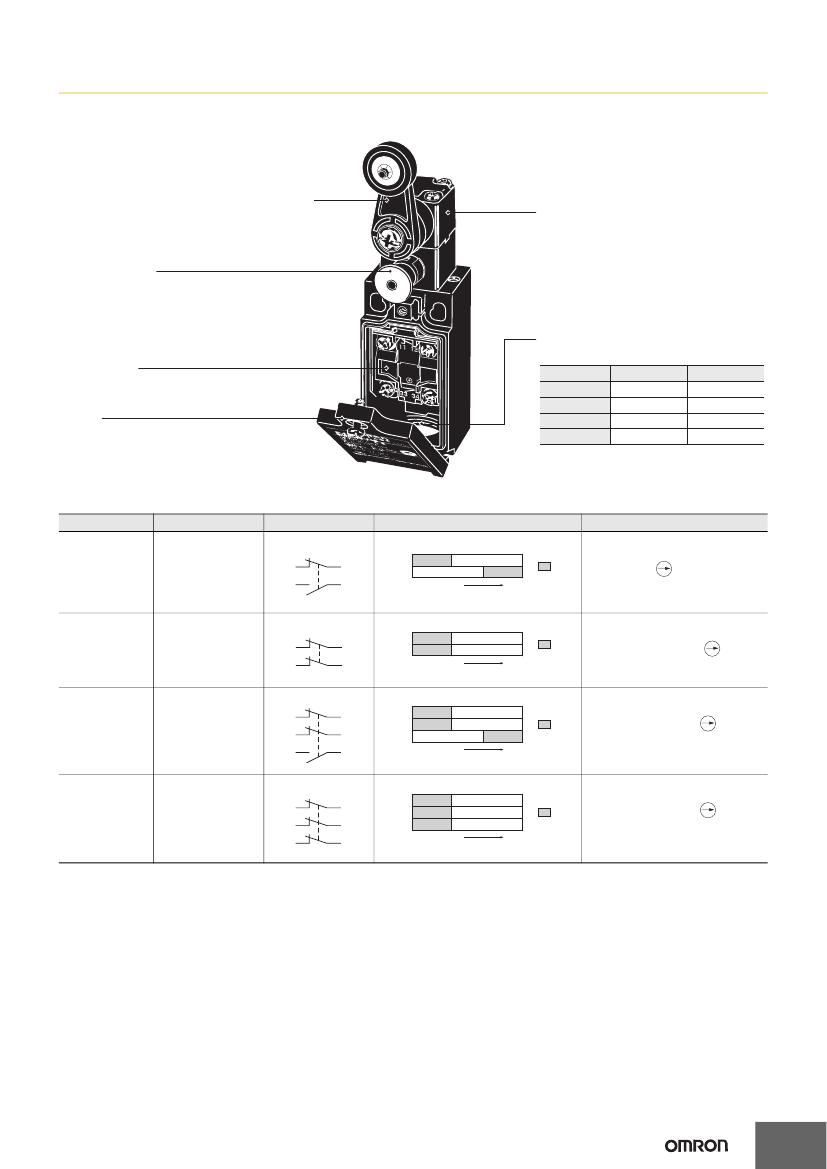

Structure and Nomenclature
Structure
Safety-oriented Lever Setting (Form lock mechanism)
Grooves
which
engage the lever are cut in the lever and
rotary shaft to prevent the lever from slipping against the
rotary shaft. The actuator locks (self-holding)
when
it moves
to the lock position.
Reset Head (Blue)
The direction of the reset head can
be
adjusted to any of
the four directions.
Head
The direction of the Switch Head can
be
adjusted to any of the four directions, except for
Switches
with
Roller Plungers,
which
can
be
adjusted to either of two directions differing
by
90°C.
Conduit
A
wide variety
of conduits is available.
Built-in Switch
The
built-in
switch has a direct opening mechanism that
forcibly separates the
NC
contact even
when
there is
contact deposit.
Cover
The cover,
with
a hinge on its lower part, can
be
opened
by
removing the screw of the cover,
which
ensures ease
of maintenance and
wiring.
Size
Pg13.5
G1/2
M20
Box
1-conduit model 2-conduit model
Yes
Yes
Yes
Yes
---
Yes
Yes
---
M12 connector
Note:
M12 connector types are not available for
Switches
with
three contacts.
Contact Form
Model
Contact
Contact form
Zb
Operating pattern
Remarks
D4N-@A@R
1NC/1NO
11
33
12
34
11-12
33-34
Stroke
ON
Only
NC
contacts 11-12 have a
certified direct opening
mechanism.
The terminals 11-12 and 33-34
can
be used
as
unlike
poles.
Only
NC
contacts 11-12 and
31-32 have a certified direct
opening mechanism.
The terminals 11-12 and 31-32
can
be used
as
unlike
poles.
Only
NC
contacts 11-12 and
21-22 have a certified direct
opening mechanism.
The terminals 11-12, 21-22, and
33-34 can
be used
as
unlike
poles.
Only
NC
contacts 11-12, 21-22,
and 31-32 have a certified direct
opening mechanism.
The terminals 11-12, 21-22, and
31-32 can
be used
as
unlike
poles.
Zb
D4N-@B@R
2NC
11
31
12
32
11-12
31-32
Stroke
ON
Zb
11
12
22
34
D4N-@C@R
2NC/1NO
21
33
11-12
21-22
33-34
Stroke
ON
Zb
11
12
22
32
D4N-@D@R
3NC
21
31
11-12
21-22
31-32
Stroke
ON
5
