MC34085BDWR2

Description
Operational Amplifier, 4 Func, 14000uV Offset-Max, BIPolar, PDSO16, PLASTIC, SO-16
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size1MB,50 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

MC34085BDWR2 Overview

Operational Amplifier, 4 Func, 14000uV Offset-Max, BIPolar, PDSO16, PLASTIC, SO-16

MC34085BDWR2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionPLASTIC, SO-16
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.004 µA
Maximum bias current (IIB) at 25C0.0002 µA
Minimum Common Mode Rejection Ratio70 dB
Nominal Common Mode Rejection Ratio90 dB
frequency compensationYES (AVCL>=2)
Maximum input offset voltage14000 µV
JESD-30 codeR-PDSO-G16
JESD-609 codee0
length10.3 mm
low-biasYES
low-dissonanceNO
Negative supply voltage upper limit-22 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions4
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP16,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Certification statusNot Qualified
Maximum seat height2.65 mm
minimum slew rate20 V/us
Nominal slew rate25 V/us
Maximum slew rate13 mA
Supply voltage upper limit22 V
Nominal supply voltage (Vsup)15 V
surface mountYES
technologyBIPOLAR
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Nominal Uniform Gain Bandwidth16000 kHz
Minimum voltage gain15000
width7.5 mm
Base Number Matches1
t
High Slew Rate, Wide
Bandwidth, JFET Input
Operational Amplifiers
These devices are a new generation of high speed JFET input monolithic
operational amplifiers. Innovative design concepts along with JFET
technology provide wide gain bandwidth product and high slew rate.
Well–matched JFET input devices and advanced trim techniques ensure low
input offset errors and bias currents. The all NPN output stage features large
output voltage swing, no deadband crossover distortion, high capacitive
drive capability, excellent phase and gain margins, low open loop output
impedance, and symmetrical source/sink AC frequency response.
This series of devices is available in fully compensated or
decompensated (AVCL
≤2)
and is specified over a commercial temperature
range. They are pin compatible with existing Industry standard operational
amplifiers, and allow the designer to easily upgrade the performance of
existing designs.
Wide Gain Bandwidth: 8.0 MHz for Fully Compensated Devices
Wide Gain Bandwidth:
16 MHz for Decompensated Devices
High Slew Rate: 25 V/µs for Fully Compensated Devices
High Slew Rate:
50 V/µs for Decompensated Devices
High Input Impedance: 1012
MC34080
thru
MC34085

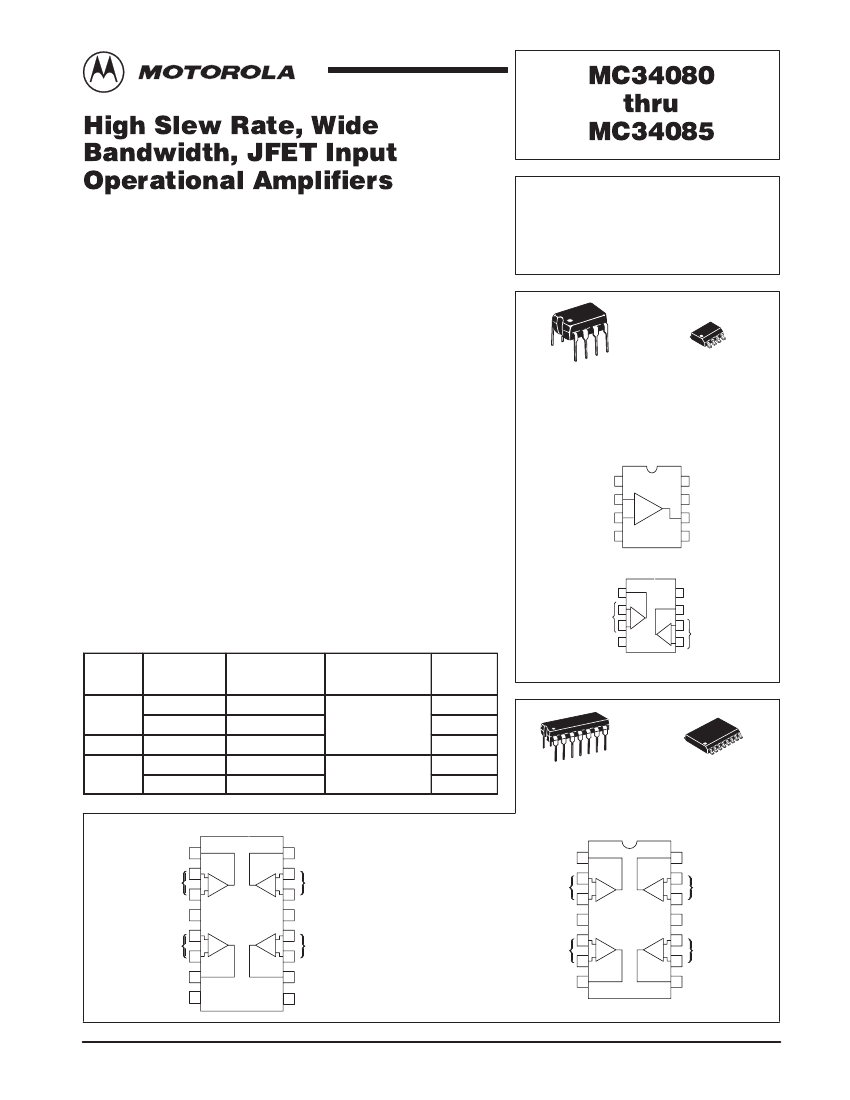

HIGH PERFORMANCE
JFET INPUT
OPERATIONAL AMPLIFIERS
8
1
8
1
P SUFFIX
PLASTIC PACKAGE
CASE 626
D SUFFIX
PLASTIC PACKAGE
CASE 751
(SO–8)
PIN CONNECTIONS
Offset Null
Inv. Input
Noninv. Input
VEE
1
2
3
4
+
8
7
6
5
NC
VCC
Output
Offset Null
Input Offset Voltage: 0.5 mV Maximum (Single Amplifier)
Large Output Voltage Swing: –14.7 V to +14 V for
Large Output Voltage Swing:
VCC/VEE =
±15
V
Low Open Loop Output Impedance: 30
@ 1.0 MHz
Low THD Distortion: 0.01%
Excellent Phase/Gain Margins: 55°/7.6 dB for Fully Compensated
Devices
ORDERING INFORMATION
(Single, Top View)
Output 1
Inputs 1
VEE
1
2
3 +
4
8
7
+
6
5
VCC
Output 2
Inputs 2
Op Amp
Function
Single
Dual
Quad
Fully
Compen-
sated
MC34081BD
MC34081BP
MC34082P
MC34084DW
MC34084P
AVCL
≥2
Compensated
MC34080BD
MC34080BP
MC34083BP
MC34085BDW
MC34085BP
Operating
Temperature
Range
(Dual, Top View)
Package
SO–8
TA = 0° to +70°C
Plastic DIP
Plastic DIP
SO–16L
16
14
1
1
TA = 0° to +70°C
Plastic DIP
P SUFFIX
PLASTIC PACKAGE
CASE 646
PIN CONNECTIONS
Output 1
Inputs 1
3
1
2
+
+
16
15
14
13
+
+
12
11
10
9
DW SUFFIX
PLASTIC PACKAGE
CASE 751G
(SO–16L)
14
Output 4
Inputs 4
VEE
Inputs 3
Output 3
NC
Output 1
Inputs 1
1
2
3
+
+
Output 4
Inputs 4
13
12
11
1
4
1
4
VCC
Inputs 2
4
5
6
VCC
Inputs 2
4
5
6
+
+
VEE
Inputs 3
Output 3
10
9
8
2
3
2
3
Output 2
NC
7
8
Output 2
7
(Quad, Top View)
2–288
MOTOROLA ANALOG IC DEVICE DATA

MC34085BDWR2 Related Products

MC34085BDWR2 MC34081BDR2 MC34080BDR2 MC34084DWR2
Description Operational Amplifier, 4 Func, 14000uV Offset-Max, BIPolar, PDSO16, PLASTIC, SO-16 OP-AMP, 4000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 OP-AMP, 4000uV OFFSET-MAX, 16MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 QUAD OP-AMP, 14000uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO16, PLASTIC, SO-16
package instruction PLASTIC, SO-16 SOP, SOP, SOP, SOP16,.4
Reach Compliance Code unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Maximum average bias current (IIB) 0.004 µA 0.004 µA 0.004 µA 0.004 µA
Minimum Common Mode Rejection Ratio 70 dB 70 dB 70 dB 70 dB
Nominal Common Mode Rejection Ratio 90 dB 90 dB 90 dB 90 dB
Maximum input offset voltage 14000 µV 4000 µV 4000 µV 14000 µV
JESD-30 code R-PDSO-G16 R-PDSO-G8 R-PDSO-G8 R-PDSO-G16
JESD-609 code e0 e0 e0 e0
length 10.3 mm 4.9 mm 4.9 mm 10.3 mm
Negative supply voltage upper limit -22 V -22 V -22 V -22 V
Nominal Negative Supply Voltage (Vsup) -15 V -15 V -15 V -15 V
Number of functions 4 1 1 4
Number of terminals 16 8 8 16
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 2.65 mm 1.75 mm 1.75 mm 2.65 mm
minimum slew rate 20 V/us 20 V/us 20 V/us 20 V/us
Nominal slew rate 25 V/us 25 V/us 25 V/us 25 V/us
Maximum slew rate 13 mA 4.2 mA 4.2 mA 13 mA
Supply voltage upper limit 22 V 22 V 22 V 22 V
Nominal supply voltage (Vsup) 15 V 15 V 15 V 15 V
surface mount YES YES YES YES
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL
Nominal Uniform Gain Bandwidth 16000 kHz 8000 kHz 16000 kHz 8000 kHz
Minimum voltage gain 15000 15000 15000 15000
width 7.5 mm 3.9 mm 3.9 mm 7.5 mm
Base Number Matches 1 1 1 1
Maker Motorola ( NXP ) Motorola ( NXP ) Motorola ( NXP ) -
Parts packaging code - SOIC SOIC SOIC
