MC54HC153JS datasheet, PDF - EEWORLD Datasheet

MC54HC153JS: DescriptionIC,LOGIC MUX,DUAL,4-INPUT,HC-CMOS,DIP,16PIN,CERAMIC; Categorylogic logic; File Size273KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

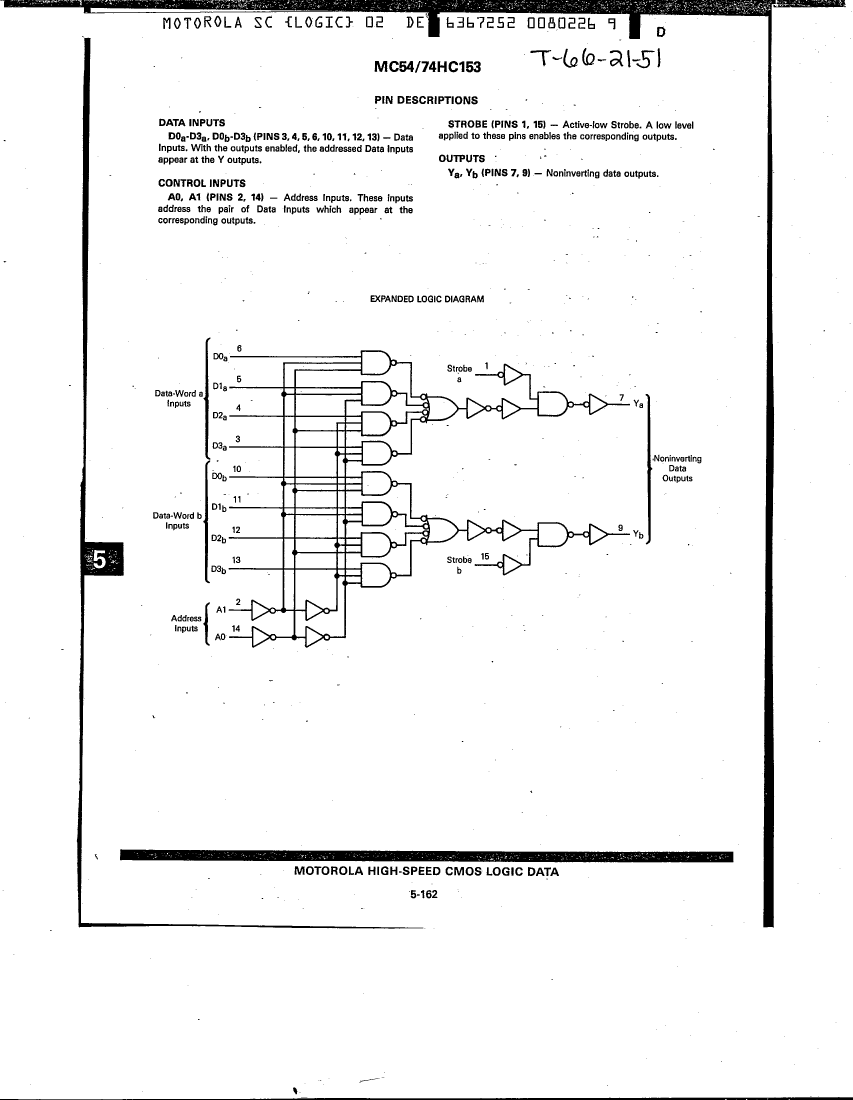

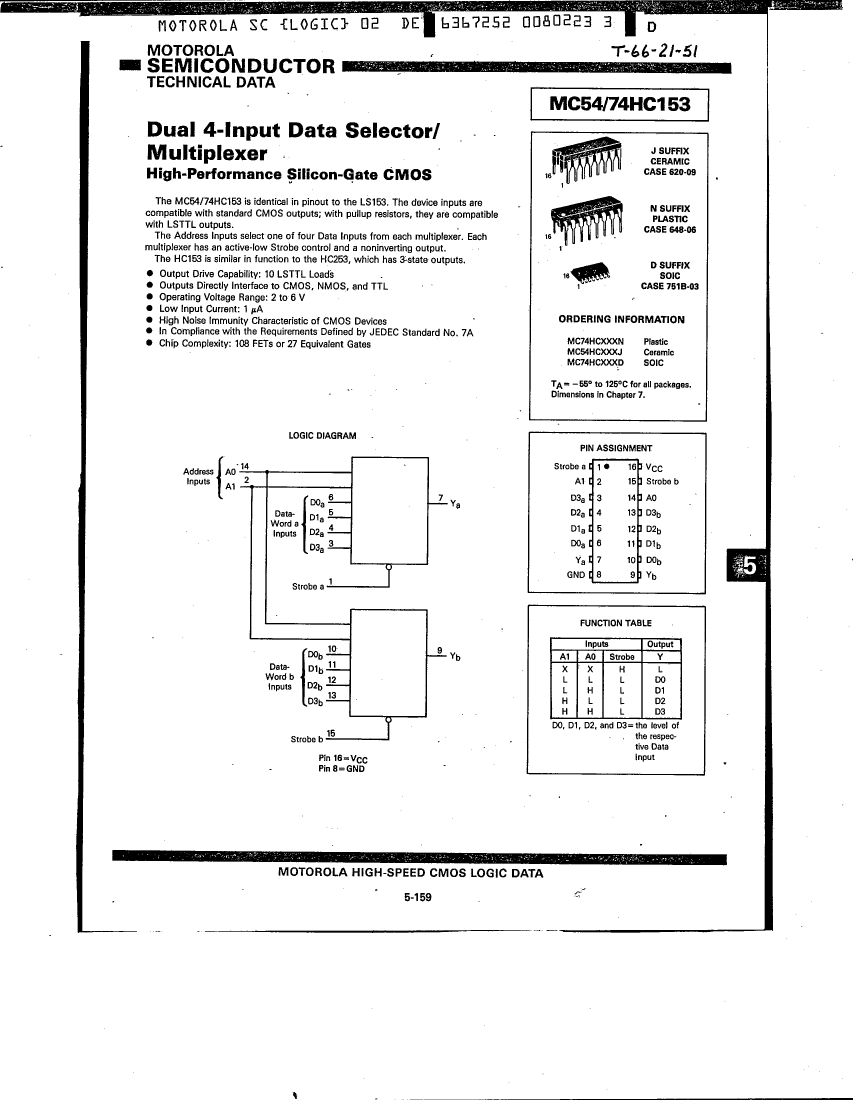

MC54HC153JS Overview

IC,LOGIC MUX,DUAL,4-INPUT,HC-CMOS,DIP,16PIN,CERAMIC

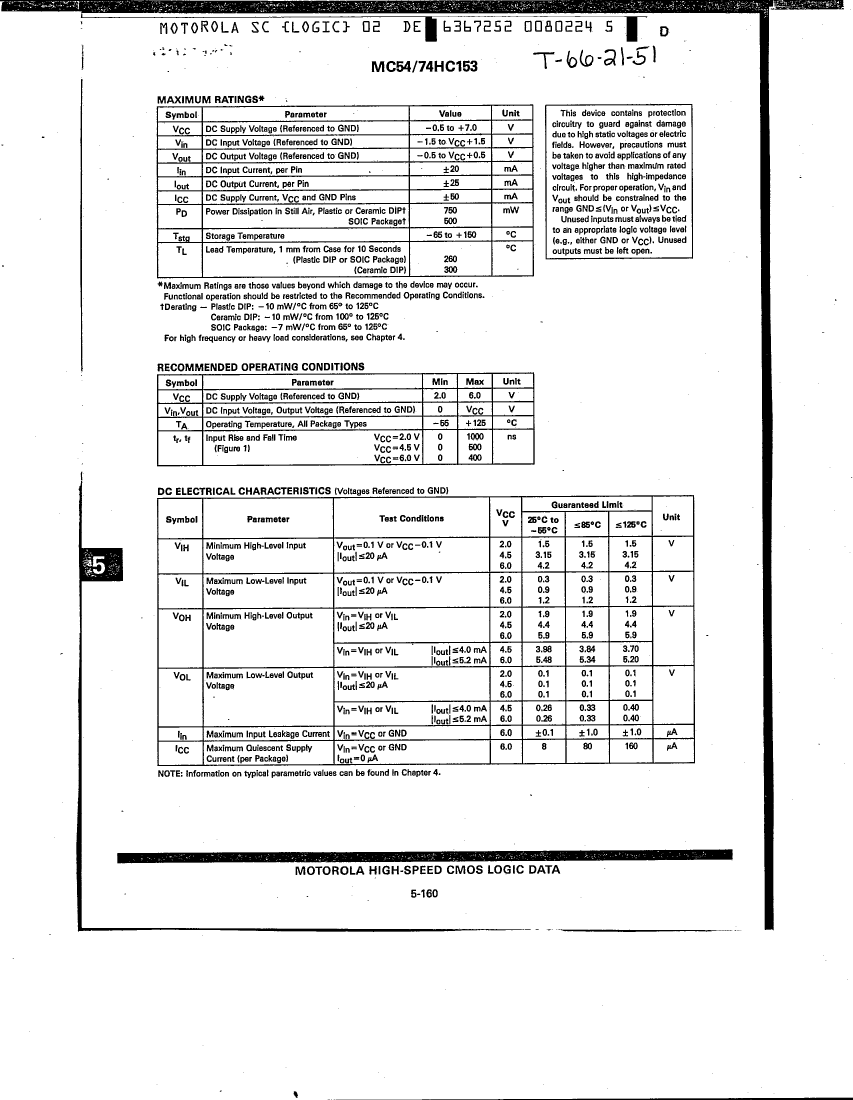

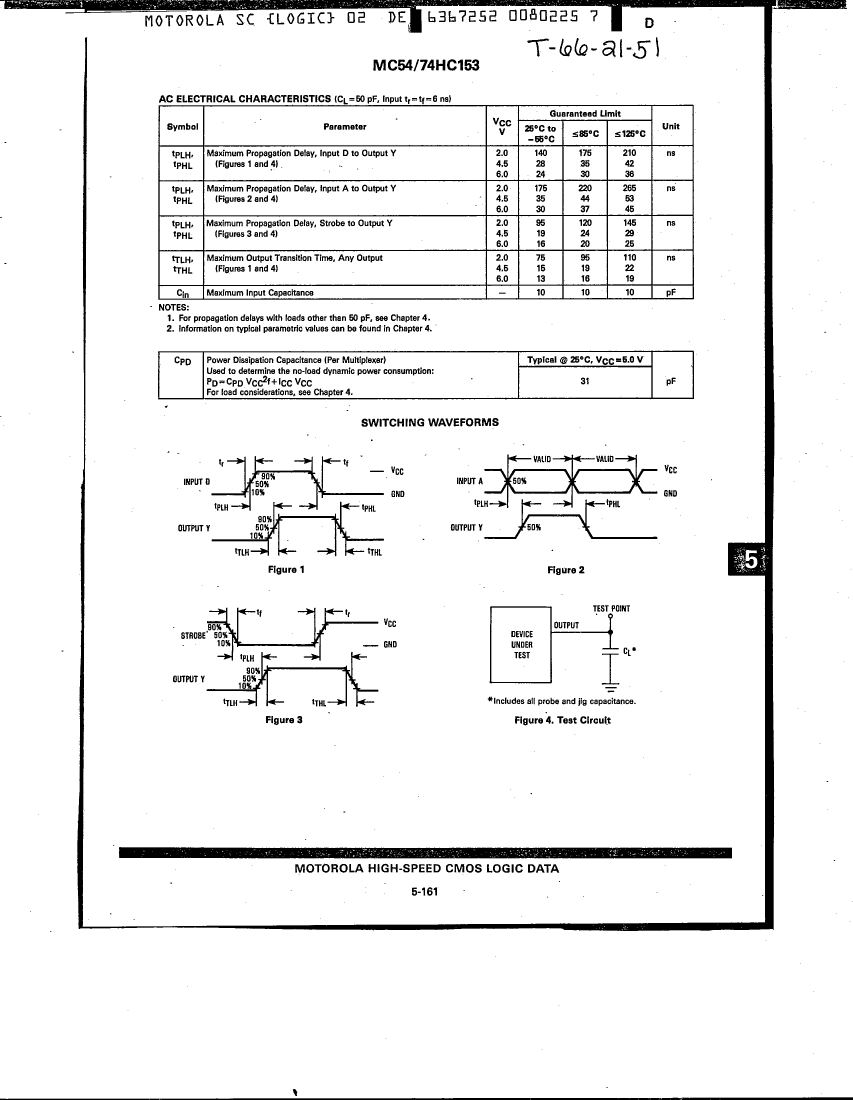

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
