SAW Components
SAW Filter
GSM/EDGE
Series/Type:
Ordering code:
Date:
Version:
B5011
B39461-B5011-H810
Nov 28, 2005
4
©
EPCOS AG 2005. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
Low-Loss Filter for WiMAX
Data Sheet
Application
s
Low-loss IF filter for WiMAX
s
Usable bandwidth 3.7 MHz
s
Ceramic SMD package
B5011
456.00 MHz
Features
Package size 7.0 x 5.0 x 1.33 mm
3
Package code QCC12E
RoHS compatible
Approx. weight 0.2 g
Package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
s
s
s
s
Pin configuration
s
s
s
s
s
s
10
12
4
6
2, 3, 8, 9
1, 5, 7, 11
Input
Input ground or balanced input
Output
Output ground or balanced output
Ground
Case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
Nov 28, 2005
SAW Components
Low-Loss Filter for WiMAX
Data Sheet
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
B5011
456.00 MHz
T = –40 ˚C to +85 ˚C
Z
S
= 200
Ω
balanced and matching network
Z
L
= 200
Ω
balanced and matching network
min.
—
typ.
456.00
max.
—
Nominal frequency
Minimum insertion attenuation
1)
(including matching network)
Amplitude ripple
(p-p)
f
N
±
1.7 MHz
f
N
±
1.85 MHz
Absolute group delay
(at
f
N
)
Group delay ripple
(p-p)
f
N
±
1.7 MHz
Return loss
f
N
±
1.7 MHz
Input
Output
f
N
α
min
MHz
—
∆α
—
—
τ
∆τ
—
8
10
—
8.5
10.0
dB
0.6
1.5
0.55
1.0
3.0
3.0
dB
dB
µs
120
12
14
250
—
—
ns
dB
dB
Impulse response attenuation
(Time/Height
values are relative to the main time response
lobe)
1-2
µs
2-3
µs
> 3
µs
Relative attenuation
(relative to
α
min
)
1 MHz ...
256 MHz
256 MHz ... 360
MHz
360 MHz ... 416.0 MHz
416 MHz ... 452.65 MHz
459.35 MHz ... 656 MHz
656 MHz ... 946
MHz
Temperature coefficient of frequency
2)
Turnover temperature
1)
2)
20
35
45
α
rel
30
40
50
40
40
30
30
38
49
—
—
—
dB
dB
dB
70
70
64
46
44
44
–0.036
20
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
ppm/K
2
˚C
TC
f
T
0
—
—
Could increase up to 10,8 dB with single ended matching network at 50
Ω
Temperature dependance of
f
c
:
f
c
(T
A
) =
f
c
(T
0
)(1 +
TC
f
(T
A
–
T
0
)
2
)
Please read
cautions and warnings and
important notes
at the end of this document.
3
Nov 28, 2005
SAW Components
Low-Loss Filter for WiMAX
Data Sheet
Matching network to 200
Ω
balanced
4:1 transformers are only required for measurement in a 50
Ω
environment
(element values depend on PCB layout)
B5011
456.00 MHz
L
L
L
L
L
p1
= 100 nH
L
s2
= L
s3
= 33 nH
L
p4
= 22 nH
L
p5
= 27 nH
L
s6
= L
s7
= 18 nH
L
p8
= 62 nH
Matching network to 50
Ω
single ended(element
values depend on PCB layout)
Ls2
Lp1
Ls5
Lp3
Lp4
Lp6
L
p1
not used; L
s2
= 47nH; L
p3
= 18 nH
L
p4
= 22nH; L
s5
=47nH; L
p6
=47nH
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
DC voltage
ESD voltage
Input power
1)
T
T
stg
V
DC
V
DC
V
ESD
P
IN
–40/+80
–40/+85
5
0
200
1)
10
˚C
˚C
V
V
V
dBm
between input, output and ground
between 10, 12 and between 4,6
machine model, 1 pulse
acc. to J-STD22A-0115A (machine model, 1 pulse +/-).
Please read
cautions and warnings and
important notes
at the end of this document.
4
Nov 28, 2005
SAW Components
Low-Loss Filter for WiMAX
Data Sheet

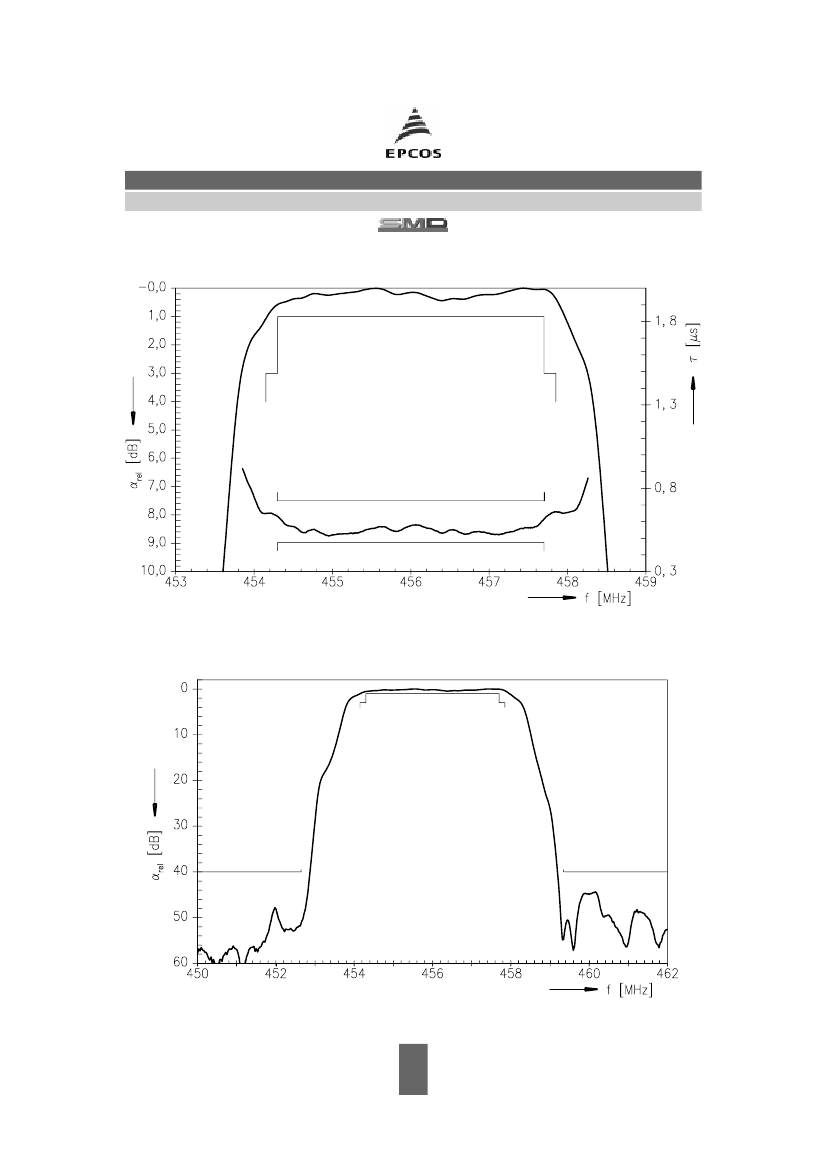

Transfer function
B5011
456.00 MHz
Transfer function
(wideband
Please read
cautions and warnings and
important notes
at the end of this document.
5
Nov 28, 2005
