HYB-5416-X3-TNC-79

Description
RF/Microwave Coupler, 7000 MHz - 18000 MHz RF/MICROWAVE 180 DEGREE HYBRID COUPLER, 1.2 dB INSERTION LOSS-MAX
CategoryWireless rf/communication    Radio frequency and microwave
File Size59KB,1 Pages
ManufacturerArtysen Embedded Technologies
Download Datasheet Parametric View All

HYB-5416-X3-TNC-79 Overview

RF/Microwave Coupler, 7000 MHz - 18000 MHz RF/MICROWAVE 180 DEGREE HYBRID COUPLER, 1.2 dB INSERTION LOSS-MAX

HYB-5416-X3-TNC-79 Parametric

Parameter NameAttribute value
MakerArtysen Embedded Technologies
Reach Compliance Codeunknown
Is SamacsysN
Other featuresTNC, HIGH ISOLATION
structureCOAXIAL
Maximum input power (CW)44.77 dBm
Maximum insertion loss1.2 dB
Maximum operating frequency18000 MHz
Minimum operating frequency7000 MHz
RF/Microwave Device Types180 DEGREE HYBRID COUPLER
Maximum voltage standing wave ratio1.7
Base Number Matches1
Couplers

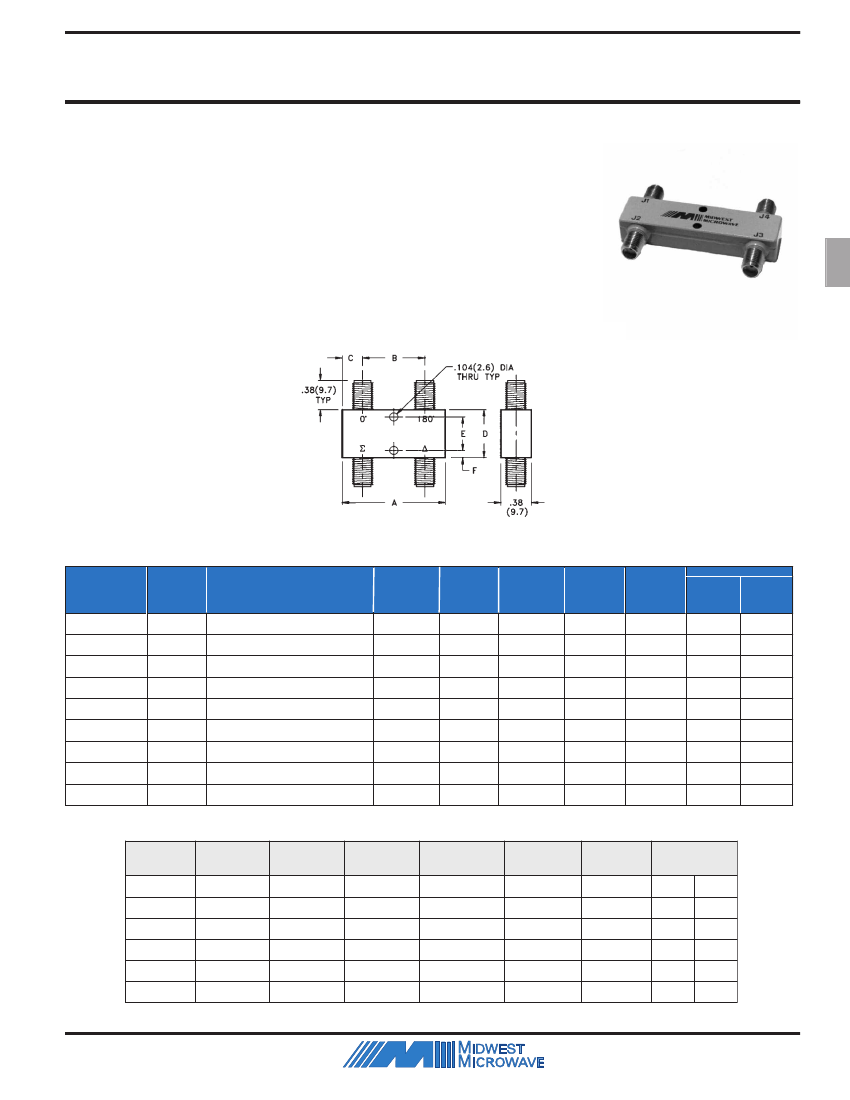

Midwest Microwave's series of 3 dB 180
o
Hybrid Couplers may be used as a
power divider or combiner. A microwave signal applied at the sum
(Σ)
port will
result in two equal amplitude, in phase signals at the output ports. Conversely,
a microwave signal applied at the difference (∅) port will result in two equal
amplitude but 180
o
out of phase signals at the output ports.
500 MHz to 18.0 GHz Performance
0
o
or 180
o
Phase Difference
Low VSWR - High Isolation
Rugged StriplineConstruction
Meets MIL-E-5400 and MIL-E-16400
Excellent Phase and Amplitude Balance
3 dB 180
o
Hybrids- Crossover Type
FREQUENCY
RANGE (GHZ)
.50-1.0
1.0-2.0
2.0-4.0
2.6-5.2
4.0-8.0
CASE
STYLE
ELECTRICAL SPECIFICATIONS
MODEL NUMBER
AMPLITUDE INSERTION
BALANCE
LOSS
(dB)
(dB) max
1
2
3
4
4
6
6
6
5
HYB-5410-X3-SMA-79
HYB-5412-X3-SMA-79
HYB-5413-X3-SMA-79
HYB-5414-X3-SMA-79
HYB-5415-X3-SMA-79
HYB-5416-X3-SMA-79
HYB-5417-X3-SMA-79
HYB-5423-X3-SMA-79
HYB-5411-X3-SMA-79
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
±0.6
±0.6
±0.6
0.4
0.5
0.7
0.7
0.7
0.8
1.2
1.2
1.0
ISOLATION
(dB) min
24
24
22
20
20
17
14
12
VSWR
max
PHASE
BALANCE
1.30
1.35
1.35
1.35
1.35
1.45
1.70
1.70
.50
(Deg)
± 10
± 10
± 10
±8
±8
±6
±6
±6
±6
Avg
(w)
POWER (In)
30
30
30
30
30
30
30
30
30
Peak
(w)
3
3
3
3
3
3
3
3
3
7.0-12.4
12.4-18.0
4.0-12.4
7.0-18.0
CASE
STYLE
1
2
3
4
5
6
MECHANICAL SPECIFICATIONS
-
C
0.50 (12.7)
0.50 (12.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
0.38 (9.7)
D
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.25 (31.8)
1.00 (25.4)
1.00 (25.4)
17 1
INCHES (mm)
A
3.25 (82.6)
2.00 (50.8)
1.44 (36.5)
1.25 (31.8)
1.50 (38.1)
1.25 (31.8)
B
2.5 (63.5)
1.25 (31.8)
0.69 (17.5)
0.50 (12.7)
0.75 (19.1)
0.50 (12.7)
E
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
1.00 (25.4)
0.75 (19.1)
0.75 (19.1)
F
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
0.13 (3.2)
WEIGHT
Oz
Gr
2.8
2.0
1.5
1.5
1.2
1.1
70
47
38
38
34
31
Note: TNC or Type N output connectors are available by substituting "TNC" or "NNN" for "SMA" in the Model Number.
