MC12093D

Description
Prescaler, ECL Series, 1-Func, Bipolar, PDSO8, PLASTIC, SO-8
Categorylogic    logic
File Size76KB,4 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

MC12093D Online Shopping

Suppliers Part Number Price MOQ In stock
MC12093D - - View Buy Now

MC12093D Overview

Prescaler, ECL Series, 1-Func, Bipolar, PDSO8, PLASTIC, SO-8

MC12093D Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionPLASTIC, SO-8
Reach Compliance Codeunknown
Is SamacsysN
Other featuresSELECTABLE DIVISION RATIO 4
seriesECL
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
Load capacitance (CL)2 pF
Logic integrated circuit typePRESCALER
Maximum Frequency@Nom-Sup1100000000 Hz
Number of data/clock inputs1
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristicsEMITTER FOLLOWER
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3/5 V
Maximum supply current (ICC)4.5 mA
Certification statusNot Qualified
Maximum seat height1.75 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.7 V
Nominal supply voltage (Vsup)3 V
surface mountYES
technologyBIPOLAR
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width3.9 mm
minfmax1100 MHz
Base Number Matches1
Order this document by MC12093/D
÷
2,
÷
4,
÷
8
MC12093
1.1GHz Low Power
Prescaler with Stand-By Mode
The MC12093 is a single modulus prescaler for low power frequency
division of a 1.1 GHz high frequency input signal. Motorola’s advanced
MOSAIC™ V technology is utilized to acheive low power dissipation of
6.75 mW at a minimum supply voltage of 2.7 V.
On–chip output termination provides output current to drive a 2.0 pF
(typical) high impedance load. If additional drive is required for the prescaler
output, an external resistor can be added parallel from the OUT pin to GND
to increase the output power. Care must be taken not to exceed the
maximum allowable current through the output.
Divide ratio control inputs SW1 and SW2 select the required divide ratio of
÷2, ÷4,
or
÷8.
Stand–By mode is featured to reduce current drain to 50
µA
typical when
the standby pin SB is switched LOW disabling the prescaler.
MECL PLL COMPONENTS
÷2, ÷4, ÷8
LOW POWER
PRESCALER
WITH STAND–BY MODE
SEMICONDUCTOR
TECHNICAL DATA
8
1
1.1 GHz Toggle Frequency
Supply Voltage 2.7 V to 5.5 Vdc
Low Power 3.0 mA Typical
Operating Temperature –40 to 85°C
Divide by 2, 4 or 8 Selected by SW1 and SW2 Pins
On–Chip Termination
8

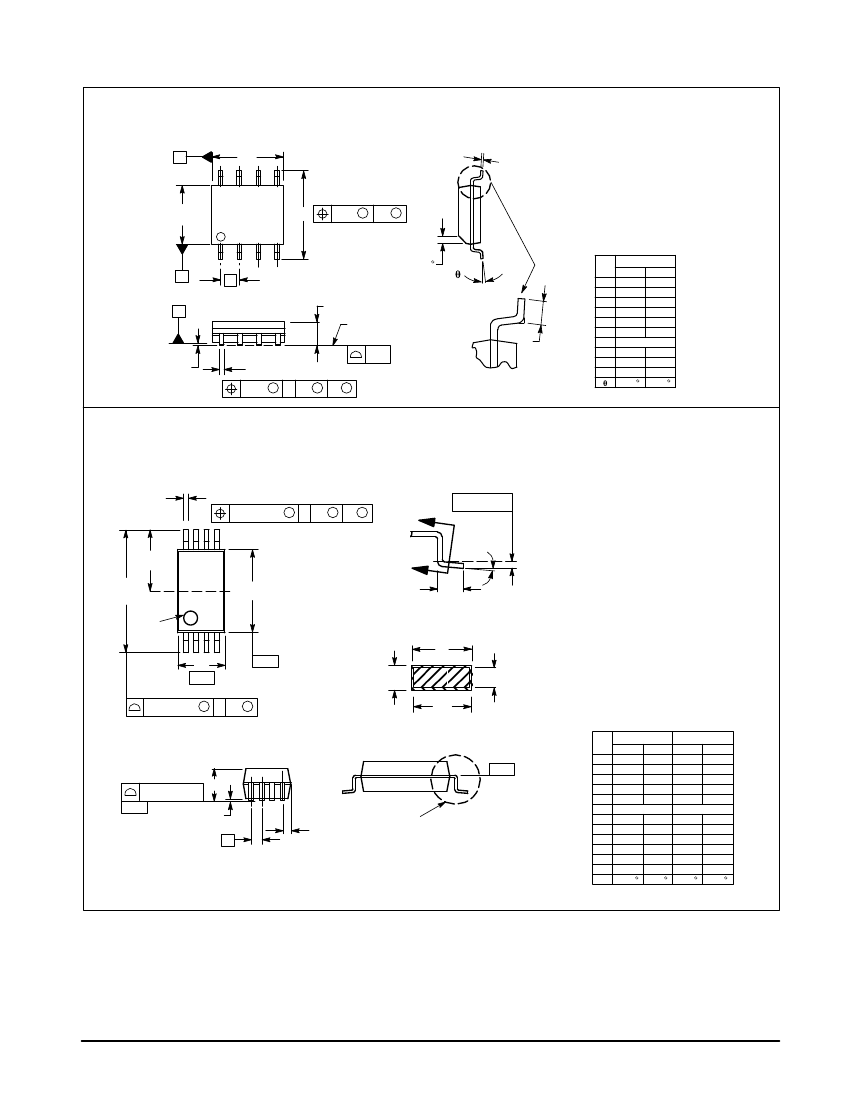

D SUFFIX
PLASTIC PACKAGE
CASE 751
(SO–8)
MOSAIC V is a trademark of Motorola
1
FUNCTIONAL TABLE
SW
L
H
L
H
SW2
L
L
H
H
Divide Ratio
8
4
4
2
SD SUFFIX
PLASTIC PACKAGE
CASE 940
(SSOP–8)
PIN CONNECTIONS
NOTES:
1. SW1 & SW2: H = (VCC – 0.5 V) to VCC; L = Open.
2. SB: H = 2.0 V to VCC, L = GND to 0.8 V.
Function Chart
IN
VCC
SW2
OUT
1
2
3
4
8
7
6
5
IN
SB
SW1
Gnd
(Top View)
A LOW on the Stand–By Pin 7 disables the device.
IN
÷2
÷4
÷8
Device
MC12093D
MC12093SD
©
Motorola, Inc. 1997
ORDERING INFORMATION
Operating
Temp Range
TA =
– 40° to +85°C
Package
SO–8
SSOP–8
Rev 3

MC12093D Related Products

MC12093D MC12093SD
Description Prescaler, ECL Series, 1-Func, Bipolar, PDSO8, PLASTIC, SO-8 Prescaler, ECL Series, 1-Func, Bipolar, PDSO8, PLASTIC, SSOP-8
Is it Rohs certified? incompatible incompatible
package instruction PLASTIC, SO-8 PLASTIC, SSOP-8
Reach Compliance Code unknown unknown
Other features SELECTABLE DIVISION RATIO 4 STAND-BY MODE; SELECTABLE DIVISION RATIO 4
series ECL ECL
JESD-30 code R-PDSO-G8 R-PDSO-G8
JESD-609 code e0 e0
length 4.9 mm 5.3 mm
Load capacitance (CL) 2 pF 2 pF
Logic integrated circuit type PRESCALER PRESCALER
Maximum Frequency@Nom-Sup 1100000000 Hz 1100000000 Hz
Number of data/clock inputs 1 1
Number of functions 1 1
Number of terminals 8 8
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
Output characteristics EMITTER FOLLOWER EMITTER FOLLOWER
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SSOP
Encapsulate equivalent code SOP8,.25 SSOP8,.3
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 3/5 V 3/5 V
Maximum supply current (ICC) 4.5 mA 4.5 mA
Certification status Not Qualified Not Qualified
Maximum seat height 1.75 mm 1.99 mm
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 2.7 V 2.7 V
Nominal supply voltage (Vsup) 3 V 5 V
surface mount YES YES
technology BIPOLAR BIPOLAR
Temperature level INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING
Terminal pitch 1.27 mm 0.65 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 3.9 mm 3 mm
minfmax 1100 MHz 1100 MHz
Base Number Matches 1 1
