8609.324.73.13.758.000.E1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8609.324.73.13.758.000.E1

Preview

8609.324.73.13.758.000.E1: DescriptionBoard Euro Connector, 24 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size1MB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8609.324.73.13.758.000.E1 Overview

Board Euro Connector, 24 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal

8609.324.73.13.758.000.E1 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

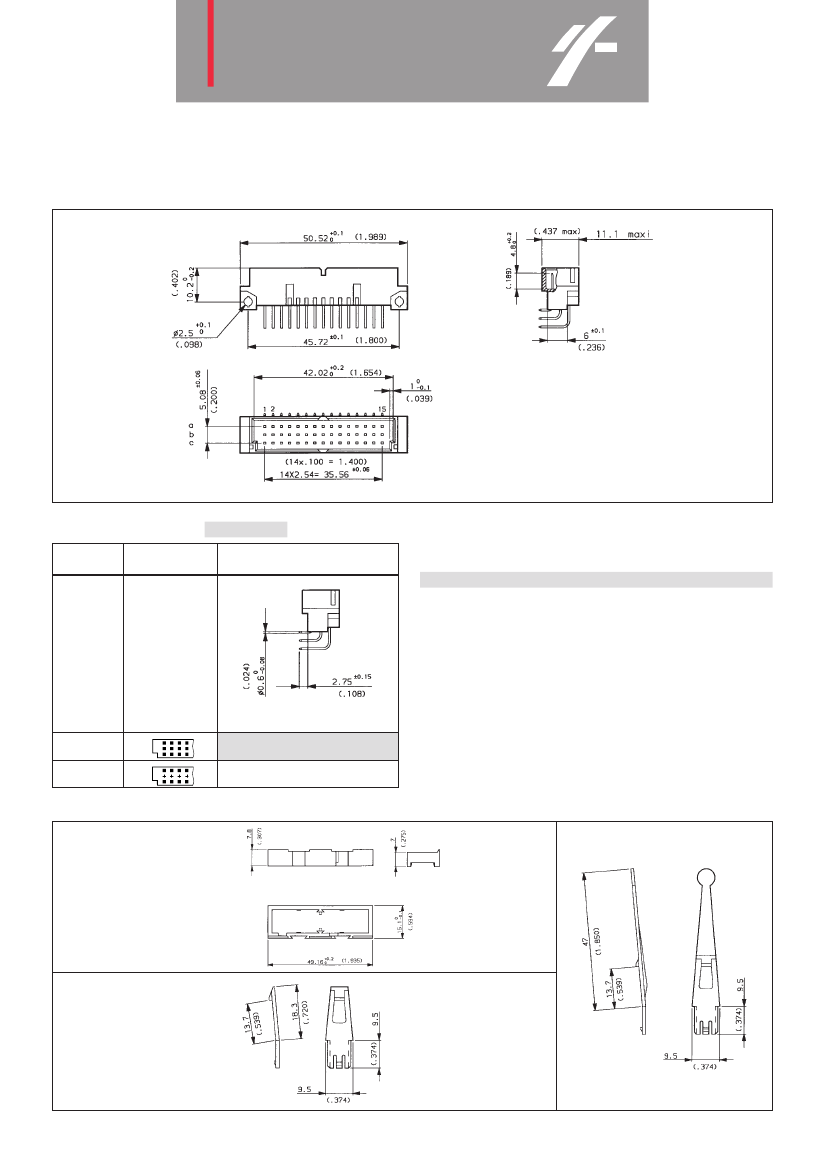

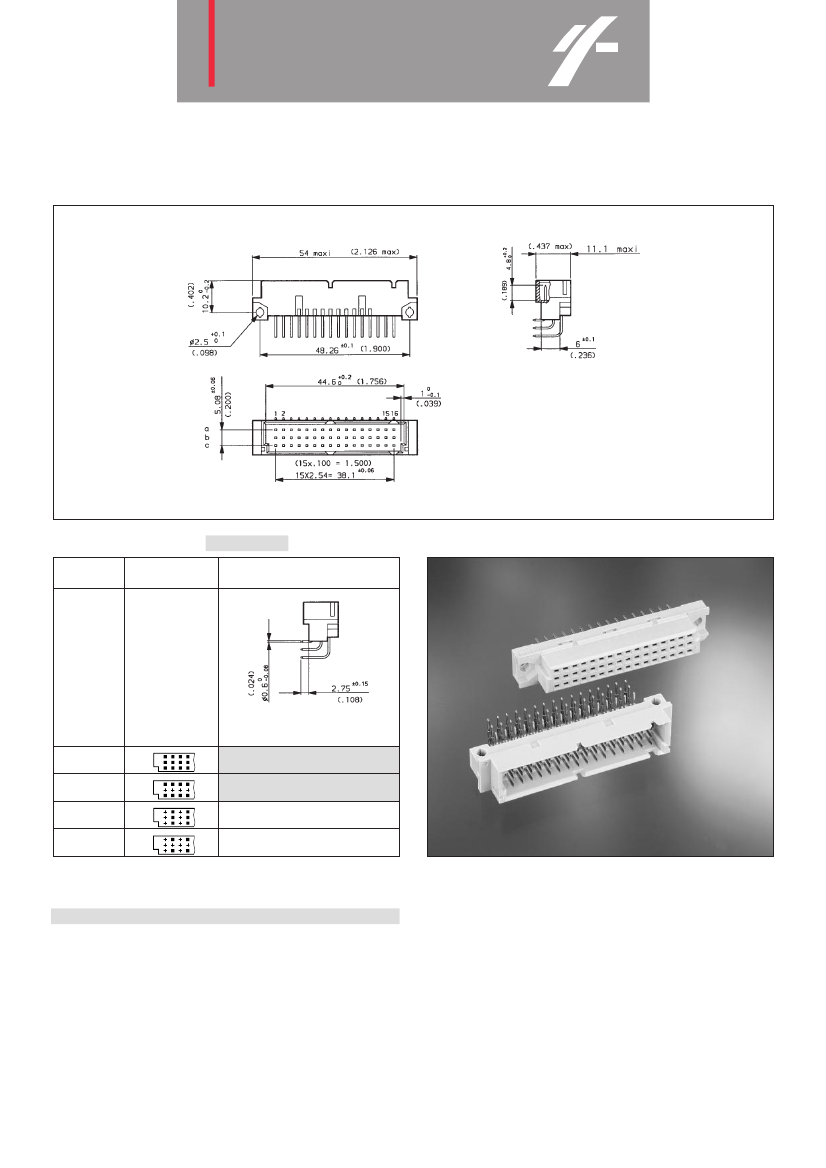

DIN 41612

Standard male, 3 row

8609 series, 45 contacts

Catalogue numbers -

standard items

Nbr of

contacts

Contact

arrang.

Contact

termination

Performance class / plating:

• DIN 41612 class III: replace x by

4

in part number.

• DIN 41612 class II: replace x by

5

in part number.

• DIN 41612 class I: replace x by

6

in part number.

Contact plating: selective gold over nickel on contact area, tin-lead on

termination.

Options:

Special terminations and contact arrangements are available upon

request: consult factory.

First make/last break: see page 53

Harpoons: see page 54

angled spills PCB 1,6

(.063)

1 2 3 4

45

30

a

b

c

1 2 3 4

8609.345.77.13.7x5.000.E1

8609.430.77.13.7x5.000.E1

Application:

This pin header mates with cable connectors described in pages 59-63.

a

c

Recommended accessories

Latch frame 8609 1117

to provide locking

and discrimination

for 21 and

2x21 position

cable connectors

Extended latch

8609 2239 3

Standard latch

8609 2238 3

17
