57102-G06-02U: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

57102-G06-02U Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator

57102-G06-02U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.157 inch
subject depth	0.059 inch
body length	0.157 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	57102
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

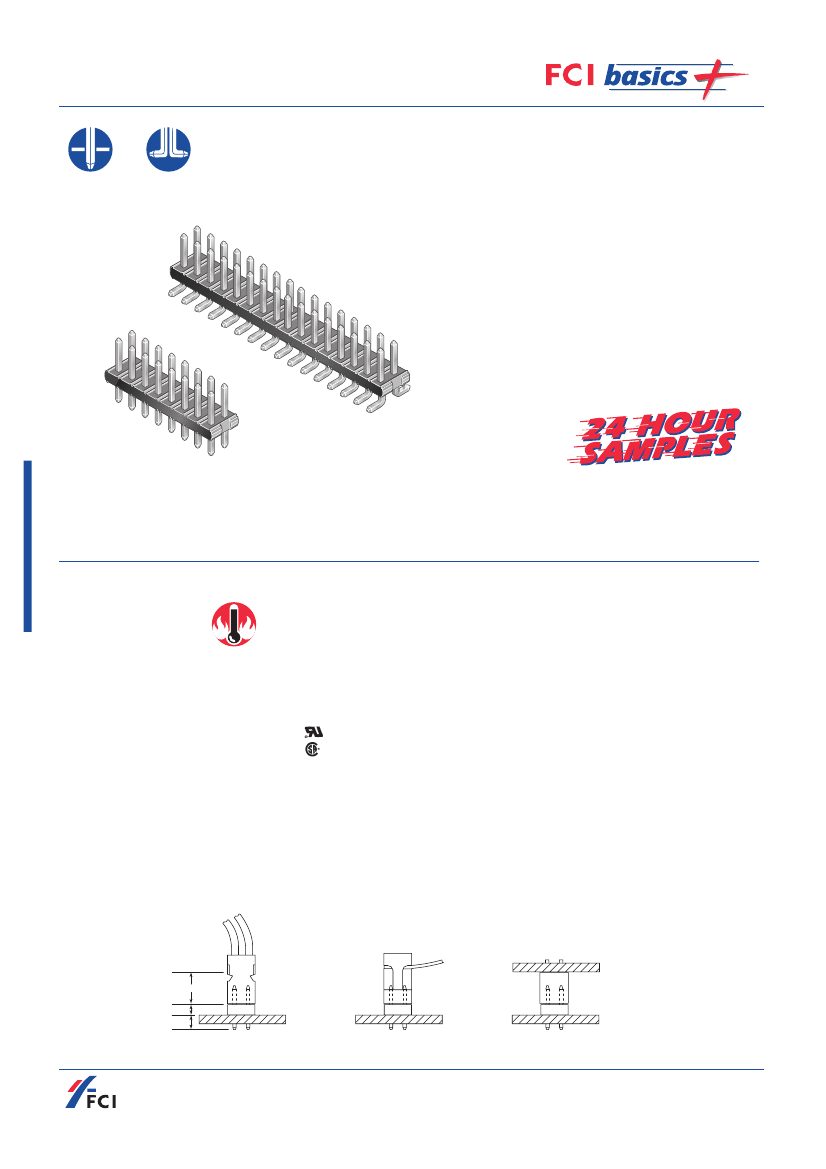

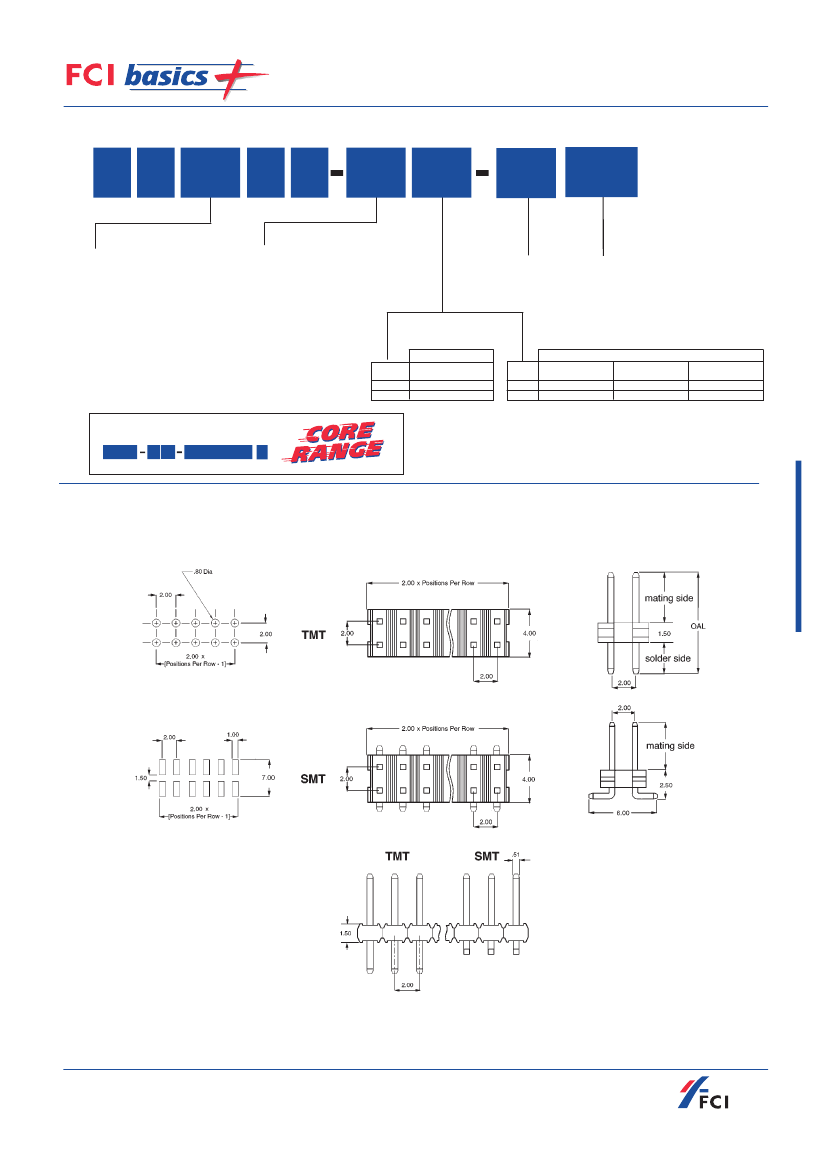

Minitek™ Unshrouded Straight Headers

2,00 mm

s

High temperature plastic

s

Selective plating

Technical Data

Physical

Housing: High-temperature,

black thermoplastic

Flammability rating: UL 94 V-0

Pin: Phosphor-bronze

Plating: Gold over 1.27 µm nickel

Mating Data

Operating Temperature

-55°C to +125°C

s

Minitek™ ctw contacts and housings

s

Minitek™ Vertical receptacles

s

Minitek™ Shunts

s

Minitek™ IDC receptacles

Page

48

50

52

54

Packaging

Standard: TMT in tubes (04 to 08 pos. packed

in box)

SMT in Tape-and-reel

Optional: SMT in Tubes

Processing Information

Compatible with wave, vapor-phase, and

IR reflow soldering processes

Electrical Performance

Current rating: 2 A continuous

Insulation resistance: 1000 MΩ min.

Contact resistance: 25 mΩ max.

Dielectric withstanding voltage: 650 V

Voltage rating: 200 V

Reference Information

File no. E66906

File no. LR46923

Product drawing: 57102 or 57202

Product specification: DPS-12-011

and GES-12-163

Specifications subject to change without notice.

Mechanical Performance

Mating cycles (durability): 100

Typical Applications

Mating side

Body

Solder side

Technical / Application Support / Drawings / Specifications / Samples:

www.fciconnect.com/basics

38

57102-G06-02U Related Products

	57102-G06-02U	57102-G08-02U	57102-F06-02U	57102-F08-02U
Description	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	0.059 inch	0.059 inch	0.059 inch	0.059 inch
body length	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e0	e0	e0	e0
Manufacturer's serial number	57102	57102	57102	57102
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	30u inch	30u inch	FLASH inch	FLASH inch
Rated current (signal)	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.098 inch	0.118 inch	0.098 inch	0.118 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4
