MC145406L datasheet, PDF - EEWORLD Datasheet

MC145406L: DescriptionLINE TRANSCEIVER, CDIP16, 620-09; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size288KB，7 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

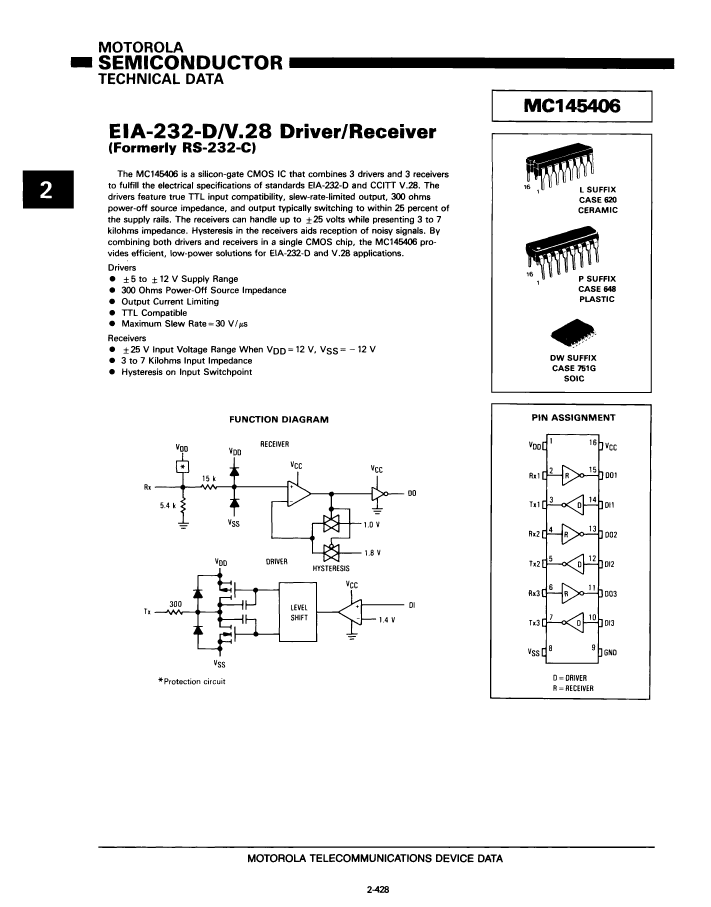

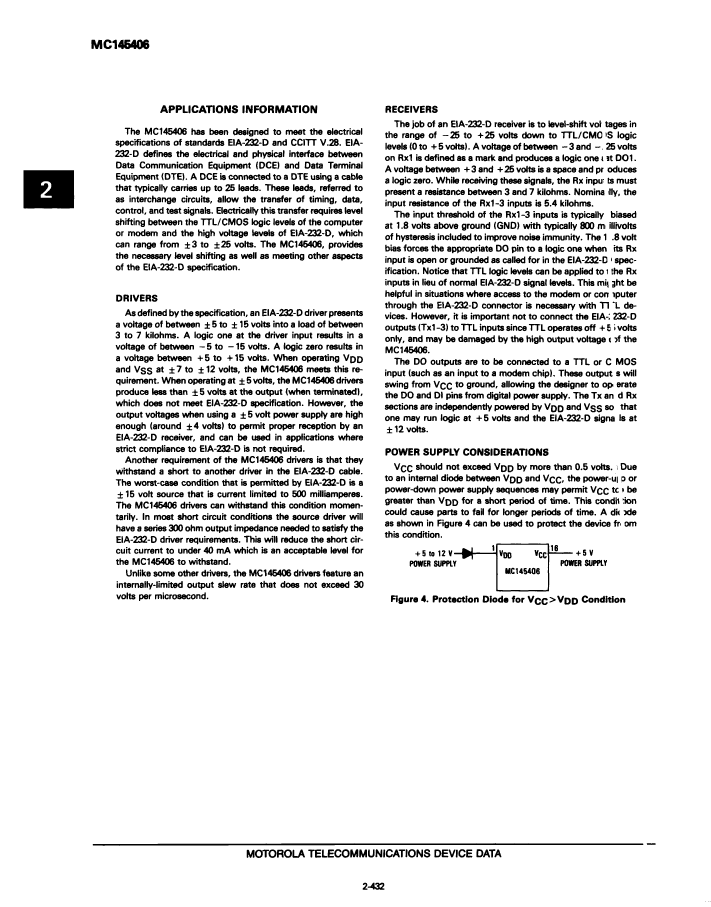

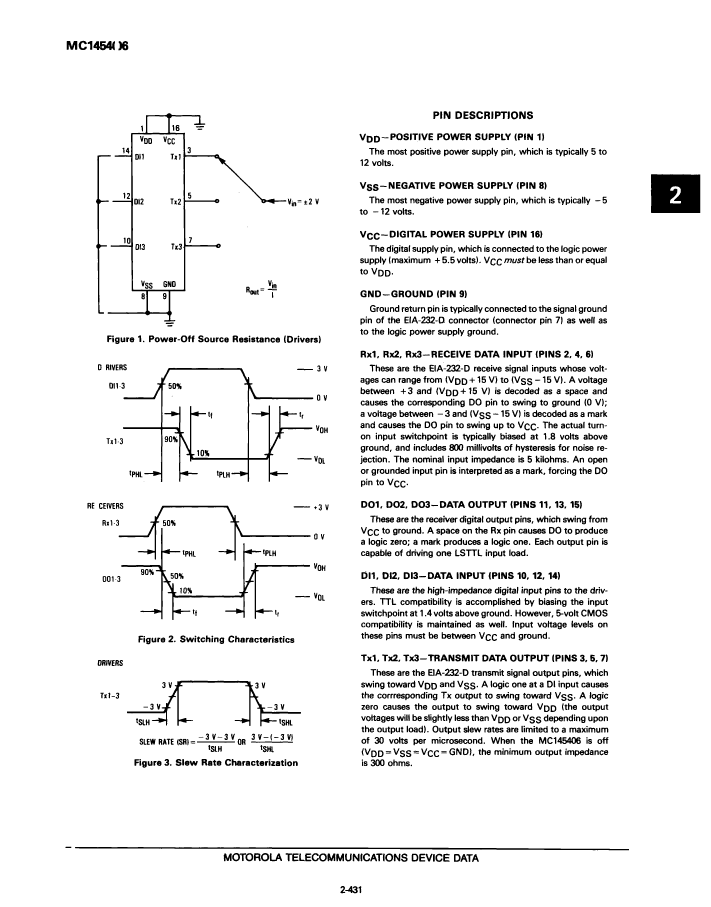

MC145406L Overview

LINE TRANSCEIVER, CDIP16, 620-09

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Differential output	NO
Number of drives	3

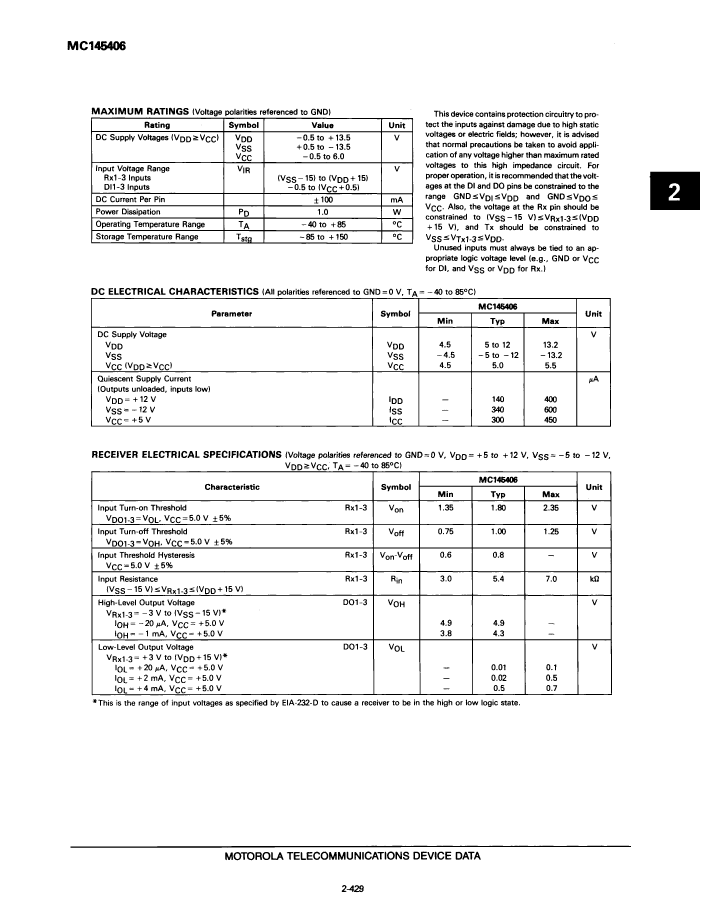

High level input current maximum value	0.000001 A
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-D; V.28
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.3 mm
Nominal negative supply voltage	-12 V
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	7.5 V
Output characteristics	TOTEM-POLE
Maximum output low current	0.004 A
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-5/+-12 V
Certification status	Not Qualified

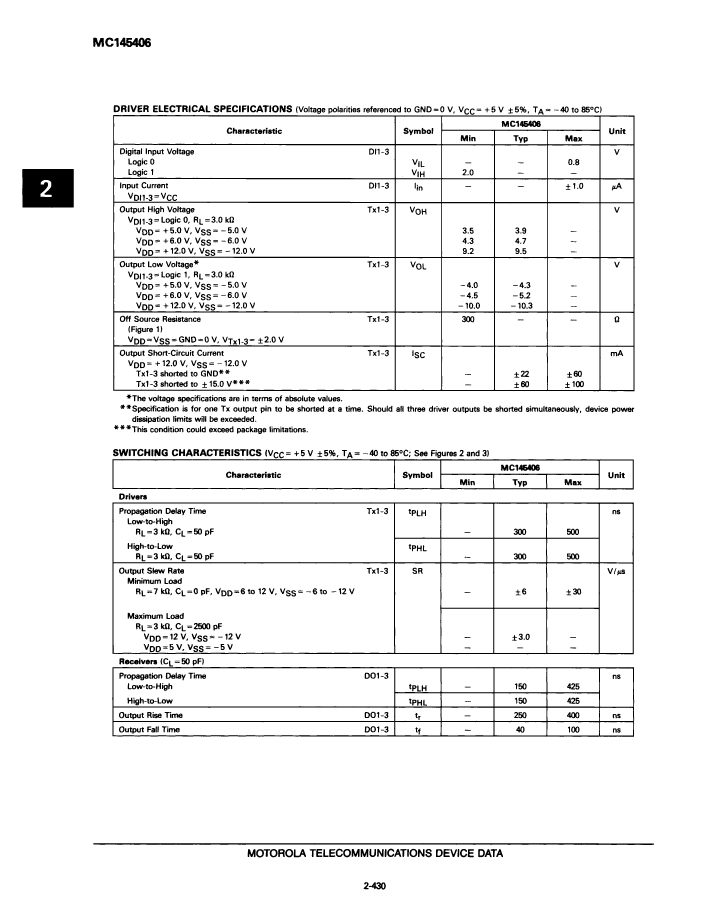

Maximum receive delay	425 ns
Number of receiver bits	3
Maximum seat height	4.19 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	4.5 V
Supply voltage1-Nom	12 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	500 ns
width	7.62 mm
Base Number Matches	1
