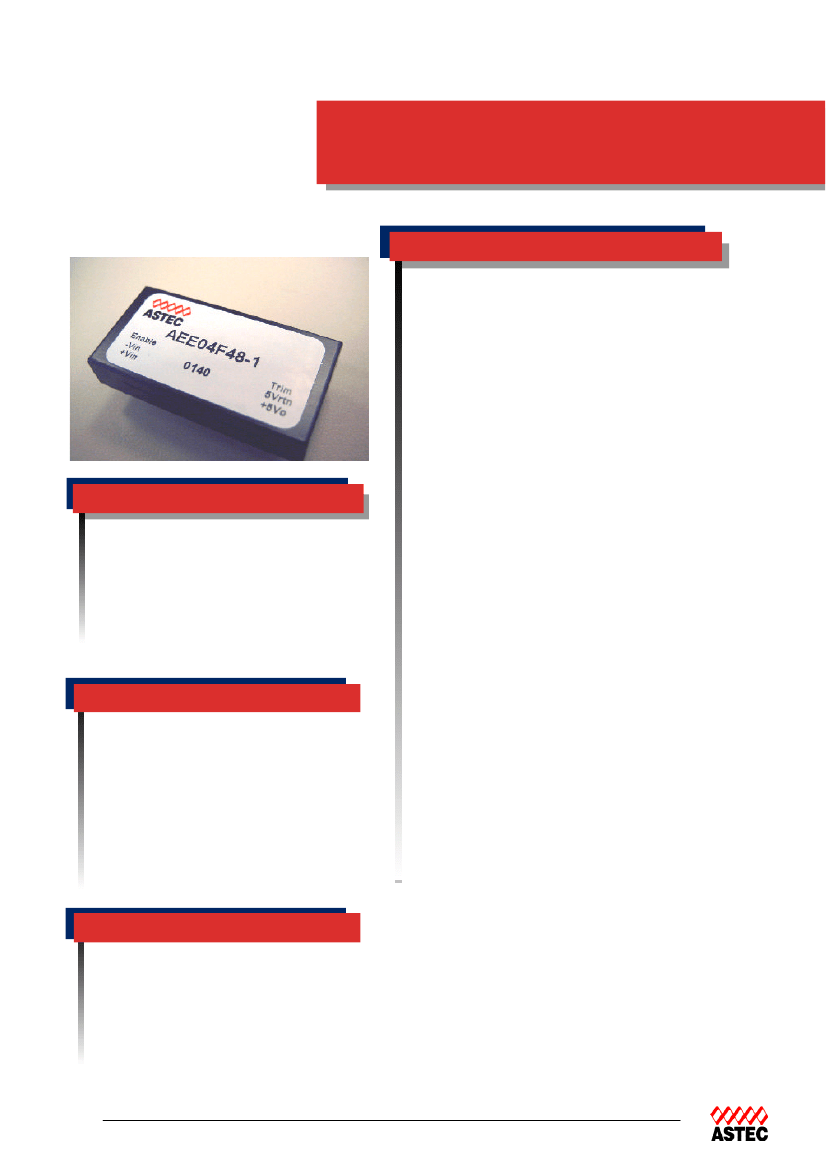

15 Watts
AEE04
AEE01-Dual
Total Power:
Input Voltages:
No. of Outputs:
15 Watts
48V, 24V
Single, Dual
Electrical Specs
Input
Input range
18 to 36 VDC
36 to 75 VDC
86% typical (3.3V)
Efficiency
Output
Voltage tolerance
2.45 - 2.55V (2.5V)
3.24 - 3.36V (3.3V)
4.95 - 5.05V (5.0V)
11.88 - 12.12V (12.0V)
Dual +12 (1%), -12V(5%)
±1% max
Dual
+12V(±1% max)
-12V(±10% max)
Special Features
•
•
•
•
•
•
•
15 W, Single, Dual output
High Efficiency
2:1 Input range
1.0" x 2.0" x 0.4 case
Industry standard package
Low Profile
Low Cost
Overall regulation
Noise/ripple
Transient response
2.5% (mV P-P) Max
2%Vo, 100 usec typical (25% step
load change)
±0.04 %Vo/°C
290kHz
Temperature Regulation
Switching frequency
Environmental
Operating base temperature range:
-40°C to +105°C
Storage temperature: -55°C to +125°C
MTBF: 1.5 Million Hours (Belcore TR332)
Isolation
I/O isolation
Input to Case
Output to Case
1500 VDC
1500 VDC
1500 VDC
Safety
UL
CSA
TUV
CE
UL1950 Recognition
CSA22.2-950 Recognition
EN60950 Certified
CE Mark
2
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
Ordering Information
Input
Voltage
18-36 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
36-75 V
Output
Voltage
3.3 @ 4.5 A
2.5 @ 4.5 A
3.3 @ 4.5 A
3.3 @ 4.5 A
3.3 @ 4.5 A
3.3 @ 4.5 A
5.0 @ 3.0 A
5.0 @ 3.0 A
5.0 @ 3.0 A
5.0 @ 3.0 A
12.0 @ 1.25 A
12.0 @ 1.25 A
12.0 @ 1.25 A
12.0 @ 1.25 A
±12V @ ±.63A
Efficiency
85%
83%
86%
86%
86%
86%
87%
87%
87%
87%
87%
87%
87%
87%
87%
Model Number
AEE04F24-197
AEE04G48-197
AEE04F48-7
AEE04F48-97
AEE04F48-17
AEE04F48-197
AEE03A48-7
AEE03A48-97
AEE03A48-17
AEE03A48-197
AEE01B48-7
AEE01B48-97
AEE01B48-17
AEE01B48-197
AEE01BB48-7
NOTES:
Enable Function: “1” = negative logic enable, without “1” = positive logic enable
Trim Feature: “9” = Trim feature, without “9” = no Trim
Pin length: “7” = 5.6mm pin length

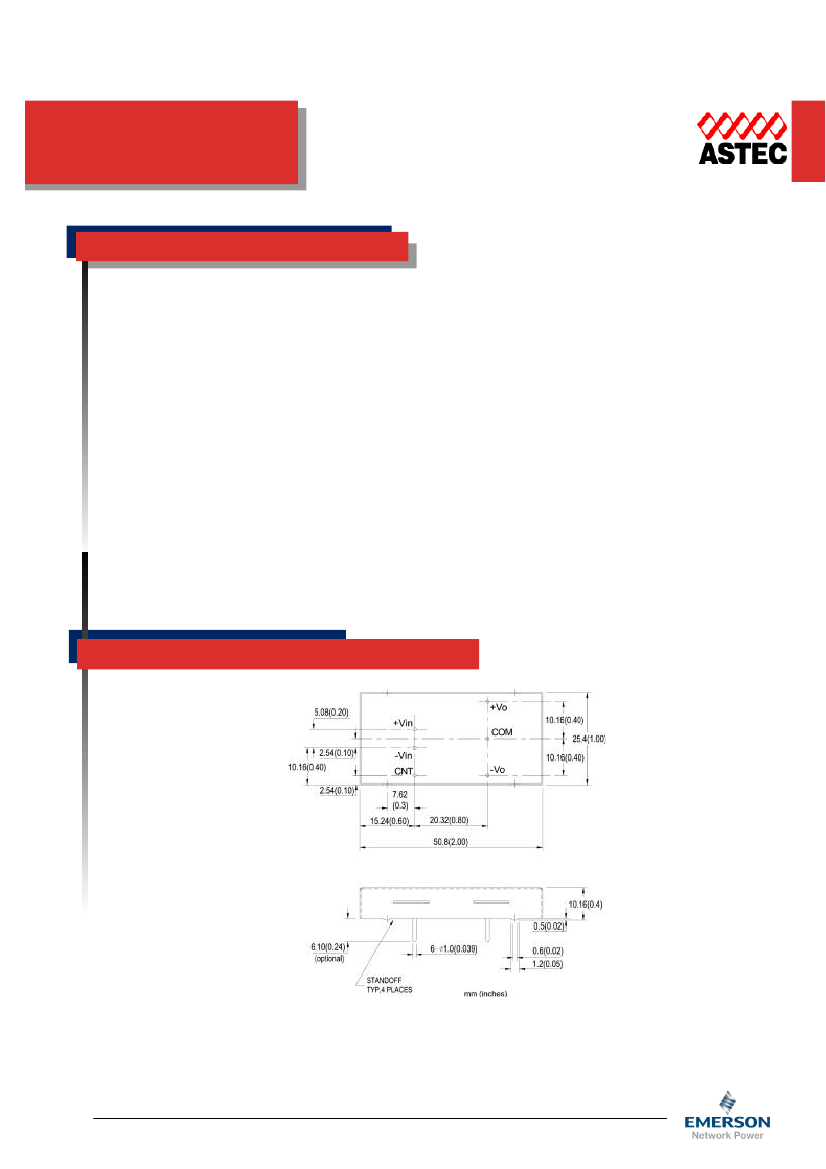

Mechanical Dimensions and Pin Assignments
Notes:
1. Refer to Technical Reference Note (App Note) for
recommended input/output filtering
2. All specifications are typical at nominal line, full load,
and 25°C unless otherwise noted.
3. All specifications subject to change without notice.
4. Mechanical drawings are for reference only.
www.astec.com Rev: June 03
