MJ2955-JQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MJ2955-JQR

MJ2955-JQR: Description15A, 60V, PNP, Si, POWER TRANSISTOR, TO-220SM, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size30KB，1 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

MJ2955-JQR Overview

15A, 60V, PNP, Si, POWER TRANSISTOR, TO-220SM, 3 PIN

MJ2955-JQR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SEMELAB
Parts packaging code	TO-220SM
package instruction	CHIP CARRIER, R-CBCC-N3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum collector current (IC)	15 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JESD-30 code	R-CBCC-N3
Number of components	1
Number of terminals	3
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	YES
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	2.5 MHz
Base Number Matches	1

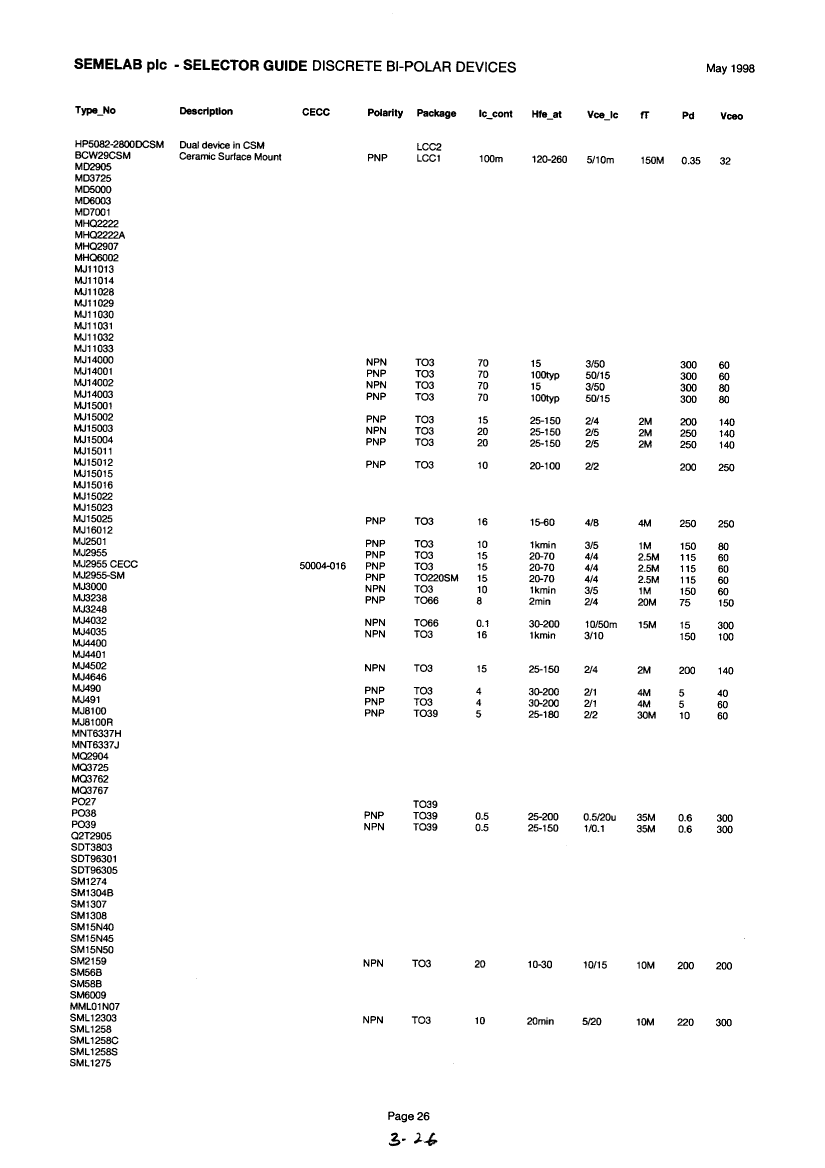

Preview

Download Datasheet

View All

MJ2955-JQR Related Products

	MJ2955-JQR	MJ2955CECC	MJ2955-JQRR1	MJ2955CECC-B	SM2159
Description	15A, 60V, PNP, Si, POWER TRANSISTOR, TO-220SM, 3 PIN	15A, 60V, PNP, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN	15A, 60V, PNP, Si, POWER TRANSISTOR, TO-220SM, 3 PIN	15A, 60V, PNP, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN	20A, 200V, NPN, Si, POWER TRANSISTOR, TO-3, TO-3, 2 PIN
Parts packaging code	TO-220SM	TO-204AA	TO-220SM	TO-204AA	TO-204AA
package instruction	CHIP CARRIER, R-CBCC-N3	FLANGE MOUNT, O-MBFM-P2	CHIP CARRIER, R-CBCC-N3	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Contacts	3	2	3	2	2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	15 A	15 A	15 A	15 A	20 A
Collector-emitter maximum voltage	60 V	60 V	60 V	60 V	200 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	20	20	20	10
JESD-30 code	R-CBCC-N3	O-MBFM-P2	R-CBCC-N3	O-MBFM-P2	O-MBFM-P2
Number of components	1	1	1	1	1
Number of terminals	3	2	3	2	2
Package body material	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED	METAL	METAL
Package shape	RECTANGULAR	ROUND	RECTANGULAR	ROUND	ROUND
Package form	CHIP CARRIER	FLANGE MOUNT	CHIP CARRIER	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	NO	NO
Terminal form	NO LEAD	PIN/PEG	NO LEAD	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	2.5 MHz	2.5 MHz	2.5 MHz	2.5 MHz	10 MHz
Is it lead-free?	Contains lead	Contains lead	Lead free	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	-
Maker	SEMELAB	-	SEMELAB	SEMELAB	SEMELAB
Is Samacsys	N	-	N	N	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	1	-
JEDEC-95 code	-	TO-3	-	TO-3	TO-3
