Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Low Impedance and Long Life for High Voltage, High Ripple Current Applications
Type AEB capacitors are it for high voltage applications like input
bus capacitors in board mounted miniature AC/DC supplies. The
AEB’s low impedance in ratings up to 450 Vdc, and long life, make
it ideal for power supply input and other high voltage applications.
The vertical, cylindrical cases make easy automatic mounting and
reflow soldering.
Highlights
½
+105
°C,
Up to 5000 Hour Load Life
½
Capacitance Range: 2.2 µF to 100 µF
½
Voltage Range: 160 Vdc to 450 Vdc
Specifications
Operating
Temperature:
Rated
Voltage:
Capacitance:
Capacitance Tolerance:
Life Test:
5000 h @ +105 °C, L — S Cases
4000 h @ +105 °C, K Case
3000 h @ +105 ºC, J Case
∆
Capacitance ± 20%
DF:
≤
200% of limit
DCL:
≤
100% of limit
–20 °C to +105 °C
160, 200, 250, 350, 400, 450 Vdc
2.2
µF
to 100
µF
±20% @ 120 Hz and +20 °C
Shelf Test:
1000 h @ 105 °C
∆
Capacitance ± 20%
DF:
≤
200% of limit
DCL:
≤
100% of limit

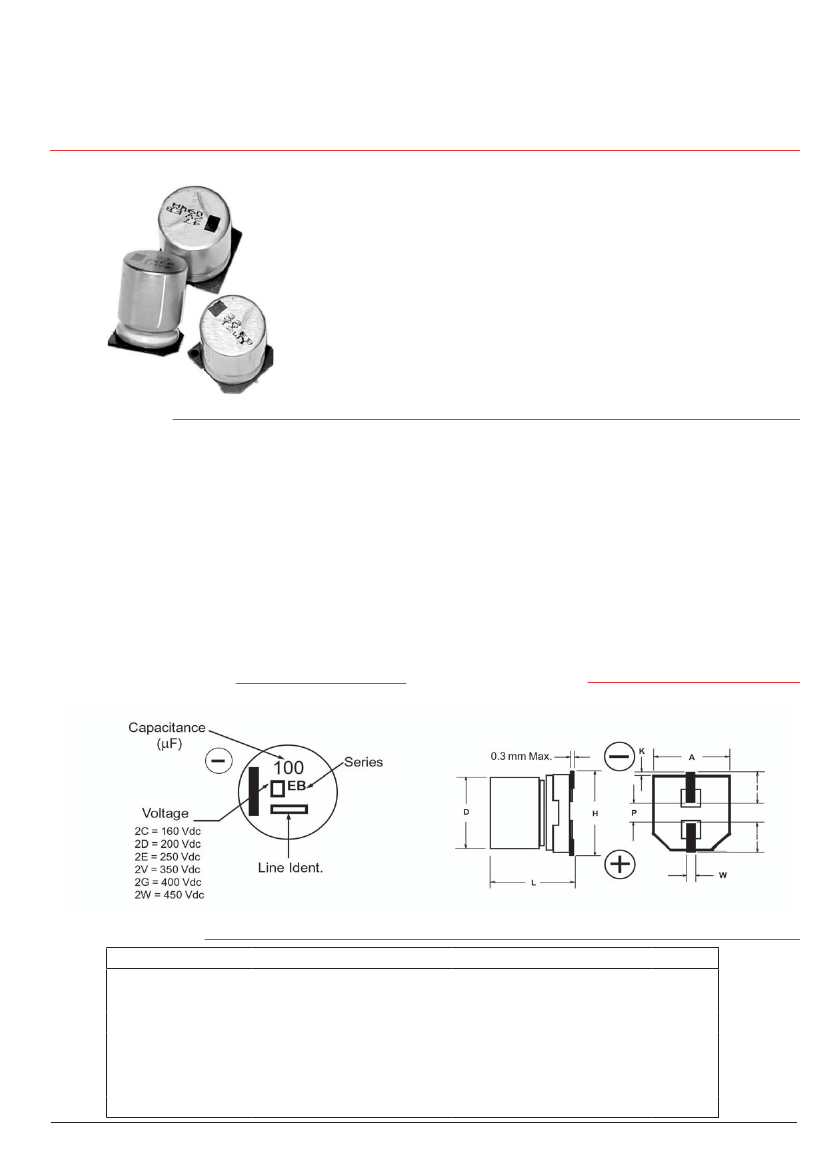

AEB Series Marking
Outline Drawing
Case Dimensions
Case Code
J
K
L
P
U
R
S
D ±0.5
10.0
10.0
12.5
16.0
16.0
18.0
18.0
L ±0.5
13.5
16.5
16.5
16.5
21.5
16.5
21.5
A ±0.2
10.3
10.3
13.5
17.0
17.0
19.0
19.0
H (max)
12
12
15
19
19
21
21
I (ref)
3.5
3.5
4.7
6.7
6.7
6.7
6.7
W
0.9 ±0.2
0.9 ±0.2
0.9 ±0.3
1.2 ±0.3
1.2 ±0.3
1.2 ±0.3
1.2 ±0.3
P (ref)
4.6
4.6
4.4
6.7
6.7
6.7
6.7
K (mm)
0.7 ± 0.2
0.7 ± 0.2
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
0.7 ± 0.3
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Ratings
Max.
Max.
Cap
(µF)
Catalog
Part Number
DCL
2 min
(µA)
10.0
33.0
47.0
68.0
68.0
100.0
22.0
33.0
47.0
68.0
100.0
10.0
22.0
33.0
47.0
68.0
10.0
22.0
33.0
47.0
3.3
4.7
10.0
22.0
33.0
2.2
3.3
4.7
10.0
22.0
AEB106M2CJ32T-F
AEB336M2CL32T-F
AEB476M2CP44T-F
AEB686M2CU44T-F
AEB686M2CR44T-F
AEB107M2CS44T-F
AEB226M2DL32T-F
AEB336M2DP44T-F
AEB476M2DR44T-F
AEB686M2DU44T-F
AEB107M2DS44T-F
AEB106M2EK32T-F
AEB226M2EP44T-F
AEB336M2ER44T-F
AEB476M2EU44T-F
AEB686M2ES44T-F
AEB106M2VP44T-F
AEB226M2VR44T-F
AEB336M2VU44T-F
AEB476M2VS44T-F
AEB335M2GJ32T-F
AEB475M2GK32T-F
AEB106M2GP44T-F
AEB226M2GU44T-F
AEB336M2GS44T-F
AEB225M2WJ32T-F
AEB335M2WK32T-F
AEB475M2WL32T-F
AEB106M2WR44T-F
AEB226M2WS44T-F
106
327
461
663
663
970
274
406
574
826
1210
160
340
505
715
1030
220
472
703
997
89
123
250
538
802
69
99
137
280
604
Dissipation
Factor @
120 Hz
20 °C
160 Vdc
0.15
0.15
0.15
0.15
0.15
0.15
200 Vdc
0.15
0.15
0.15
0.15
0.15
250 Vdc
0.15
0.15
0.15
0.15
0.15
350 Vdc
0.20
0.20
0.20
0.20
400 Vdc
0.24
0.24
0.24
0.24
0.24
450 Vdc
0.24
0.24
0.24
0.24
0.24
11.00
7.00
4.80
3.00
1.80
29
41
49
310
560
10 x 13.5
10 x 16.5
12.5 x 16.5
18 x 16.5
18 x 21.5
8.00
5.50
3.60
2.20
1.20
40
50
250
410
600
10 x 13.5
10 x 16.5
16 x 16.5
16 x 21.5
18 x 21.5
3.20
1.60
1.20
1.00
270
350
480
670
16 x 16.5
18 x 16.5
16 x 21.5
18 x 21.5
2.50
1.60
0.85
0.70
0.60
88
560
560
710
990
10 x 16.5
16 x 16.5
18 x 16.5
16 x 21.5
18 x 21.5
1.80
1.40
0.80
0.55
0.50
470
600
600
750
1060
12.5 x 16.5
16 x 16.5
18 x 16.5
16 x 21.5
18 x 21.5
3.00
1.80
1.40
0.55
0.80
0.50
70
470
600
750
750
1060
10 x 13.5
12.5 x 16.5
16 x 16.5
16 x 21.5
18 x 16.5
18 x 21.5
Max.
@ 100
20 °C
(Ω)
Max.
@ 105 °C
100 kHz
(mA)
Impedance Ripple Current
RoHS Compliant
Size (mm) Quantity
DxL
Reel
250
150
125
75
125
75
150
125
125
75
75
200
125
125
75
75
125
125
75
75
250
200
125
75
75
250
200
150
125
75
Part Numbering System
AEB
Type
106
Capacitance
105 = 1.0 µF
106 = 10.0 µF
107 = 100.0 µF
M
Capacitance
Tolerance
M = ±20%
2C
Voltage Code
2C = 160 Vdc
2D = 200 Vdc
2E = 250 Vdc
2V = 350 Vdc
2G = 400 Vdc
2W = 450 Vdc
J
Case
Code
32T
Packaging
Information
32 = Carrier tape
Width (mm)
T = Tape & Reel
B = bulk
-F
RoHS
Compliant
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C

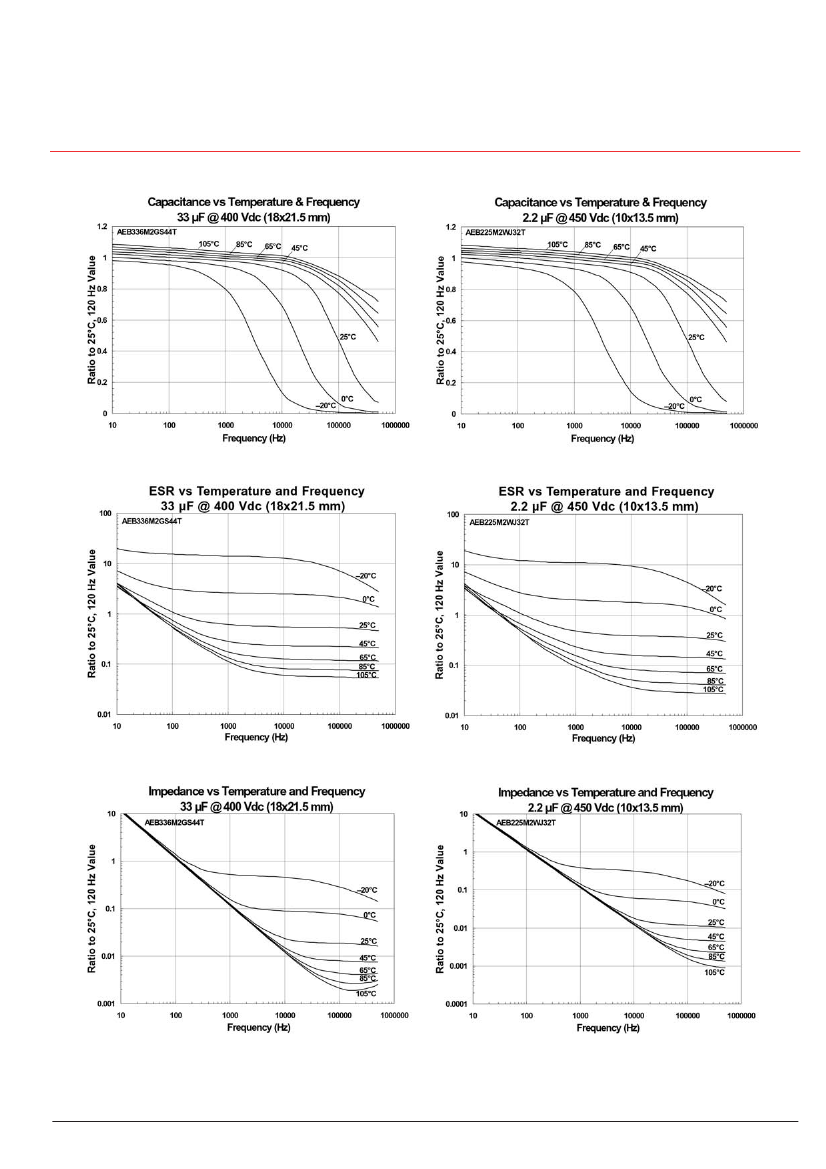

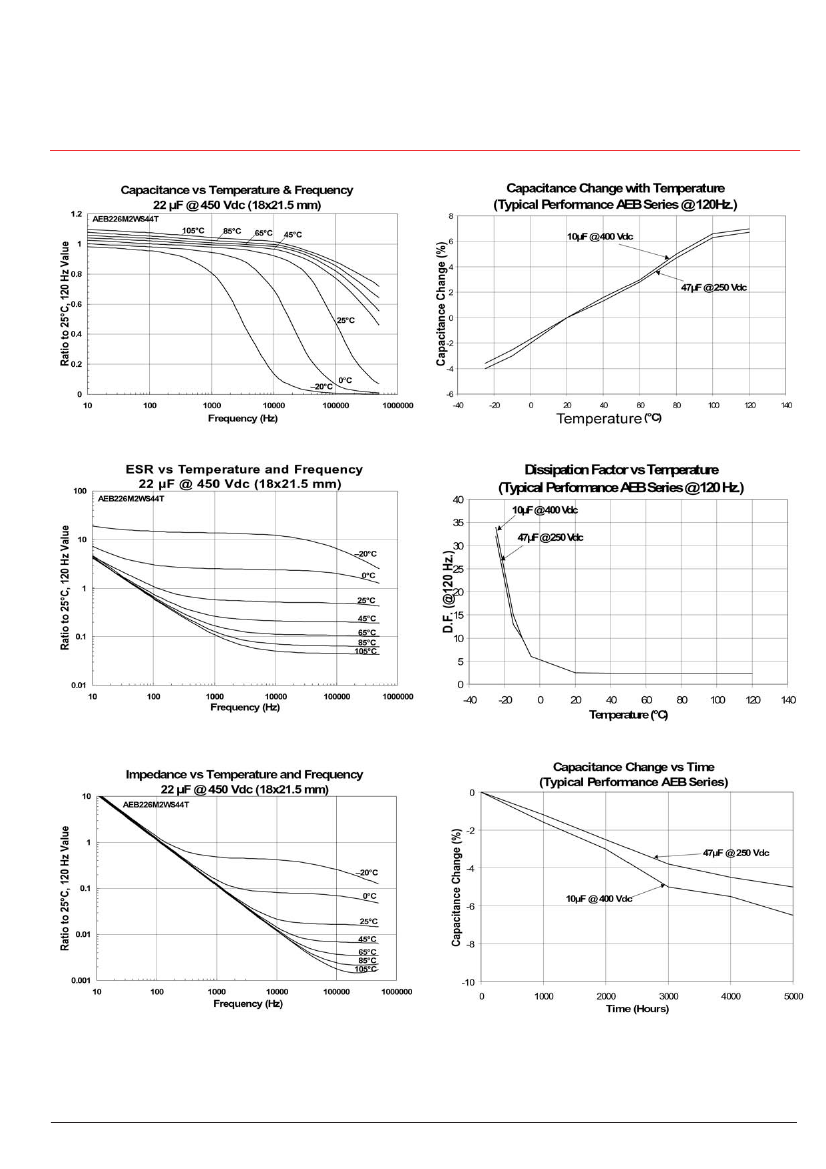

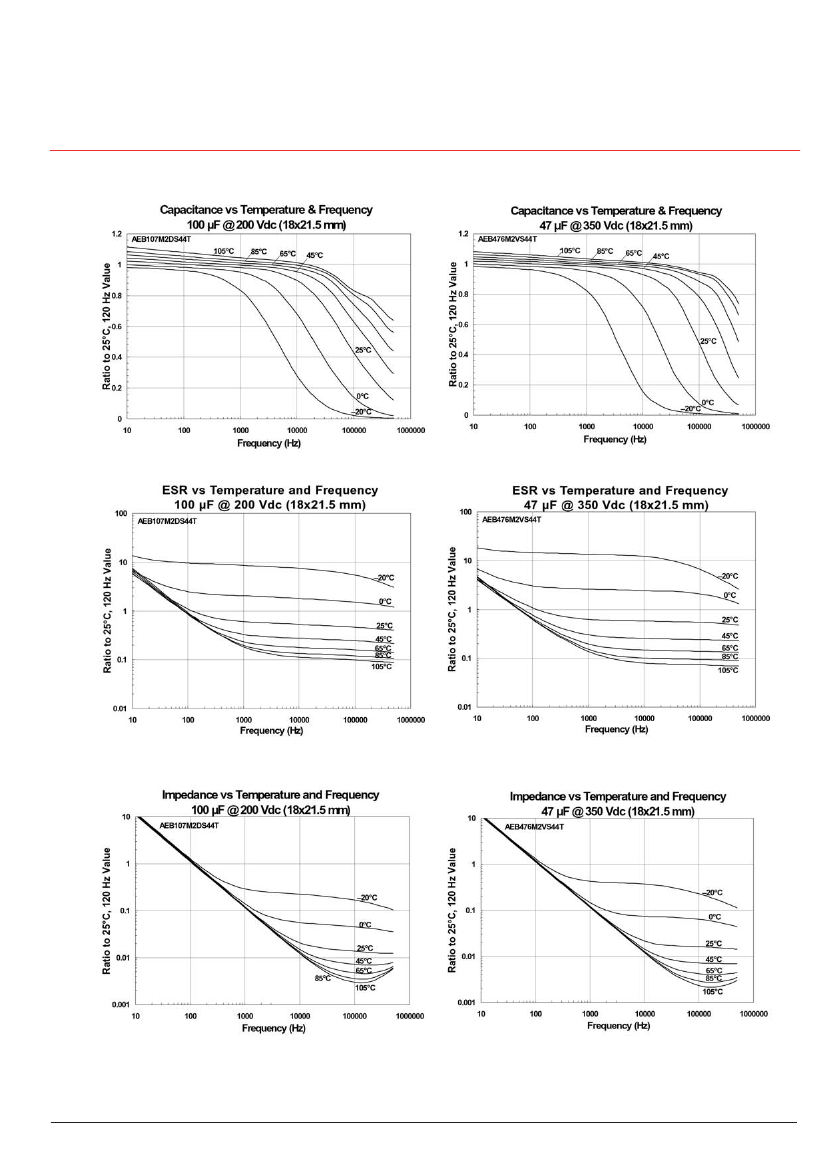

Typical Performance Curves
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type AEB
SMT Aluminum Electrolytic Capacitors - High Voltage, 105 °C
Cornell Dubilier
•
1605 E. Rodney French Blvd.
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
