RC1206LF-101M-150-M datasheet, PDF

Datasheet> All Categories > Passive components> RC network> RC1206LF-101M-150-M

RC1206LF-101M-150-M: DescriptionRC Network, Isolated, 0.125W, 100ohm, 50V, 0.000015uF, Surface Mount, 2 Pins, CHIP, ROHS COMPLIANT; CategoryPassive components RC network; File Size121KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

RC1206LF-101M-150-M Overview

RC Network, Isolated, 0.125W, 100ohm, 50V, 0.000015uF, Surface Mount, 2 Pins, CHIP, ROHS COMPLIANT

RC1206LF-101M-150-M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
capacitance	0.000015 µF
Capacitor Negative Tolerance	20%
Capacitor positive tolerance	20%
Capacitor temperature coefficient	-55/+20%
The first element resistor	100 Ω
length	3.2 mm
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of capacitor elements	1
Number of functions	1
Number of RC components	1
Number of resistor elements	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated (DC) voltage (URdc)	50 V
Rated power dissipation(P)	0.125 W
Resistor tolerance	20%
Resistor temperature coefficient	200 ppm/°C
Resistor/Capacitor Network Type	RC NETWORK
Maximum seat height	0.7 mm
surface mount	YES
Terminal shape	WRAPAROUND
width	1.6 mm
Operating Voltage	5 V
Base Number Matches	1

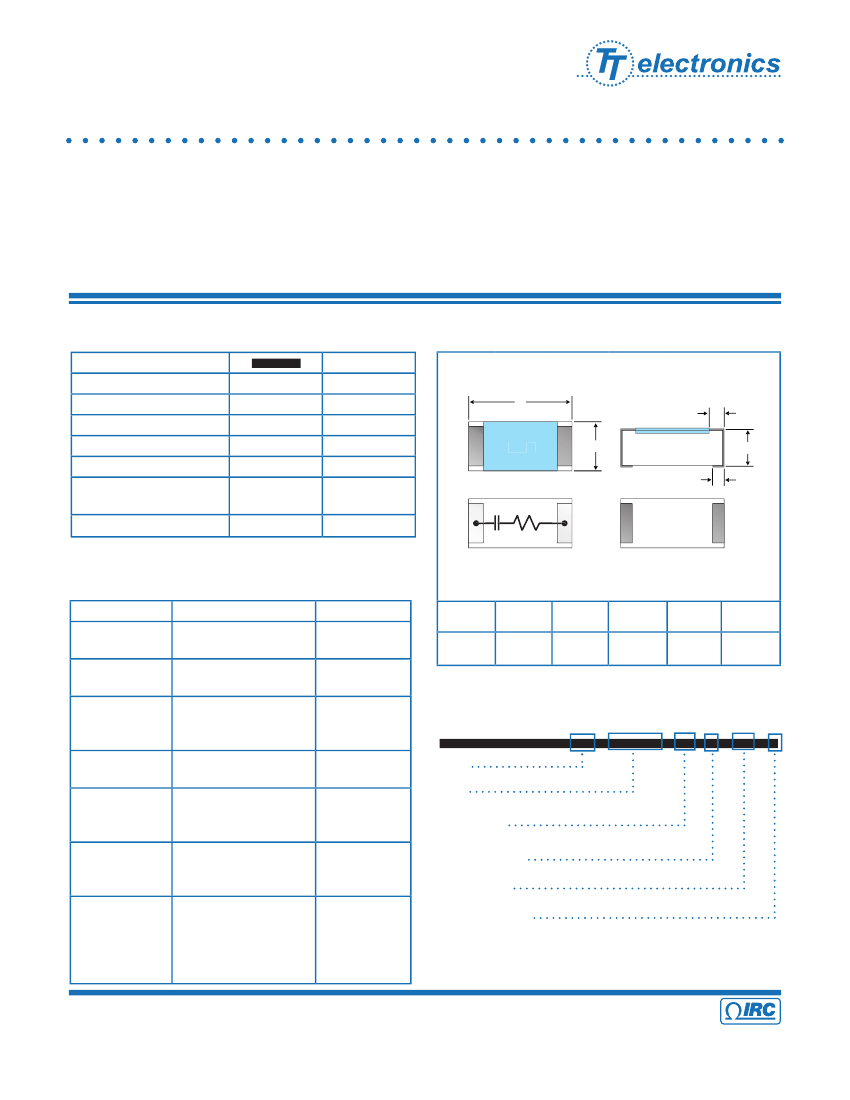

Preview

Download Datasheet

View All

Resistor/Capacitor

Chip Network

PCF RC Series

•

RoHS Compliant

•

Saves board space

•

Reduces component count

•

Resistor and capacitor on one 1206 size chip

IRC Advanced Film Division

Electrical Data

Resistor

Range (Ω)

Tolerance

Max Voltage

Power Rating

Operating Temperature

Temperature Coeffecient

(-55°C to +85°C)

Dissipation Factor

10 - 1K

10%, 20%

0.125W

Capacitor

10pF - 200pF

20%

50V

N/A

Physical Data

TOP

SIDE

-55°C + 125°C -55°C + 125°C

200 ppm/°C

N/A

+20% / - 55%

5% Max 1KHz

BOTTOM

Environmental Data

Test

Terminal

Strength

Resistance To

Soldering Heat

Resistance To

Vibration

Solerability

Temperature

Cycling

Terminal

Strength

Method

3mm bending

for 10 seconds

260°C ±5°C for

10 ±1 sec.

(10~55~10 Hz) for 1

min. Amplitude 1.5mm

3 directions for 2 hours

235°C ± 5°C

for 3± 0.5 sec.

-40°C/30 min.,

+125°C/ 30 min.,

100 cycles

70°C ±2°C, DC50V “on”

for 90 min. and “off” for

30 min. for 1,000 hours

70°C ±2°C,

90~95% RH

DC50V ”on” for 90 min.

and “off” for 30 min. for

1,000hours

Test Limits

No mechanical

damage

∆

R: ± 3%

∆

C: ±10%

∆

R: ± 3%

∆

C: ±10%

∆

R: ± 3%

∆

C: ±10%

∆

R: ± 3%

∆

C: ±10%

∆

R: ± 3%

∆

C: ±10%

Model

1.6±0.2

0.7±0.1

0.5±0.3

0.4±0.2

RC1206

3.2± 0.2

Ordering Data

Sample Part Number:

Family

Model

RC1206LF

PCF - RC1206LF - 330

K - 470 -

Resistor Code

Example: 330 = 33 , 101 = 100

Resistor Tolerance

K=10%, M=20%

Capacitor Code

Example: 470 = 47pF, 101 = 100pF

Capacitor Tolerance

Load Life In

Humidity

∆

R: ± 3%

∆

C: ±10%

M= ±20%

Packaging Available: Tubes, Tape & Reel

General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• Corpus Christi Texas 78411 USA

A subsidiary of

TT electronics plc

PCF RC Series Issue February 2006

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Email: afdsales@irctt.com • Website: www.irctt.com
