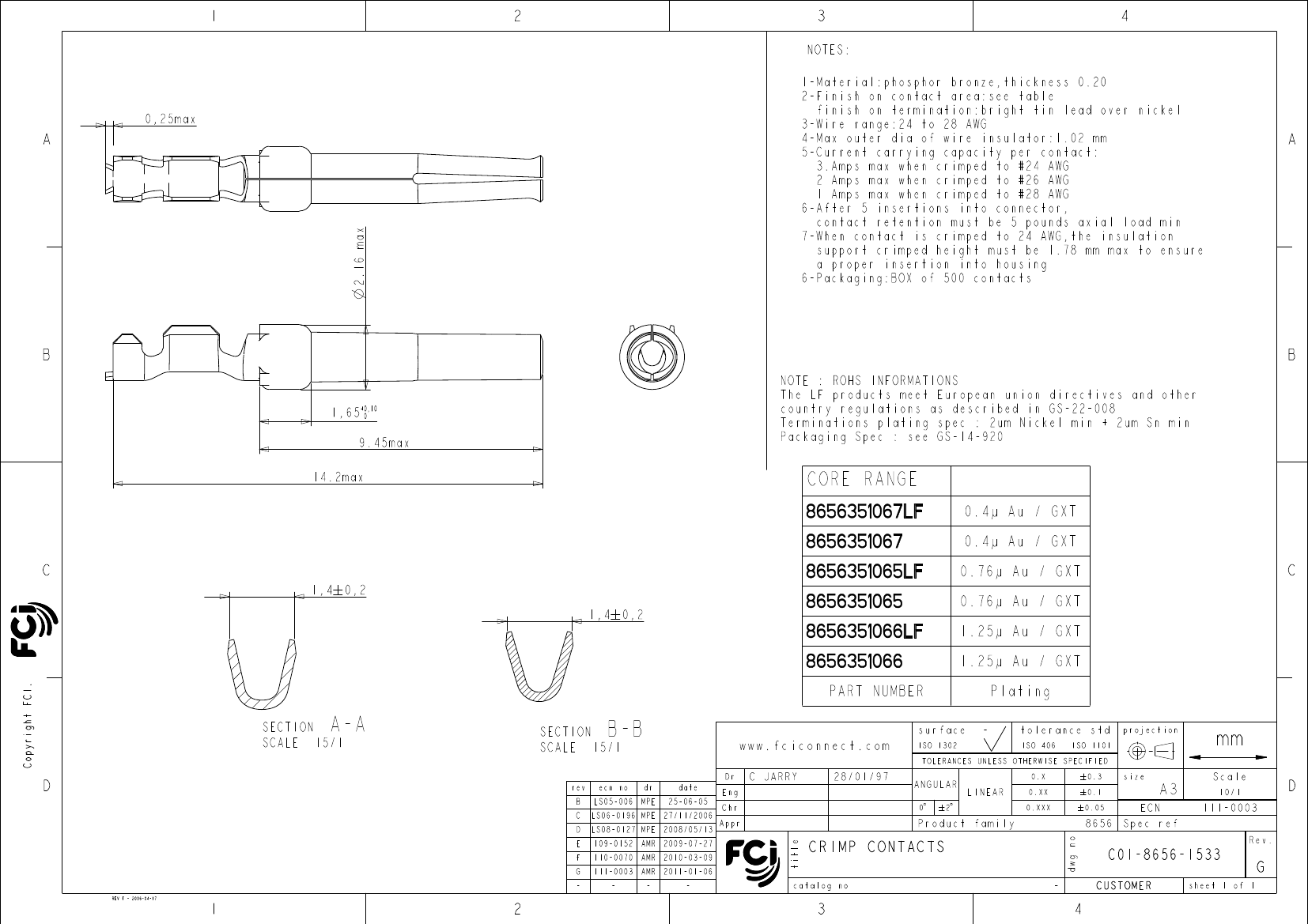

NOTES:
4
0,25 max
A
B
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
2.16 max
1-Material:phosphor bronze,thickness 0.20
2-Finish on contact area:see table
finish on termination:bright tin lead over nickel
3-Wire range:24 to 28 AWG
4-Max outer dia of wire insulator:1.02 mm
5-Current carrying capacity per contact:
3.Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 24 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
6-Packaging:BOX of 500 contacts
A
B
1,65
+0,10
0
9.45max
14.2max
CORE RANGE
8656351067LF
8656351067
0.4µ Au / GXT
0.4µ Au / GXT
0.76µ Au / GXT
0.76µ Au / GXT
1.25µ Au / GXT
1.25µ Au / GXT
Plating
-
tolerance std
ISO 406
ISO 1101
C
1,4 0,2
1,4 0,2
8656351065LF
8656351065
8656351066LF
8656351066
C
Copyright FCI.
PART NUMBER
SECTION
SCALE 15/1
A-A
SECTION
SCALE 15/1
rev
B
C
D
E
F
G
-
B-B
Dr
dr
MPE
date
25-06-05
Eng
Chr
Appr
surface
projection
www.fciconnect.com
C JARRY
28/01/97
ISO 1302
mm
Scale
10/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
ecn no
LS05-006
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
D
LS06-0196 MPE 27/11/2006
LS08-0127 MPE 2008/05/13
I09-0152
I10-0070
I11-0003
-
AMR 2009-07-27
AMR 2010-03-09
AMR 2011-01-06
-
-
I11-0003
Rev.
Product family
dwg no
title
8656 Spec ref
CRIMP CONTACTS
-
C01-8656-1533
CUSTOMER
sheet
1 of 1
G
catalog no
REV F - 2006-04-17
1
2
3
PDM: Rev:G
STATUS:
Released
4
Printed: Mar 05, 2011
.
