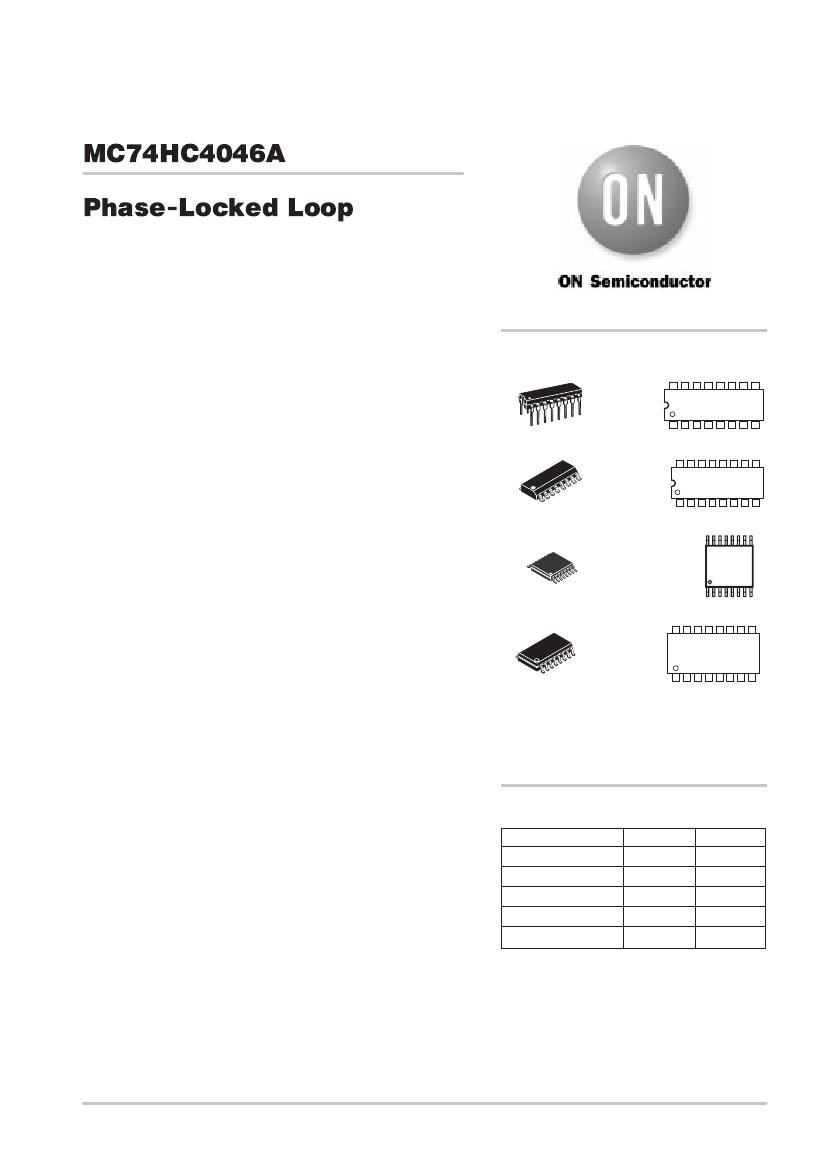

MC74HC4046A

Phase-Locked Loop

High–Performance Silicon–Gate CMOS

The MC74HC4046A is similar in function to the MC14046 Metal

gate CMOS device. The device inputs are compatible with standard

CMOS outputs; with pullup resistors, they are compatible with

LSTTL outputs.

The HC4046A phase–locked loop contains three phase

comparators, a voltage–controlled oscillator (VCO) and unity gain

op–amp DEMOUT. The comparators have two common signal inputs,

COMP IN, and SIG IN. Input SIG IN and COMP IN can be used directly

coupled to large voltage signals, or indirectly coupled (with a series

capacitor to small voltage signals). The self–bias circuit adjusts small

voltage signals in the linear region of the amplifier. Phase comparator

1 (an exclusive OR gate) provides a digital error signal PC1 OUT and

maintains 90 degrees phase shift at the center frequency between

SIG IN and COMP IN signals (both at 50% duty cycle). Phase

comparator 2 (with leading–edge sensing logic) provides digital error

signals PC2 OUT and PCP OUT and maintains a 0 degree phase shift

between SIG IN and COMP IN signals (duty cycle is immaterial). The

linear VCO produces an output signal VCOOUT whose frequency is

determined by the voltage of input VCO IN signal and the capacitor

and resistors connected to pins C1A, C1B, R1 and R2. The unity gain

op–amp output DEMOUT with an external resistor is used where the

VCO IN signal is needed but no loading can be tolerated. The inhibit

input, when high, disables the VCO and all op–amps to minimize

standby power consumption.

Applications include FM and FSK modulation and demodulation,

frequency synthesis and multiplication, frequency discrimination,

tone decoding, data synchronization and conditioning,

voltage–to–frequency conversion and motor speed control.

http://onsemi.com

MARKING

DIAGRAMS

PDIP–16

N SUFFIX

CASE 648

MC74HC4046AN

AWLYYWW

SO–16

D SUFFIX

CASE 751B

HC4046A

AWLYWW

TSSOP–16

DT SUFFIX

CASE 948F

SOEIAJ–16

F SUFFIX

CASE 966

HC40

46A

ALYW

74HC4046B

AWLYWW

•

Output Drive Capability: 10 LSTTL Loads

Low Power Consumption Characteristic of CMOS Devices

Operating Speeds Similar to LSTTL

Wide Operating Voltage Range: 3.0 to 6.0 V

Low Input Current: 1.0

µA

Maximum (except SIGIN and COMPIN)

In Compliance with the Requirements Defined by JEDEC Standard

No. 7A

Low Quiescent Current: 80

µA

Maximum (VCO disabled)

High Noise Immunity Characteristic of CMOS Devices

Diode Protection on all Inputs

Chip Complexity: 279 FETs or 70 Equivalent Gates

= Assembly Location

= Wafer Lot

= Year

= Work Week

ORDERING INFORMATION

Device

MC74HC4046AN

MC74HC4046AD

MC74HC4046ADR2

MC74HC4046AF

Package

PDIP–16

SOIC–16

SOIC–EIAJ

Shipping

2000 / Box

48 / Rail

2500 / Reel

See Note

NO TAG

MC74HC4046AFEL

SOIC–EIAJ

See Note

NO TAG

1. For ordering information on the EIAJ version of the

SOIC packages, please contact your local ON

Semiconductor representative.

Semiconductor Components Industries, LLC, 2000

March, 2000 – Rev. 7

Publication Order Number:

MC74HC4046A/D
