9029-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 9029-15

9029-15: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size260KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

9029-15 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE

9029-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	15 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.6
Base Number Matches	1

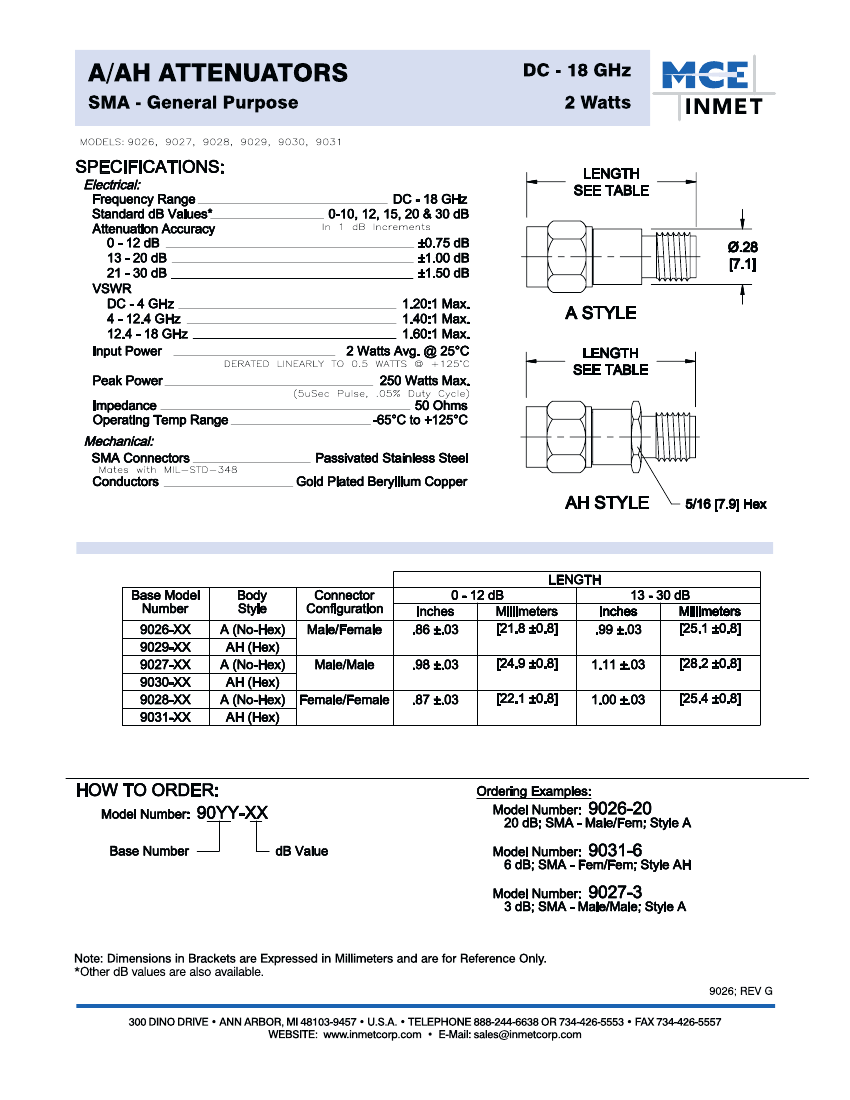

Preview

Download Datasheet

View All

9029-15 Related Products

	9029-15	9028-20	9029-0	9028-30	9027-0	9027-15
Description	Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE	Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT PACKAGE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-F, I/P POWER-MAX(PEAK)=250W	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-F, I/P POWER-MAX(PEAK)=250W	SMA-M, I/P POWER-MAX(PEAK)=250W	SMA-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	15 dB	20 dB	-	30 dB	-	15 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm	33.01 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4
Maximum operating frequency	18000 MHz	18000 MHz	18000 MHz	18000 MHz	18000 MHz	18000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Maximum voltage standing wave ratio	1.6	1.6	1.6	1.6	1.6	1.6
Base Number Matches	1	1	1	1	1	1
Maker	Cobham Semiconductor Solutions	-	-	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
