非照光式・ホリゾンタルタイプ
LS10/11 Series
Non-illuminated/Horizontal Type
LS10/11 Series
LS10
LS10K
LS10N/R

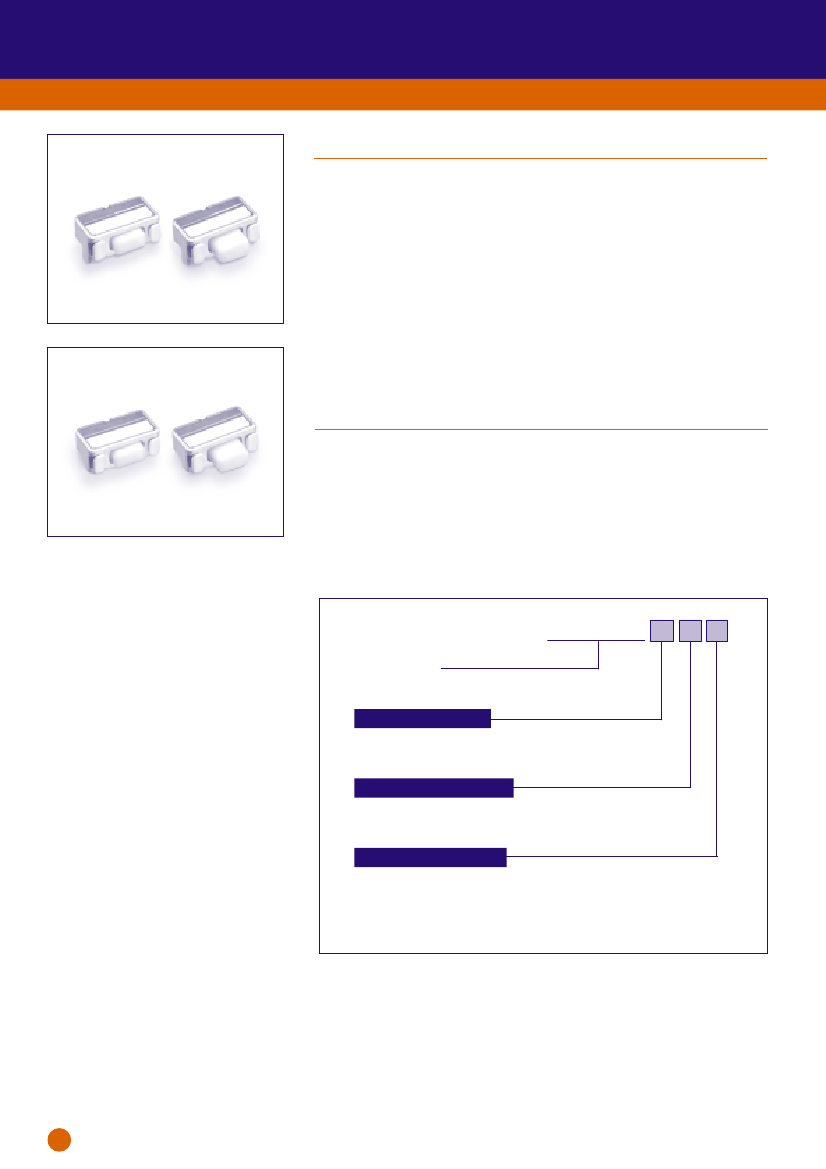

■ 特徴
Features
1. This horizontal-type switch allows the
side of the soldered PCB to be pushed.
2. The switch supports reflow soldering
and is totally waterproof.
1. ホリゾンタルタイプなので、
はんだ付
基板に対して側面よりプッシュできま
す。
2. リフローはんだが可½な完全防水タイ
プです。
K 2.8(L)×4.5(W)×1.7
:
(H)
mm
N/R 3.5(L)×4.5(W)×1.7
:
(H)
mm
LS11
LS11K
LS11N
■ 用途
Applications
LUMISWITCH, LS10/11 series, can be used
as a function control switch in the following
applications.
Mobile terminal equipment, TV, VCR,
cameras, etc.
K 2.8(L)×4.5(W)×1.7
:
(H)
mm
N 3.5(L)×4.5(W)×1.7
:
(H)
mm
ルミスイッチLS10/11シリーズは操½
用スイッチとして次のような½品に½用
できます。
携帯端末機器、
TV、
VTR、
カメラ等。
●½品コード
Product code
LS10/11
N 2 T
〈シリーズ
Series〉
10.ダボ付きタイプ
Dowel type
11.フラットタイプ
Flat type
スイッチ長さ
K 2.8mm
:
N 3.5mm
:
R 3.5mm
:
Length
操½荷重
Operating force
※ 1 1.18N(120gf)
:
2 1.57N(160gf)
:
※ 3 2.16N(220gf)
:
包装½態 P
acking mode
無記入 バルク包装
:
Non-coded Bulk packing
:
T テーピング(基本納入½態)
:
T Taping (standard mode)
:
※ 未量産品のため、
ご½用の際にご相談願います。
Products with an "※" mark are not yet mass produced.
Please let us know when you will be using them.
86
CITIZEN ELECTRONICS CO., LTD. JAPAN 2010.12
●電気的 機械的特性
・
Item
Electro-Mechanical Characteristics
(Ta 25℃)
スイッチ½動力
Switch operating force
1.18N
1.57N
2.16N
DC12V 20mA
100mΩ以下
100mΩ or less
100MΩ以上
100MΩ or more
AC250V 1分間
AC250V for one minute
20ms以下
20ms or less
0.2mm
1.18N±0.39N
1.57±0.49N
2.16±0.59N
最大定格
Maximum rating
接触抵抗
Contact resistance
絶縁抵抗
Insulation resistance
耐電圧
Withstanding voltage
バウンス
Bounce
ストローク
Stroke
½動力
Operating force
動½寿½
Operating life (times)
20万回以上
10万回以上
5万回以上
200,000 or more 100,000 or more 50,000 or more

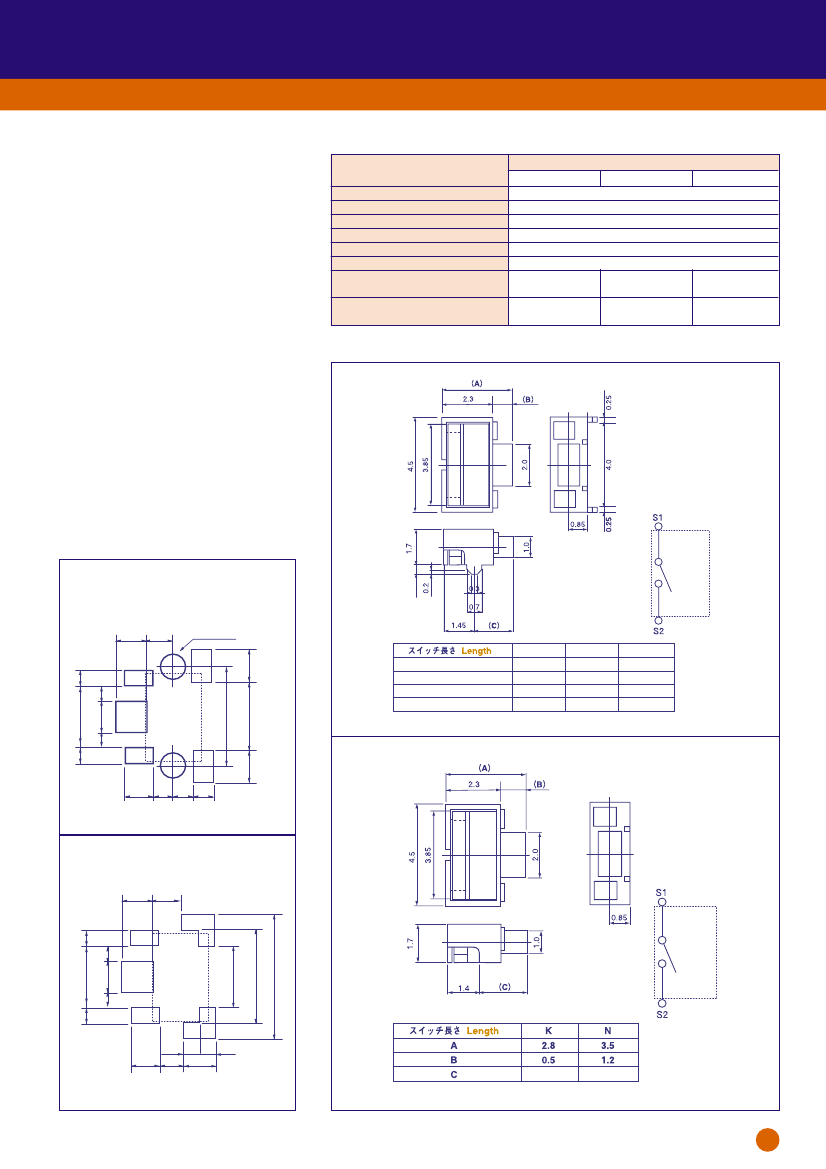

●外½寸法図
LS10
Outline drawing
回路図
Circuit diagram
推奨はんだ付けパターン
The following soldering patterns are recommended for
reflow-soldering:
LS10
1.0
1.1
2-φ0.9±0.1(穴
Holes)
(D)
※
K
1.1
N
3.5
1.2
2.05
0.45
R
3.5
1.2
2.05
0.8
S1
A
B
C
2.8
0.5
1.35
0.45
0.7
0.7
1.3
4.3
D
3.1
2.7
※
単½
Unit
: mm
0.7
0.7
S2
※
1.2
0.7
0.6
0.7
※金属ケースダミーパターン
Metal case dummy pattern
LS11
1.0
1.1
1.1
LS11
回路図
Circuit diagram
S1
0.7
※
2.7
1.3
0.7
3.1
4.1
※
0.7
0.7
S2
0.65
1.2
0.7
※
0.65
1.3
5.3
1.4
※金属ケースダミーパターン
Metal case dummy pattern
2.1
単½
Unit
: mm
