ACTP-1506PC15R-RC datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ACTP-1506PC15R-RC

ACTP-1506PC15R-RC: DescriptionThreshold Detector; CategoryWireless rf/communication Radio frequency and microwave; File Size299KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

ACTP-1506PC15R-RC Overview

Threshold Detector

ACTP-1506PC15R-RC Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Is Samacsys	N
RF/Microwave Device Types	THRESHOLD DETECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

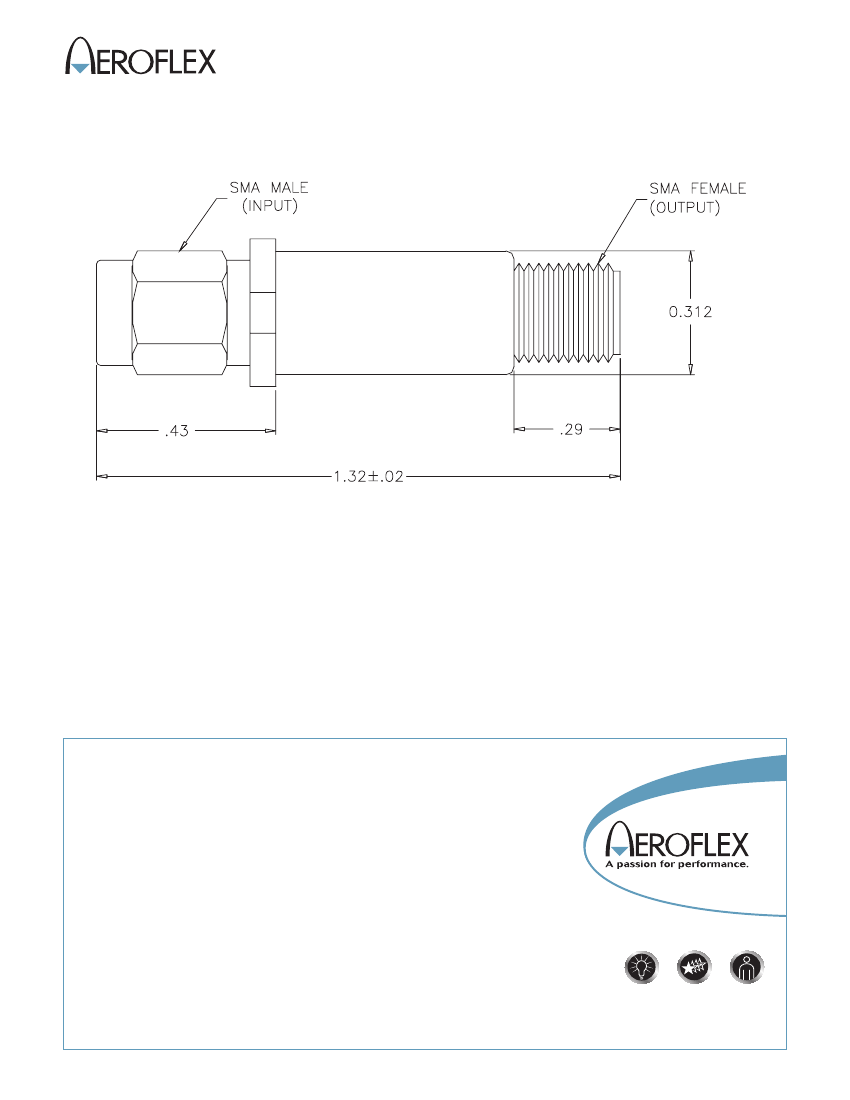

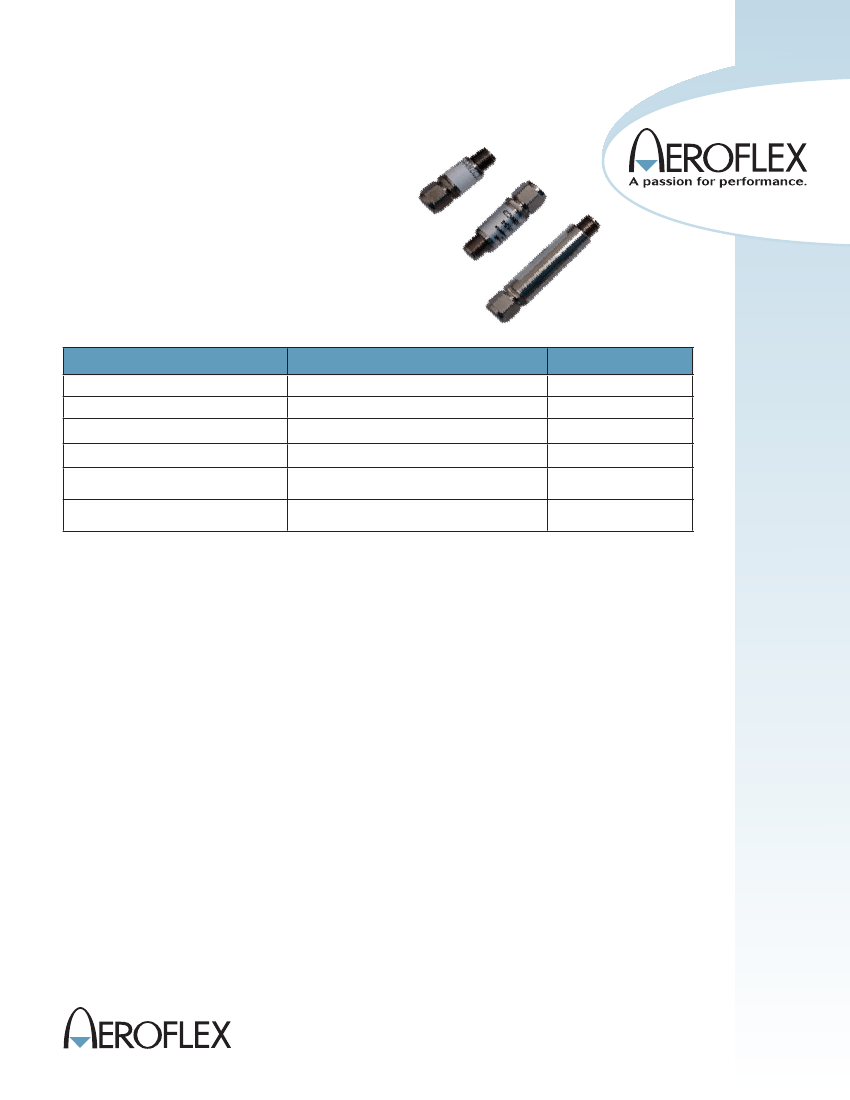

ACTP-1506

Coaxial Tunnel Diode Detector

Features:

•

Contains hermetically sealed modules, inter-

nal RF matching, DC return, and RF bypass

capacitor.

The video port is protected from static or

transient charges.

Input impedance matching.

Models may be chosen for broadband RF

performance of for optimized narrow bands

•

Specifications:

Parameter

Frequency Range (min)

Sensitivity (min)

Flatness vs. Frequency (max)

Typical TSS

Typical VSWR

Nominal Video Capacitance

Specification

8 – 18

650

Units

GHz

mV/mW

±dB

dBm

Ratio

0.7

-50

2.3:1

Notes:

Maximum input power: +14 dBm (3 dB guardband

for +17 dBm possible burnout)

Sensitivity is measured into an open circuit load

(>10k ohm).

VSWR is measured at or below -20 dBm input

power level.

Video capacitance is used for RF bypass. This value

can be changed if required for video response time.

Contact the factory for more information.

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

OPTIONAL HIGH-REL SCREENING

(Ref MIL-PRF-38534):

Stabilization Bake per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883,

Method 2001

Burn-in per MIL-STD-883, Method 1015

Leak Test per MIL-STD-883, Method 1014

External Visual per MIL-STD-883, Method 2009

Environmental Specifications:

Designed to meet:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp: -55°C to +125°C

Storage Temp: -65°C to +150°C

Humidity: MIL-STD-202F, M103, Cond B

Shock: MIL-STD-202F, M213, Cond B

Altitude: MIL-STD-202F, M105, Cond B

Vibration: MIL-STD-202F, M204, Cond B

Thermal Shock: MIL-STD-202F, M107, Cond A

Temperature Cycle: MIL-STD-202F, M105C, Cond D

SIGNAL & CONTROL SOLUTIONS

Revision Date: 10/5/2013

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
