Single-Phase Energy Measurement IC with

8052 MCU, RTC, and LCD Driver

ADE7566/ADE7569/ADE7166/ADE7169

GENERAL FEATURES

Wide supply voltage operation: 2.4 V to 3.7 V

Internal bipolar switch between regulated and battery inputs

Ultralow power operation with power-saving modes (PSM)

Full operation: 4 mA to 1.6 mA (PLL clock dependent)

Battery mode: 3.2 mA to 400 μA (PLL clock dependent)

Sleep mode

Real-time clock (RTC) mode: 1.5 μA

RTC and LCD mode: 27 μA (LCD charge pump enabled)

Reference: 1.2 V ± 0.1% (10 ppm/°C drift)

64-lead RoHS package options

Lead frame chip scale package (LFCSP)

Low profile quad flat package (LQFP)

Operating temperature range: −40°C to +85°C

MICROPROCESSOR FEATURES

8052-based core

Single-cycle 4 MIPS 8052 core

8052-compatible instruction set

32.768 kHz external crystal with on-chip PLL

Two external interrupt sources

External reset pin

Low power battery mode

Wake-up from I/O, temperature change, alarm, and

universal asynchronous receiver/transmitter (UART)

LCD driver operation

Temperature measurement

Real-time clock

Counter for seconds, minutes, and hours

Automatic battery switchover for RTC backup

Operation down to 2.4 V

Ultralow battery supply current: 1.5 μA

Selectable output frequency: 1 Hz to 16.384 kHz

Embedded digital crystal frequency compensation for

calibration and temperature variation 2 ppm resolution

Integrated LCD driver

108-segment driver for the ADE7566/ADE7569 and

104-segment driver for the ADE7166/ADE7169

2×, 3×, or 4× multiplexing

LCD voltages generated internally or with external resistors

Internal adjustable drive voltages up to 5 V independent

of power supply level

On-chip peripherals

UART, SPI or I

C, and watchdog timer

Power supply monitoring with user-selectable levels

Memory: 16 kB flash memory, 512 bytes RAM

Development tools

Single-pin emulation

IDE-based assembly and C-source debugging

ENERGY MEASUREMENT FEATURES

Proprietary analog-to-digital converters (ADCs) and digital

signal processing (DSP) provide high accuracy active

(Watt), reactive (VAR), and apparent energy (VA)

measurement

Less than 0.1% error on active energy over a dynamic

range of 1000 to 1 @ 25°C

Less than 0.5% error on reactive energy over a dynamic

range of 1000 to 1 @ 25°C (ADE7569 and ADE7169 only)

Less than 0.5% error on root mean square (rms)

measurements over a dynamic range of 500 to 1 for

current (I

rms

) and 100 to 1 for voltage (V

rms

) @ 25°C

Supports IEC 62053-21, IEC 62053-22, IEC 62053-23,

EN 50470-3 Class A, Class B, and Class C, and ANSI C12-16

Differential input with programmable gain amplifiers (PGAs)

supports shunts, current transformers, and di/dt current

sensors (ADE7569 and ADE7169 only)

Two current inputs for antitamper detection in the

ADE7166/ADE7169

High frequency outputs proportional to I

rms

, active, reactive,

or apparent power (AP)

Table 1.

Part No.

ADE7566

ADE7569

ADE7166

ADE7169

Anti-

Tamper

Yes

Watt, VA,

rms

, V

rms

Yes

VAR

Yes

di/dt Sensor

Yes

Rev. A

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice.

No license is granted by implication or otherwise under any patent or patent rights of Analog

Devices.Trademarks and registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.461.3113

ADE7566/ADE7569/ADE7166/ADE7169

TABLE OF CONTENTS

General Features ............................................................................... 1

Energy Measurement Features........................................................ 1

Microprocessor Features.................................................................. 1

Revision History ............................................................................... 3

General Description ......................................................................... 4

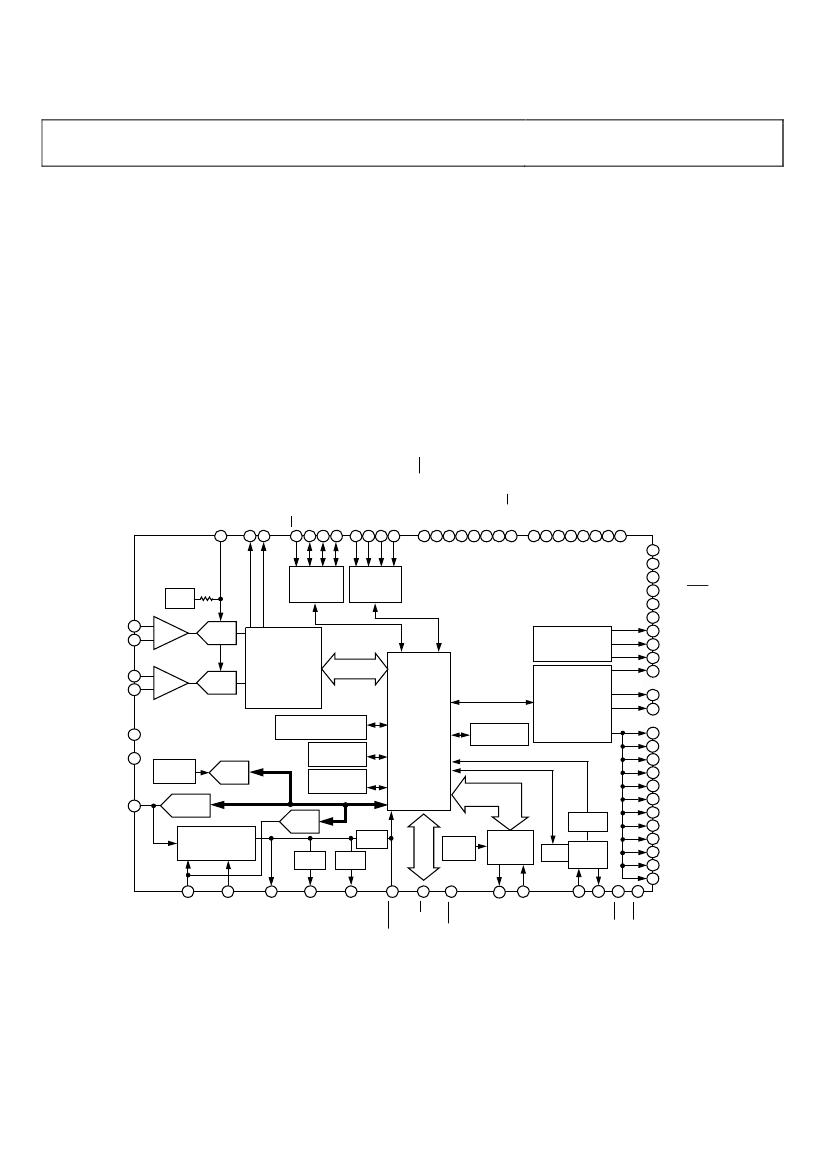

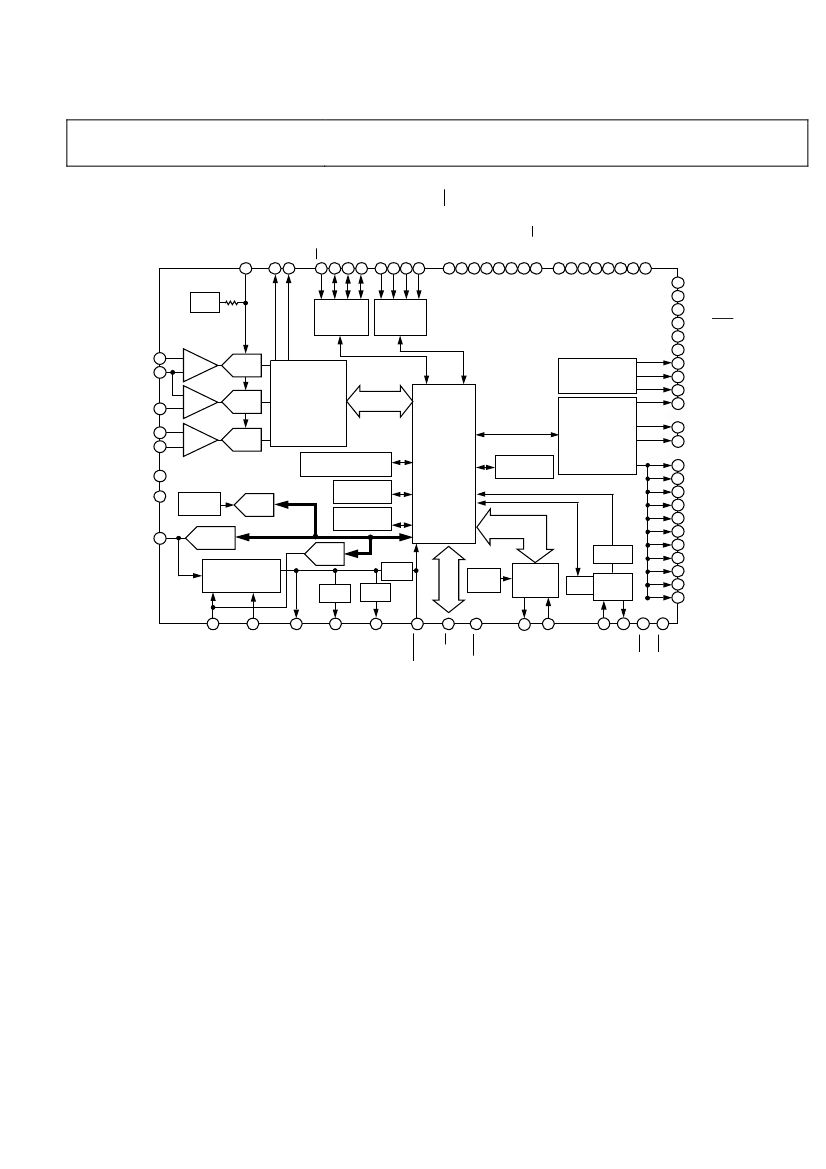

Functional Block Diagrams............................................................. 4

Specifications..................................................................................... 6

Energy Metering ........................................................................... 6

Analog Peripherals ....................................................................... 7

Digital Interface ............................................................................ 8

Timing Specifications ................................................................ 10

Absolute Maximum Ratings.......................................................... 15

Thermal Resistance .................................................................... 15

ESD Caution................................................................................ 15

Pin Configuration and Function Descriptions........................... 16

Typical Performance Characteristics ........................................... 18

Terminology .................................................................................... 22

SFR Mapping ................................................................................... 23

Power Management........................................................................ 25

Power Management Register Details ....................................... 25

Power Supply Architecture........................................................ 28

Battery Switchover...................................................................... 28

Power Supply Monitor Interrupt (PSM).................................. 29

Using the Power Supply Features ............................................. 31

Operating Modes ............................................................................ 33

PSM0 (Normal Mode) ............................................................... 33

PSM1 (Battery Mode) ................................................................ 33

PSM2 (Sleep Mode).................................................................... 33

3.3 V Peripherals and Wake-Up Events................................... 34

Transitioning Between Operating Modes ............................... 35

Using the Power Management Features .................................. 35

Energy Measurement ..................................................................... 37

Access to Energy Measurement SFRs ...................................... 37

Access to Internal Energy Measurement Registers................ 37

Energy Measurement Registers ................................................ 40

Energy Measurement Internal Registers Details.................... 41

Interrupt Status/Enable SFRs .................................................... 44

Analog Inputs.............................................................................. 46

Analog-to-Digital Conversion.................................................. 47

Fault Detection ........................................................................... 50

di/dt Current Sensor and Digital Integrator for the

ADE7569/ADE7169................................................................... 51

Power Quality Measurements................................................... 53

Phase Compensation ................................................................. 55

RMS Calculation ........................................................................ 55

Active Power Calculation .......................................................... 58

Active Energy Calculation ........................................................ 60

Reactive Power Calculation for the ADE7569/ADE7169..... 63

Reactive Energy Calculation for the ADE7569/ADE7169 ... 64

Apparent Power Calculation..................................................... 68

Apparent Energy Calculation ................................................... 69

Ampere-Hour Accumulation ................................................... 70

Energy-to-Frequency Conversion............................................ 71

Energy Register Scaling ............................................................. 72

Energy Measurement Interrupts .............................................. 72

Temperature, Battery, and Supply Voltage Measurements........ 73

Temperature Measurement ....................................................... 75

Battery Measurement................................................................. 75

External Voltage Measurement ................................................ 76

8052 MCU CORE Architecture.................................................... 78

MCU Registers............................................................................ 78

Basic 8052 Registers ................................................................... 80

Standard 8052 SFRs.................................................................... 81

Memory Overview ..................................................................... 81

Addressing Modes...................................................................... 82

Instruction Set ............................................................................ 84

Read-Modify-Write Instructions ............................................. 86

Instructions That Affect Flags .................................................. 86

Dual Data Pointers ......................................................................... 88

Interrupt System ............................................................................. 89

Standard 8052 Interrupt Architecture ..................................... 89

Interrupt Architecture ............................................................... 89

Interrupt Registers...................................................................... 89

Interrupt Priority........................................................................ 90

Interrupt Flags ............................................................................ 91

Interrupt Vectors ........................................................................ 93

Interrupt Latency........................................................................ 93

Context Saving............................................................................ 93

Watchdog Timer ............................................................................. 94

LCD Driver...................................................................................... 96

Rev. A | Page 2 of 144

ADE7566/ADE7569/ADE7166/ADE7169

LCD Registers ..............................................................................96

LCD Setup ....................................................................................99

LCD Timing and Waveforms ....................................................99

Blink Mode................................................................................ 100

Display Element Control......................................................... 100

Voltage Generation .................................................................. 101

LCD External Circuitry........................................................... 101

LCD Function in PSM2........................................................... 101

Flash Memory ............................................................................... 103

Overview ................................................................................... 103

Flash Memory Organization................................................... 104

Using the Flash Memory ......................................................... 104

Protecting the Flash Memory ................................................. 107

In-Circuit Programming ......................................................... 108

Timers ............................................................................................ 109

Timer Registers......................................................................... 109

Timer 0 and Timer 1................................................................ 111

Timer 2 ...................................................................................... 112

PLL ................................................................................................. 114

PLL Registers ............................................................................ 114

Real-Time Clock........................................................................... 116

RTC Registers ........................................................................... 116

Read and Write Operations .................................................... 119

RTC Modes ............................................................................... 119

RTC Interrupts ......................................................................... 119

RTC Calibration ....................................................................... 120

UART Serial Interface...................................................................121

UART Registers .........................................................................121

UART Operation Modes ..........................................................124

UART Baud Rate Generation ..................................................125

UART Additional Features ......................................................127

Serial Peripheral Interface (SPI)..................................................128

SPI Registers ..............................................................................128

SPI Pins.......................................................................................131

SPI Master Operating Modes ..................................................132

SPI Interrupt and Status Flags .................................................133

C Compatible Interface..............................................................134

Serial Clock Generation ...........................................................134

Slave Addresses..........................................................................134

C Registers...............................................................................134

Read and Write Operations .....................................................135

C Receive and Transmit FIFOs.............................................136

I/O Ports .........................................................................................137

Parallel I/O.................................................................................137

I/O Registers ..............................................................................138

Port 0...........................................................................................141

Port 1...........................................................................................141

Port 2...........................................................................................141

Determining the Version of the ADE7566/ADE7569..............142

Outline Dimensions......................................................................143

Ordering Guide .........................................................................144

REVISION HISTORY

Revision History: ADE7566/ADE7569/ADE7166/ADE7169

12/07—Revision A: Initial Combined Version

Revision History: ADE7566/ADE7569

12/07—Rev. 0 to Rev. A

Added ADE7166/ADE7169 .............................................. Universal

Changes to Table 1 ............................................................................1

Changes to Ordering Guide.........................................................144

11/07—Revision 0: Initial Version

Rev. A | Page 3 of 144

Recommended Resources

What is a full range of active devices?

Alarm circuit using 555 time base integrated circuit

NEC mobile phone charger circuit diagram

Ultrasonic receiver using high amplification factor integrated circuit and VMOS circuit

Multipurpose pocket two-way alarm circuit

Electronic relay phase failure protection circuit

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
