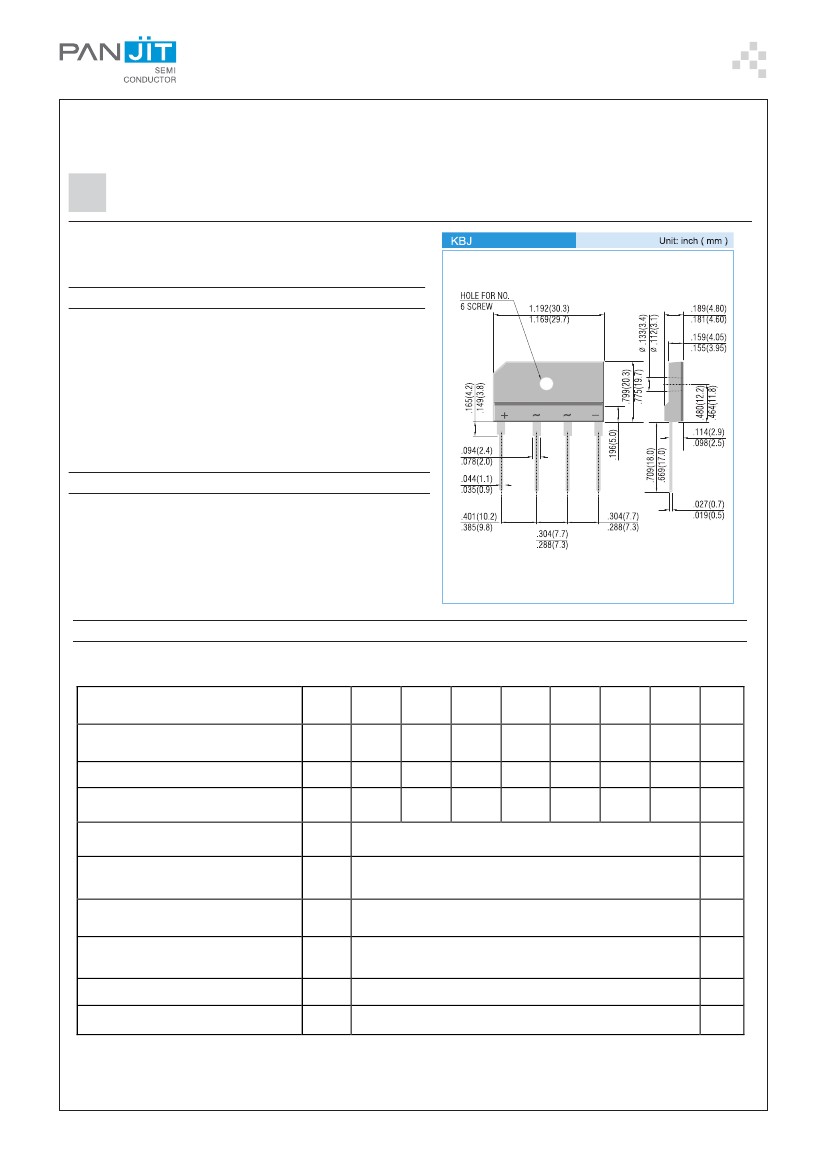

DATA SHEET

KBJ2000~KBJ2010

SILICON BRIDGE RECTIFIERS

VOLTAGE - 50 to 1000 Volts CURRENT - 25.0 Amperes

FEATURES

• Plastic material has Underwriters Laboratory

Flammability Classification 94V-O

• Ideal for printed circuit board

• Reliable low cost construction utilizing molded plastic technique

• Surge overload rating: 400 Amperes

• High temperature soldering guaranteed:

260°C/10 seconds/.375"(9.5mm) lead length at 5 lbs. (2.3kg) tension

• Pb free product are available : 99% Sn above can meet RoHS environment

substance directive request

MECHANICAL DATA

Case: Reliable low cost construction utilizing

molded plastic technique

Terminals: Leads solderable per MIL-STD-750,

Method 2026

Mounting position: Any

Mounting torque: 20 in. lb. Max.

Weight: 7.056g

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25°C ambient temperature unless otherwise specified. Resistive or inductive load, 60Hz.

For Capacitive load derate current by 20%.

KBJ

2000

KBJ

2001

100

KBJ

2002

200

140

200

KBJ

2004

400

280

400

KBJ

2006

600

420

600

KBJ

2008

800

560

800

KBJ

2010

1000

700

1000

PARAMETER

SYMBOL

UNITS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Current for Resistive

Load at Tc =55℃

Non-repetitive Peak Forward Surge Current, Rated

Load

Maximum Forward Voltage per Bridge

Element at 20A Specified Current

Maximum Reverse Leakage Current at Rated

@ TA=25℃

Typical Thermal Resistance(Fig 3 )

Operating Junction and Storage Temperature

Range

RRM

RMS

FSM

300

1.1

1.2

-50 TO +15 0

QJC

, T

STG

℃

NOTES : Device mounted on 100mm *100mm * 1.6mm Cu Plate Heatsink.

STAD-JAN.28.2005

PAGE . 1

KBJ2010 Related Products

	KBJ2010	KBJ2002	KBJ2001	KBJ2000	KBJ2004	KBJ2006	KBJ2008
Description	Bridge Rectifier Diode, 1 Phase, 25A, 1000V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 200V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 100V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 50V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 400V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 600V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN	Bridge Rectifier Diode, 1 Phase, 25A, 800V V(RRM), Silicon, PLASTIC, KBJ, 4 PIN
Maker	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation
package instruction	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
Contacts	4	4	4	4	4	4	4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4	R-PSFM-T4
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Maximum output current	25 A	25 A	25 A	25 A	25 A	25 A	25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	200 V	100 V	50 V	400 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1	1
Is Samacsys	N	-	N	N	N	N	N

Recommended Resources

Egg warming circuit

2x80WHI-FI power amplifier 02

QM-N5 type gas sensor single carbon oxide alarm circuit

AD7712 functional block diagram

Low dropout voltage regulator circuit diagram

Pressure gauge circuit using magnetic sensitive components

[PSoC4 Experience] Driving COG LCD Display via SPI (Video): [b]COG LCD is a new thing. This website has promoted it and many friends have won awards (cute MP3 players...) By chance, I was lucky enough to get the COG LCD evaluation board [/b] PCA8538 [b], and t...; sacq MCU

About FIR filter design problem: Hello everyone, I am not a digital signal processor, but I want to use FIR filter to do a small experiment recently. Due to time constraints, I don't have time to learn from scratch, so I would like t...; sk2400 DSP and ARM Processors

Analysis of the problem of unstable signal and no output when connected to power on of wireless pressure sensor: [align=left][color=#333333][font=sans-serif, Arial, Verdana, "][size=13px] [b]Wireless[/b][b] Pressure Sensor[/b] is a battery-powered, high-precision intelligent pressure measuring instrument with wi...; 上海铭控 Sensor

A copy of the English document of F28M35X: I hope this helps you guys...; liyuye627 Analogue and Mixed Signal

What does this code mean?: 这串代码是什么意思USART_ClockInitStructure.USART_Clock = USART_Clock_Disable;USART_ClockInitStructure.USART_CPOL = USART_CPOL_Low;USART_ClockInitStructure.USART_CPHA = USART_CPHA_2Edge;USART_ClockInitStructure...; 羁人k stm32/stm8

Design of DC power supply LC filter power supply essence version (I): [i=s]This post was last edited by bqgup on 2018-8-21 12:52[/i] This post teaches you how to design your own DC power supply, set the voltage and current by yourself, and select capacitors through theo...; bqgup Creative Market
