ADC-024: Description2mm DIAMETER, DC POWER PLUG OR JACK; Categorysemiconductor Other integrated circuit (IC); File Size205KB，3 Pages; ManufacturerAdam Tech

Download Datasheet View All

ADC-024 Overview

2mm DIAMETER, DC POWER PLUG OR JACK

Preview

Download Datasheet

View All

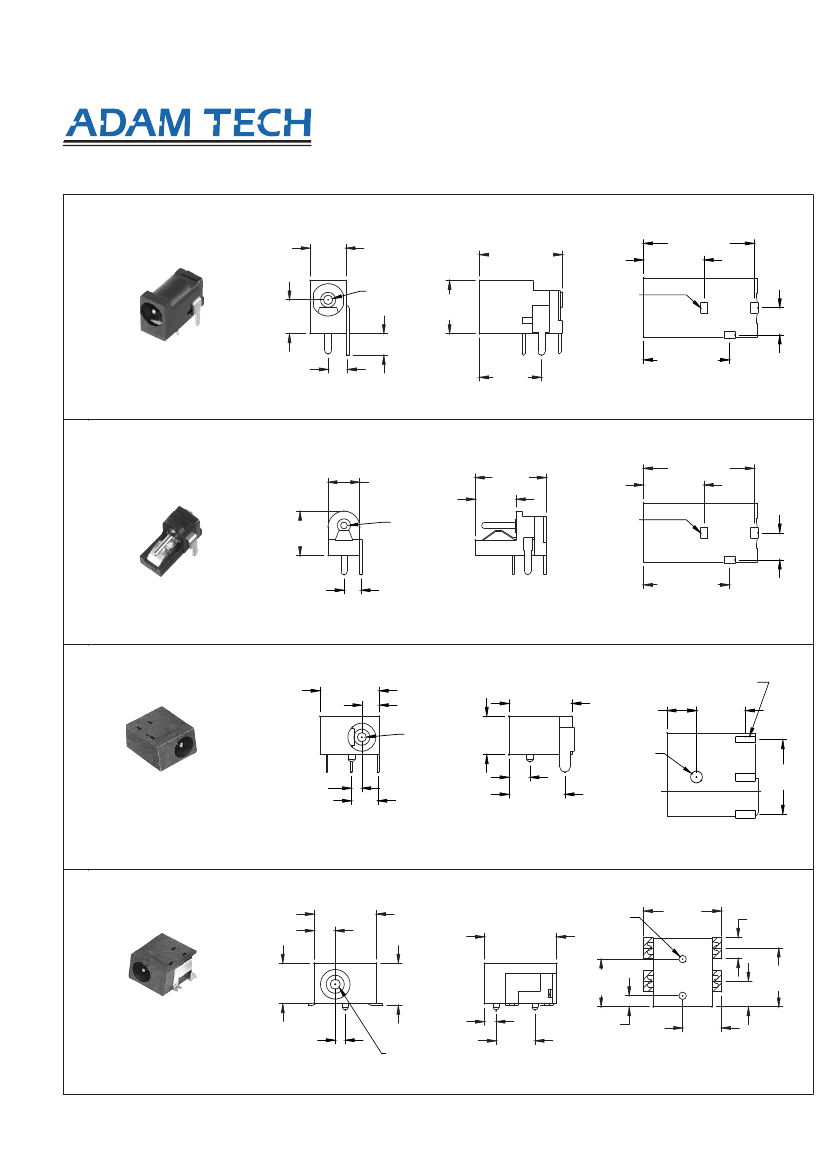

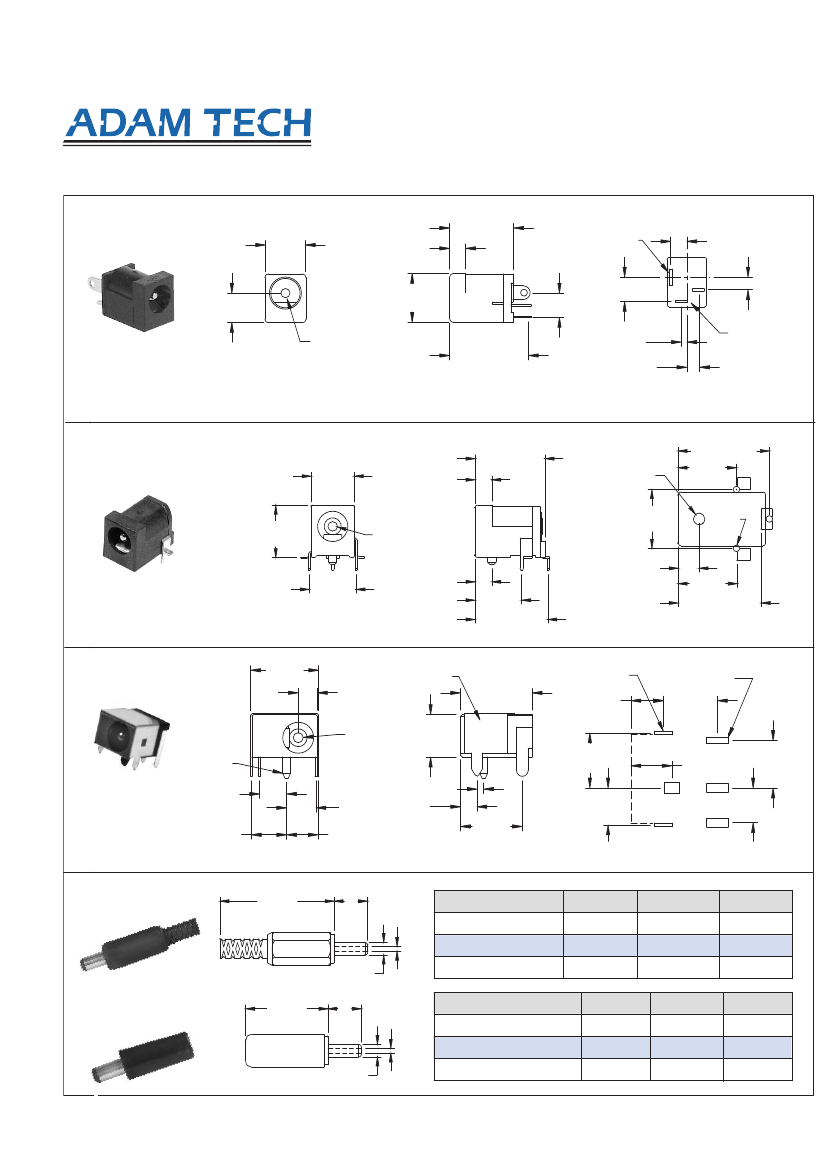

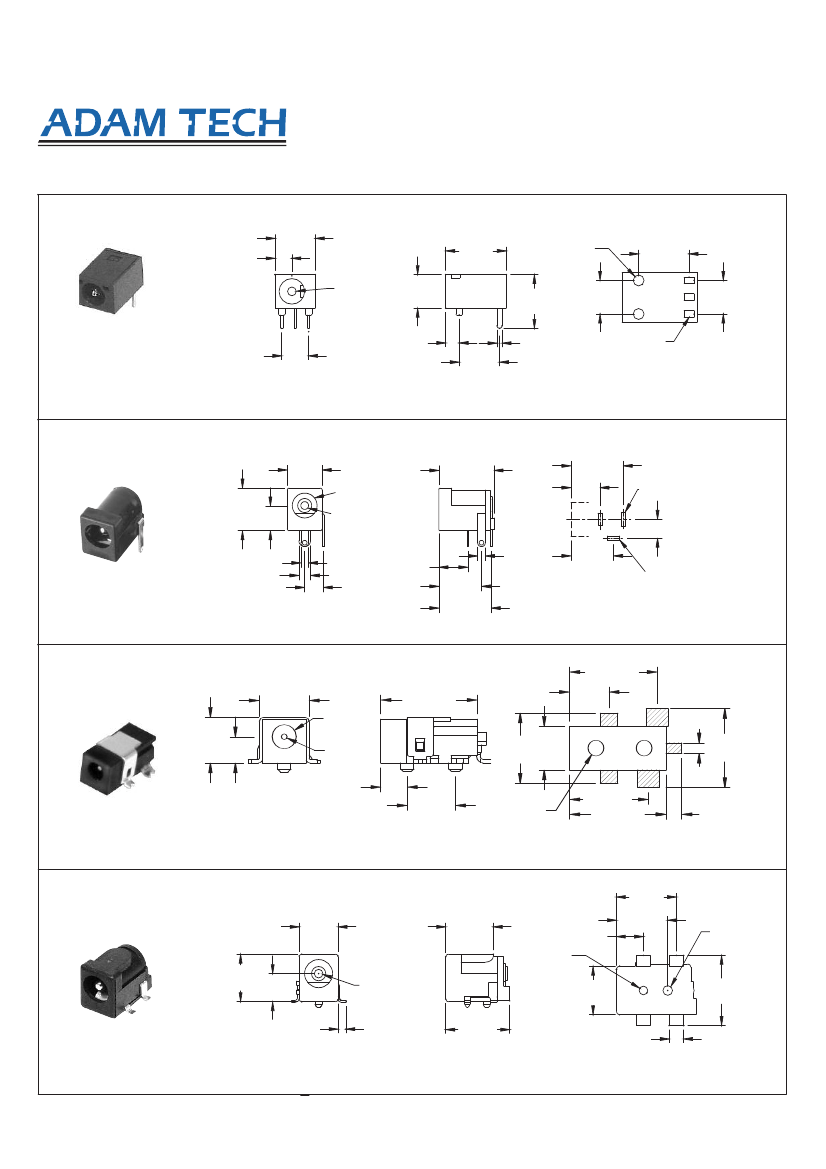

DC POWER JACKS

Adam Technologies, Inc.

ADC-007

.197

[5.00]

ø.039 [1.00]

OR

ø.051 [1.30]

.185

[4.70]

.126

[3.20]

.106 [2.70]

.340 [8.60]

.340

[8.60]

RECOMENDED PCB LAYOUT

Recommended PCB Layout

.291

[7.40]

.437 [11.10]

.453 [11.50]

.240 [6.10]

.031 X .059

[0.80 X 1.50]

.106

[2.70]

PC BOARD AND PANEL MOUNT

ADC SERIES

ADC-007-3

ADC-009

.197

[5.00]

ø.039 [1.00]

OR

ø.051 [1.30]

.457

[11.60]

.250

[6.35]

.031 X .059

[0.80 X 1.50]

.106

[2.70]

.437 [11.10]

.240 [6.10]

.278

[7.05]

ADC-009-3

.106 [2.70]

.340 [8.60]

Recommended PCB Layout

RECOMENDED PCB LAYOUT

ADC-011

.335

[8.50]

.031 X .047

[0.80 X 1.20]

.098

[2.50]

ø.039 [1.00]

OR

ø.051 [1.30]

.217

[5.50]

.354 [9.00]

.118

[3.00]

ø.047

[1.20]

.300

[7.60]

.315

[8.00]

.197

[5.00]

ADC-011-3

.059

[1.50]

.118

[3.00]

.150

[3.80]

Recommended

PCB LAYOUT

RECOMENDED

PCB Layout

ADC-021

.315 [8.00]

.106

[2.70]

.366 [9.30]

ø.039

[1.00]

.417

[10.60]

.114

[2.90]

.205

[5.20]

.212

[5.40]

.059

[1.50]

.256

[6.50]

.138

[3.50]

.209

[5.30]

.315

[8.00]

ADC-021-3

.051

[1.30]

ø.039 [1.00]

OR

ø.051 [1.30]

.197

[5.00]

.059

[1.50]

Recommended

PCB LAYOUT

RECOMENDED

PCB Layout

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM
