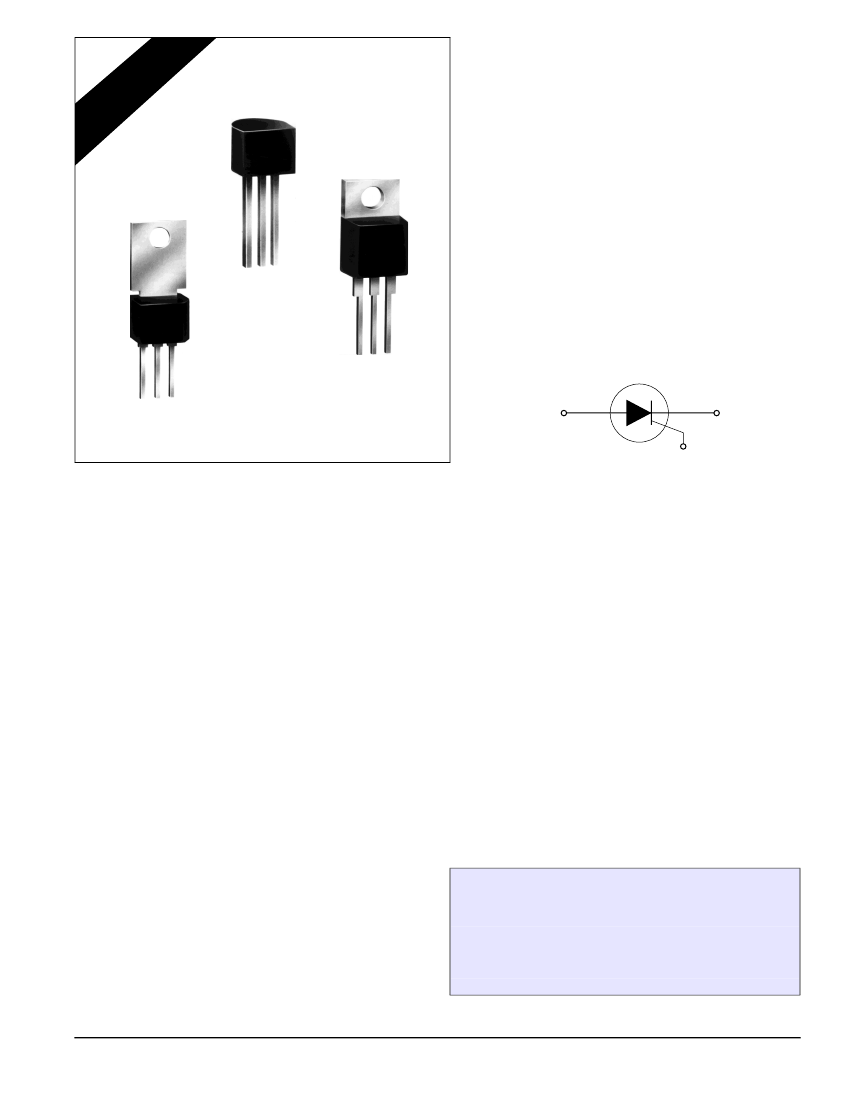

TO - 92
THERMOTAB
TO-220AB
TO-202AB
A
K
G
Sensitive SCRs
(0.8 – 10 Amps)
5
General Description
The Teccor Electronics, Inc. line of sensitive SCR semiconduc-
tors are half-wave unidirectional gate-controlled rectifiers (SCR-
thyristor) which complement Teccor's line of power SCRs. This
group of packages offers ratings of 0.8-10 amps, and 50-600
volts with gate sensitivities of 12-500 microamps. If gate currents
in the 10-50 milliamp ranges are required, please consult Tec-
cor's non-sensitive SCR technical data sheets.
Tape-and-reel packaging is available for the TO-92 package.
Please consult factory for more information.
Variations of devices covered in this data sheet are available for
custom design applications. Please consult the factory for more
information.
Electrically Isolated Packages
This group of Teccor sensitive SCRs is available in a choice of
three different product packages. The TO-220AB and TO-92 are
electrically isolated where the case or tab is internally isolated to
allow the use of low cost assembly and convenient packaging
techniques.
Features
•
•
•
•
Electrically-isolated To-220AB package
High Voltage Capability up to 600 Volts
High Surge Capability — up to 100 Amps
Glass Chip Passivation
Glass Passivation
Teccor's line of SCRs features glass-passivated junctions to
ensure long term device reliability and parameter stability. Tec-
cor's glass offers a rugged, reliable barrier against junction con-
tamination.
Teccor Electronics, Inc.
(972) 580-7777
5-1
Sensitive SCRs
Electrical Specifications
Part
Number
Non-Isolated
I
T
Maximum
On-State
Current
(1)
V
DRM
&
V
RRM
Repetitive
Peak
Off-State
Forward &
Reverse
Voltage
I
GT
DC Gate
Trigger
Current
(2) (11) (13)
I
DRM
&
I
RRM
Peak Off-State
Current at
V
DRM
& V
RRM
(19)
V
TM
Peak
On-State
Voltage
T
C
= 25°C
(3) (10)
V
GT
DC Gate
Trigger Voltage
(4) (11)
I
H
DC Holding
Current
Initial On-State
Current = 20mA
(5) (15) (18)
I
GM
Peak Gate
Current
(16)
A
TYPE
K
A
G
TO-202AB
See “Package
Dimensions”
section for
variations.
T106F1
T106A1
T106B1
T106C1
T106D1
Amps
I
T(RMS)
MAX
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
I
T(AV)
MAX
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
Volts
MIN
50
100
200
300
400
500
600
50
100
200
300
400
500
600
µAmps
MAX
200
200
200
200
200
200
200
500
500
500
500
500
500
500
µAmps
T
C
=
25°C
MAX
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
T
C
=
110°C
MAX
100
100
100
100
100
100
100
100
100
100
100
100
100
100
Volts
MAX
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
T
C
=
- 40°C
MAX
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Volts
T
C
=
25°C
MAX
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
T
C
=
110°C
MIN
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
mAmps
T
C
= 25°C
Amps
MAX
5.0
5.0
5.0
5.0
5.0
5.0
5.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
4.0
Amps
T106E1
T106M1
T107F1
T107A1
T107B1
T107C1
T107D1
T107E1
T107M1
General Notes
•
•
Teccor 2N5060 and 2N6564 Series devices conform to all JEDEC
registered data. See specifications table on page 5-2.
The case temperature (TC) is measured as shown on dimensional
outline drawings. See “Package Dimensions” section of this
catalog.
All measurements (except I
GT
) are made with an external resistor
R
GK
= 1kΩ unless otherwise noted.
All measurements are made at 60Hz with a resistive load at an
ambient temperature of +25
o
C unless otherwise specified.
Operating temperature (T
J
) is -65
o
C to + 110
o
C for “EC” Series
devices; -65
o
C to +125
o
C for “2N” Series devices; -40
o
C to +125
o
C
for “TCR” Series; and -40
o
C to +110
o
C for all others.
Storage temperature range (T
S
) is -65
o
C to + 150
o
C for TO-92
devices; -40
o
C to +150
o
C for TO-202 devices; and -40
o
C to
+125
o
C for all others.
Lead solder temperature is a maximum of +230
o
C for 10 seconds
maximum
≥
1/16" (1.59mm) from case.
(7)
(8)
(9)
•
•
•
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
•
•
Electrical Specification Notes
(1)
(2)
(3)
(4)
(5)
(6)
See Figures 5.1 through 5.9 for current ratings at specified operat-
ing case temperatures.
See Figure 5.10 for I
GT
vs T
C
.
See Figure 5.11 for instantaneous on-state current (i
T
) vs on-state
voltage (v
T
) - (typical).
See Figure 5.12 for V
GT
vs T
C
.
See Figure 5.13 for I
H
vs T
C
.
For more than one full cycle, see Figure 5.14.
(19)
0.8 - 4.0A devices also have a pulse peak forward current on-state
rating (repetitive) of 75A. This rating applies for operation at 60Hz,
75°C maximum tab (or anode) lead temperature, switching from
80V peak, sinusoidal current pulse width of 10µs minimum, 15µs
maximum. See Figures 5.20 and 5.21.
See Figure 5.15 for t
gt
vs I
GT
.
Test conditions as follows:
T
C
≤
80°C, rectangular current waveform; rate-of-rise of current
≤
10A/µs. Rate-of-reversal of current
≤
5A/µs. I
TM
= 1A (50µs
pulse) Repetition Rate = 60pps. V
RRM
= Rated. V
R
= 15V mini-
mum, V
DRM
= Rated. Rate-of-rise reapplied forward blocking volt-
age = 5V/µs. Gate Bias = 0V, 100Ω (during turn-off time interval).
Test condition is maximum rated RMS current except TO-92
devices are 1.2A
PK
; T106/T107 devices are 4A
PK
.
V
D
= 6VDC, R
L
= 100Ω. See Figure 5.19 for simple test circuit for
measuring gate trigger voltage and gate trigger current.
See Figures 5.1 through 5.9 for maximum allowable case temper-
ature at maximum rated current.
I
GT
= 500µA maximum for T
C
= -40°C for T106 devices.
I
H
= 10mA maximum for T
C
= -65°C for 2N5060 Series and
2N6564 Series devices.
I
H
= 6mA maximum for T
C
= -40°C for T106 devices.
Pulse Width
≤
10µs.
I
GT
= 350µA maximum at T
C
= -65°C for 2N5060 Series and
2N6564 Series devices.
Latching current can be higher than 20mA for higher I
GT
types.
Also latching current can be much higher at -40°C. See Figure
5.18.
T
C
= T
J
for test conditions in off-state.
Sensitive SCRs
5-4
Teccor Electronics, Inc.
(972) 580-7777
