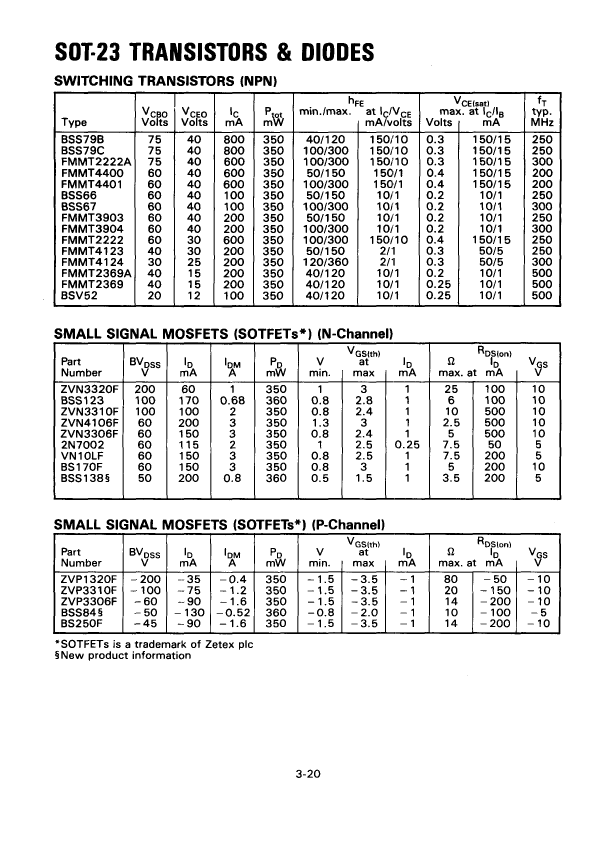

BSS79C: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size38KB，1 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

BSS79C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BSS79C	-	-	View	Buy Now

Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zetex Semiconductors
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
Is Samacsys	N
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.225 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Maximum off time (toff)	285 ns
Maximum opening time (tons)	20 ns
Base Number Matches	1

	BSS79C	BSS79B
Description	Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN
Is it Rohs certified?	incompatible	incompatible
Maker	Zetex Semiconductors	Zetex Semiconductors
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Maximum collector current (IC)	0.1 A	0.1 A
Collector-emitter maximum voltage	40 V	40 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	40
JESD-30 code	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0
Humidity sensitivity level	1	1
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	0.225 W	0.225 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz
Maximum off time (toff)	285 ns	285 ns
Maximum opening time (tons)	20 ns	20 ns
Base Number Matches	1	1
