MC145162D datasheet, PDF - EEWORLD Datasheet

MC145162D: DescriptionPLL FREQUENCY SYNTHESIZER, 60MHz, PDSO16, SOG-16; CategoryAnalog mixed-signal IC The signal circuit; File Size585KB，23 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

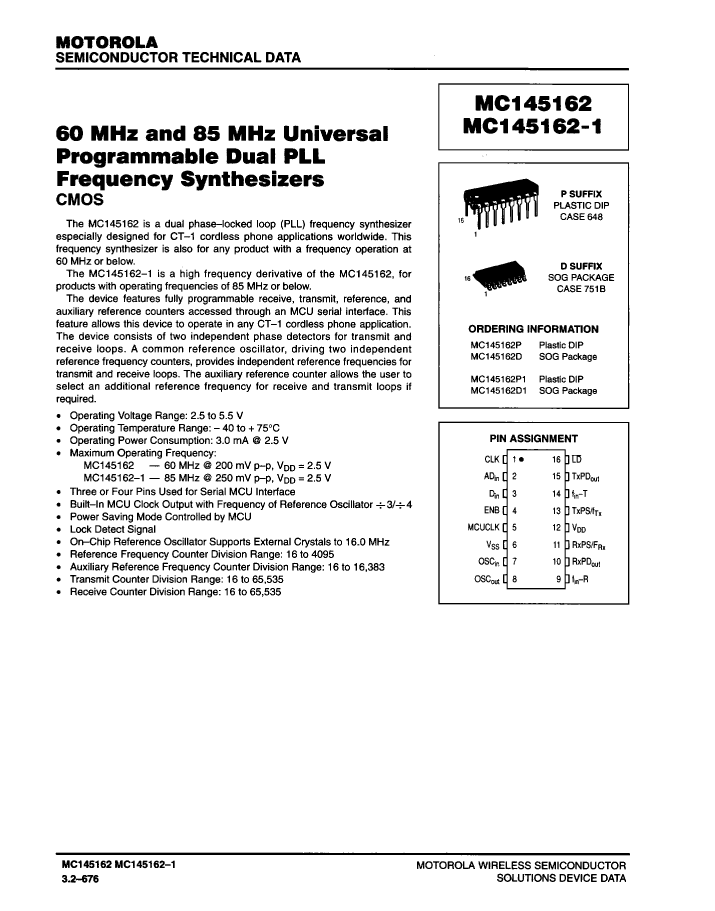

MC145162D Overview

PLL FREQUENCY SYNTHESIZER, 60MHz, PDSO16, SOG-16

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
Other features	14-BIT AUXILIARY REFERENCE COUNTER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	MC145162D	MC145162D1R2	MC145162DR2
Description	PLL FREQUENCY SYNTHESIZER, 60MHz, PDSO16, SOG-16	PLL FREQUENCY SYNTHESIZER, 85MHz, PDSO16, SOG-16	PLL Frequency Synthesizer, CMOS, PDSO16, SOG-16
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
Other features	14-BIT AUXILIARY REFERENCE COUNTER	14-BIT AUXILIARY REFERENCE COUNTER	14-BIT AUXILIARY REFERENCE COUNTER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	9.9 mm	9.9 mm	9.9 mm
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V	2.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm
Parts packaging code	SOIC	SOIC	-
Contacts	16	16	-
