MS20026T15B37PB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS20026T15B37PB

Preview

MS20026T15B37PB: DescriptionMIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

MS20026T15B37PB Overview

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle

MS20026T15B37PB Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: MIL-C-27599, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	MS20026T
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	15
Termination type	SOLDER
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

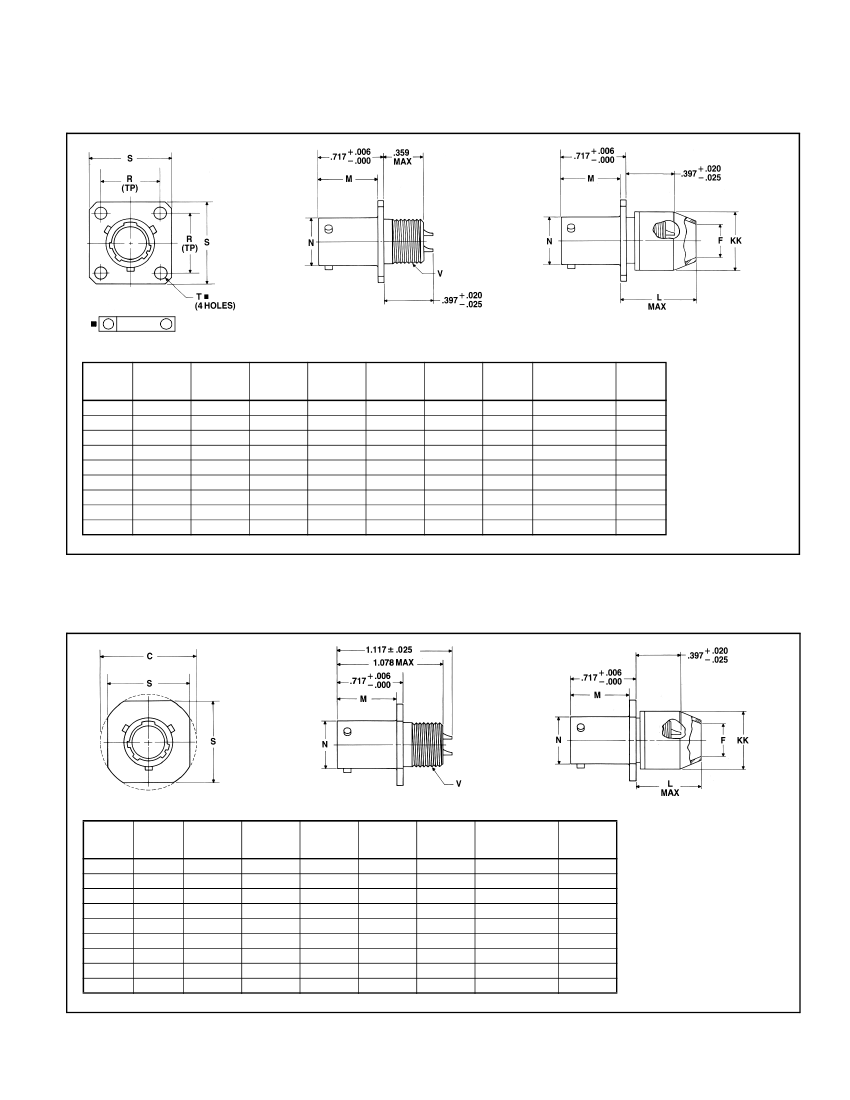

LJT00 (MS20026)

– solder

wall mounting receptacle

*LJT00T-XX-XXX (MS20026T)

.005 DIA

M

* To complete order number see page 7.

NOTE: For availability of back panel mounting types, check with nearest sales office or call Amphenol, Sidney, NY.

+

*LJT00P-XX-XXX

Shell

Size

F

Dia.

L

Max.

M

+.000

–.005

N

+.001

–.005

R

(TP)

S

±.016

T

Dia.

±.005

V Thread

Class 2A

UNEF (Plated)

KK

Dia.

Max.

9

11

13

15

17

19

21

23

25

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

.625

.703

.632

.602

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

1.812

.128

.147

.4375-28

.5625-24

.6875-24

.8125-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

.608

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.

LJT01 (MS20027)

– solder

line receptacle

* To complete order number see page 7.

*LJT01T-XX-XXX (MS20027T)

*LJT01P-XX-XXX

Shell

Size

C

Max.

F

Dia.

L

Max.

M

+.000

–.005

N

+.001

–.005

S

±.016

V Thread

Class 2A

UNEF (Plated)

KK

Dia.

Max.

9

11

13

15

17

19

21

23

25

1.094

1.188

1.281

1.375

1.469

1.594

1.719

1.844

1.969

.327

.444

.558

.683

.808

.909

1.034

1.159

1.284

.625

.703

.632

.602

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

1.812

.4375-28

.5625-24

.6875-24

.8125-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

.608

.734

.858

.984

1.110

1.234

1.360

1.484

1.610

All dimensions for reference only.
