74HC7266 datasheet, PDF - EEWORLD Datasheet

74HC7266: DescriptionQuad 2-input EXCLUSIVE-NOR gate; File Size27KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Compare View All

74HC7266 Overview

Quad 2-input EXCLUSIVE-NOR gate

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Information

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines

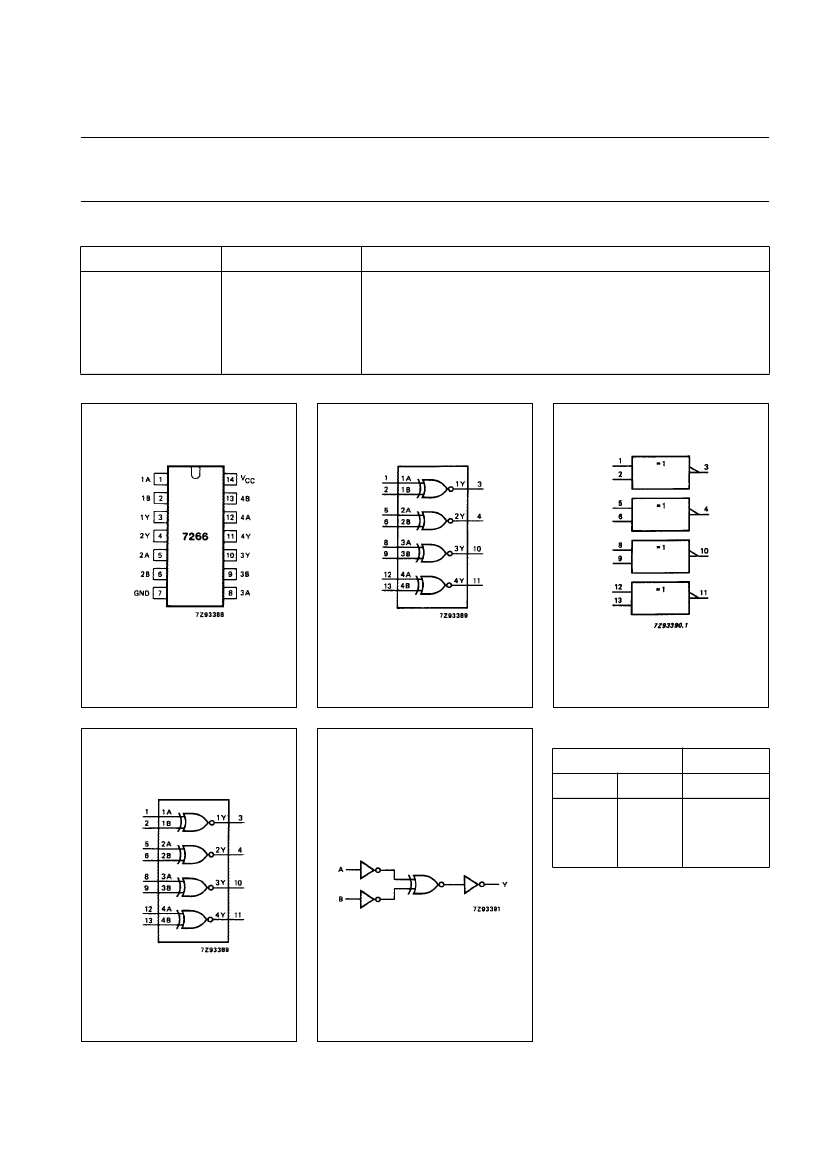

74HC7266

Quad 2-input EXCLUSIVE-NOR

gate

Product speciﬁcation

File under Integrated Circuits, IC06

December 1990

	74HC7266	74HC7266D	74HC7266N
Description	Quad 2-input EXCLUSIVE-NOR gate	Quad 2-input EXCLUSIVE-NOR gate	Quad 2-input EXCLUSIVE-NOR gate
Is it Rohs certified?	-	conform to	conform to
Maker	-	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	-	SOP, SOP14,.25	DIP, DIP14,.3
Reach Compliance Code	-	unknow	unknow
JESD-30 code	-	R-PDSO-G14	R-PDIP-T14
JESD-609 code	-	e4	e4
Load capacitance (CL)	-	50 pF	50 pF
Logic integrated circuit type	-	XNOR GATE	XNOR GATE
MaximumI(ol)	-	0.004 A	0.004 A
Number of terminals	-	14	14
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	DIP
Encapsulate equivalent code	-	SOP14,.25	DIP14,.3
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	IN-LINE
power supply	-	2/6 V	2/6 V
Prop。Delay @ Nom-Su	-	35 ns	35 ns
Certification status	-	Not Qualified	Not Qualified
Schmitt trigger	-	NO	NO
surface mount	-	YES	NO
technology	-	CMOS	CMOS
Temperature level	-	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	-	GULL WING	THROUGH-HOLE
Terminal pitch	-	1.27 mm	2.54 mm
Terminal location	-	DUAL	DUAL
