74HCT107D datasheet, PDF - EEWORLD Datasheet

74HCT107D: DescriptionDual JK flip-flop with reset; negative-edge trigger; Categorylogic logic; File Size49KB，7 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74HCT107D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74HCT107D	-	-	View	Buy Now

Dual JK flip-flop with reset; negative-edge trigger

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknow
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Su	24000000 Hz
MaximumI(ol)	0.004 A
Number of functions	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Information

•

The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines

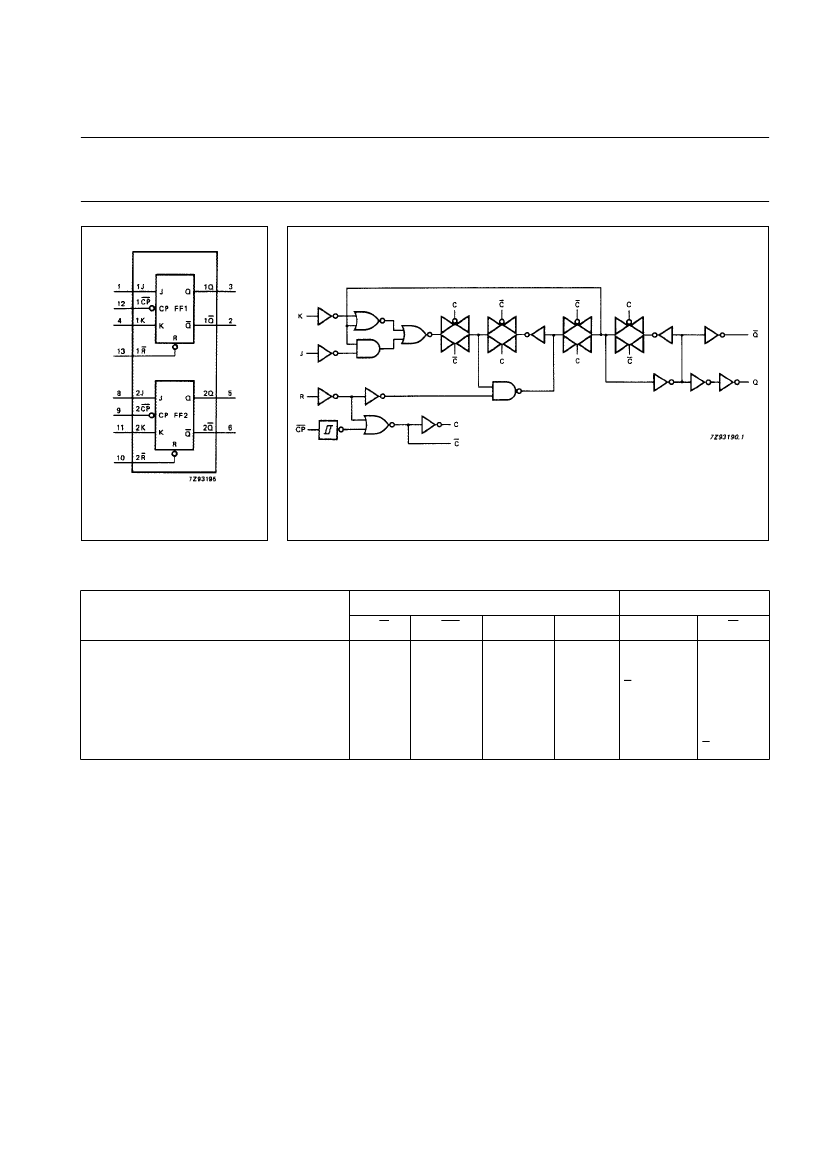

74HC/HCT107

Dual JK flip-flop with reset;

negative-edge trigger

Product speciﬁcation

File under Integrated Circuits, IC06

December 1990

	74HCT107D	74HC107	74HC107DB	74HC107PW	74HCT107	74HCT107N	74HCT107DB	74HCT107PW
Description	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger	Dual JK flip-flop with reset; negative-edge trigger
