MC74HC163AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC74HC163AN

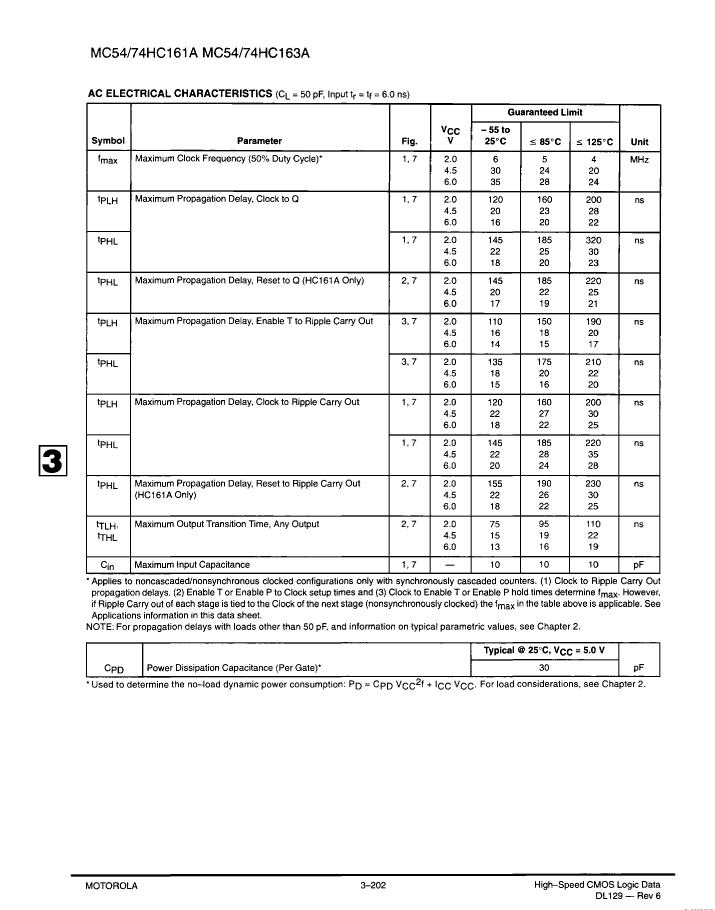

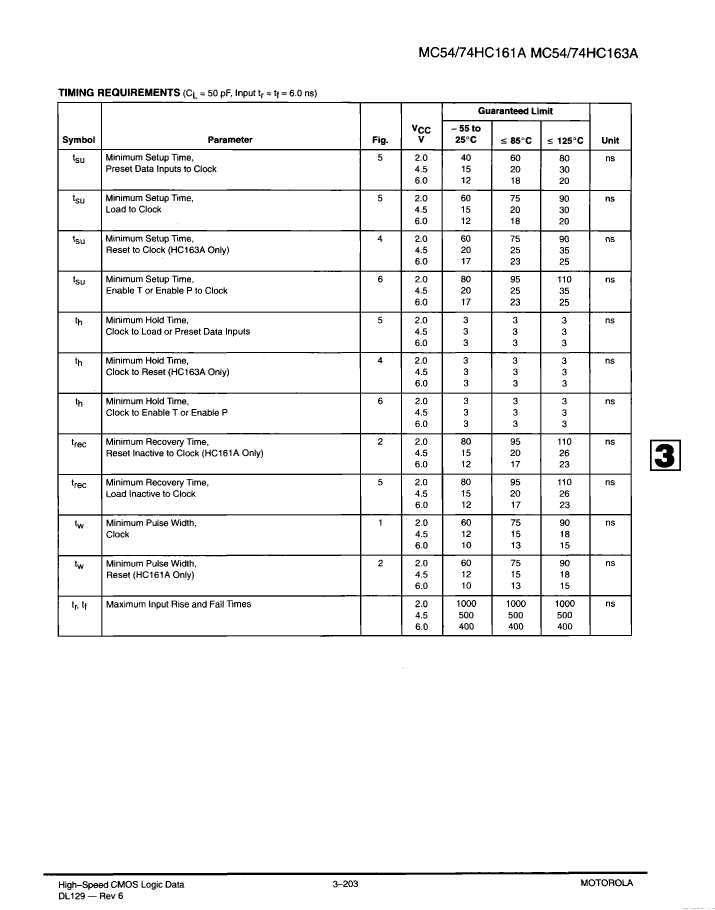

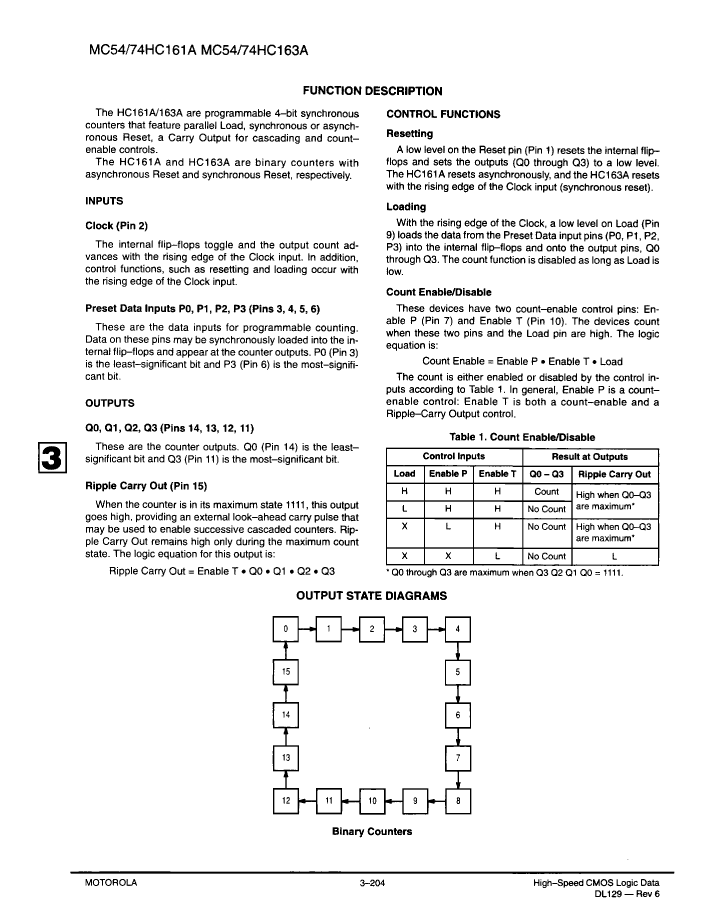

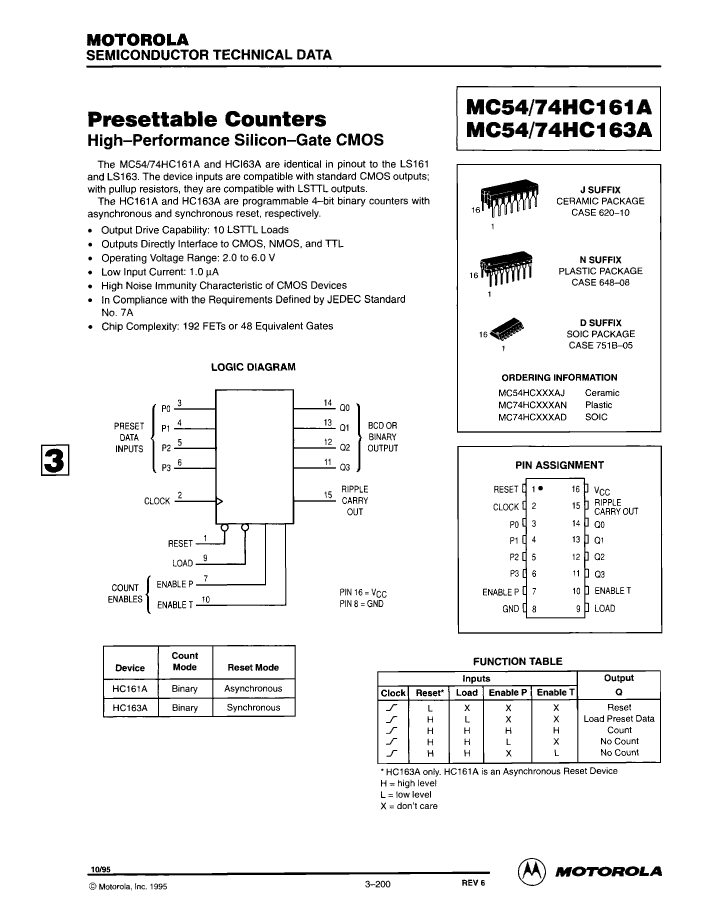

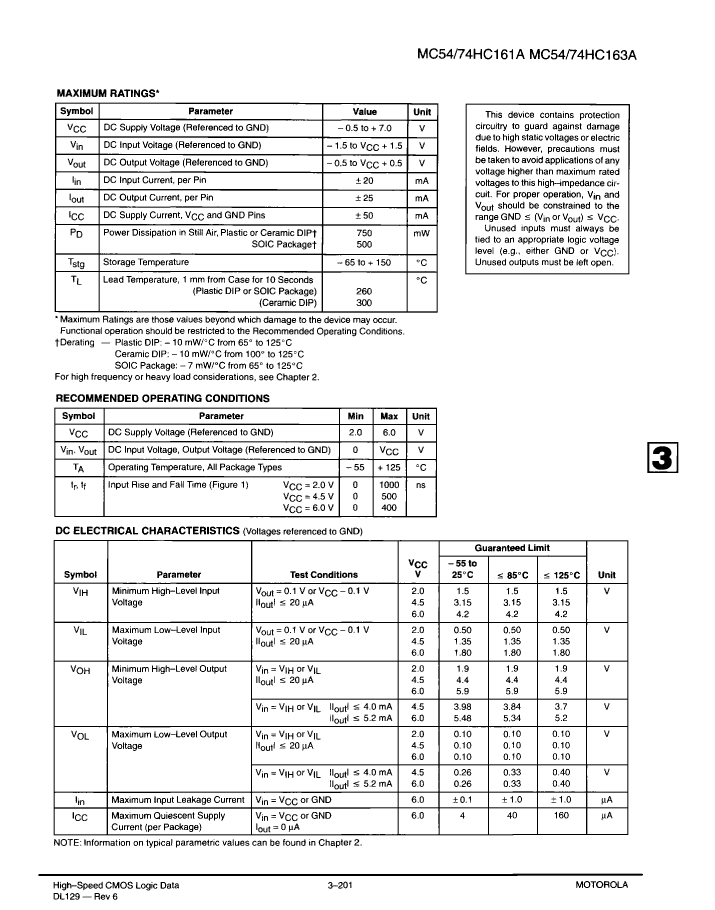

MC74HC163AN: DescriptionHC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size271KB，11 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74HC163AN Overview

HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16

MC74HC163AN Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TCO OUTPUT
Counting direction	UP
series	HC/UH
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	20 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

MC74HC163AN Related Products

	MC74HC163AN	MC74HC161ADR2	MC74HC161AD	MC74HC163ADR2
Description	HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16	HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16	HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16	HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, 0.150 INCH, PLASTIC, SOIC-16
Parts packaging code	DIP	SOIC	SOIC	SOIC
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	SOP, SOP16,.25	SOP, SOP16,.25
Contacts	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP	UP	UP
series	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0
length	19.175 mm	9.9 mm	9.9 mm	9.9 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Maximum Frequency@Nom-Sup	30000000 Hz	30000000 Hz	30000000 Hz	30000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.25	SOP16,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	2/6 V	2/6 V	2/6 V	2/6 V
propagation delay (tpd)	30 ns	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.44 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	3.9 mm	3.9 mm	3.9 mm
minfmax	20 MHz	20 MHz	20 MHz	20 MHz
Base Number Matches	1	1	1	1
