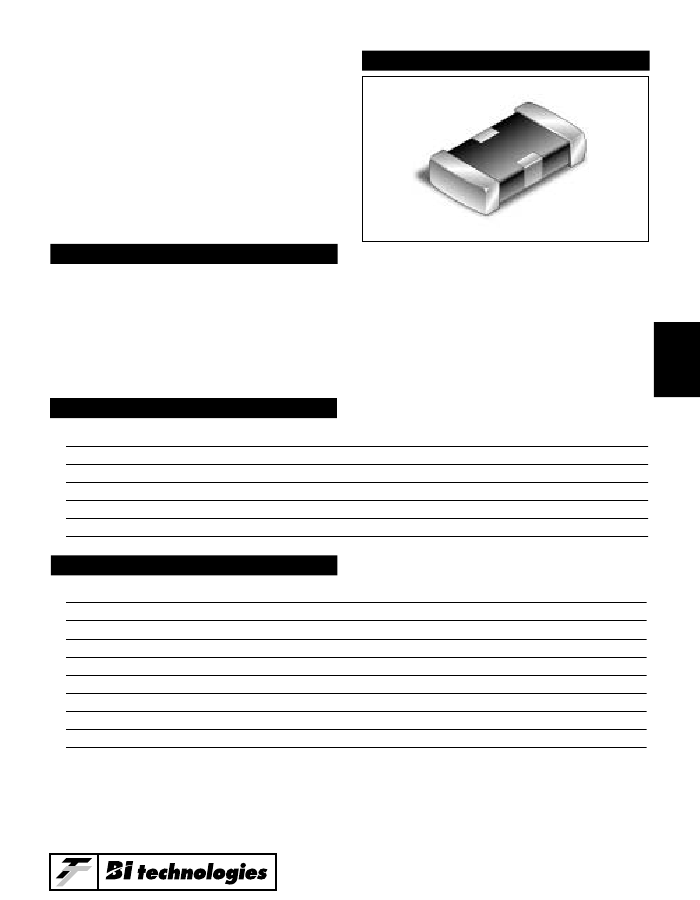

MODEL LC SERIES
Low Pass Filter
Leadless Surface Mount
Chip Inductor/Capacitors
NEW PRODUCT
LOW PASS FILTER TECHNOLOGY
LC and RC filters are offered by BI to solve issues of
unwanted noise. Each has cost/performance trade offs.
LC composite construction has superior performance
through the entire frequency range and has the sharpest
roll off compared with RCs.
APPLICATIONS
Thick film RC is the lowest cost and provides good
performance.
Thin film RC offers good performance (under 1GHz),
moderate cost and very good multi-element density.
4
• EMI/RFI filtering
• On-board controllers and ethernet
• Digital communications: facsimile machines, modems and ISDN
• Digital AV equipment: television, video camrecorders and DVD
• LAN, WAN, universal serial bus cards and graphics card
• Computers and peripherals
FEATURES AND BENEFITS
• Integrated ladder filter
• Small outline 0805 and 1206 sizes
• Low profile suitable for PCMCIA cards
• Nickel barrier terminations
• Monolithic construction
• Steep insertion loss
• Eliminates noise over a wide frequency range
• Requires no chip orientation
• Ideal for high frequency, space limited designs
Specifications subject to change without notice.
4-43
Model LC Series
TYPICAL PERFORMANCE - MODEL LC 0805
0
-10
-20
Insertion Loss [dB]
LC 0805 L 103M
LC 0805 L 223M
LC 0805 L 473M
LC 0805 L 104M
LC 0805 L 224M
-30
-40
-50
-60
0.1
1
10
Frequency [MHz]
Cutoff Frequency (Code)
Temperature Characteristics
(Tolerance)
Inductance at 1MHz
(Reference)
Magnetic Loss at 1MHz
(Reference)
Capacitance at 1MHz
(Reference)
Dissipation Factor at 1MHz
(Reference)
DC Resistance
(Reference)
3.0
Ω
1.8
Ω
2.4%
1.8%
600pF
2.5
1.8
300pF
200nH
103
223
473
-25°C to +85°C
+30%, -20%
Meets cutoff frequency
180nH
200nH
≤3.0
1.4
100pF
≤5.0%
1.9%
≤6.0 Ω
1.8
Ω
1.5
Ω
1.2
Ω
1.9%
2.3%
2.2
30pF
2.7
15pF
Meets cutoff frequency
110nH
70nH
104
224
100
1,000
10,000
4-44
Model LC Series
TYPICAL PERFORMANCE - MODEL LC 1206
0
-10
-20
Insertion Loss [dB]
LC 1206 L 103M
LC 1206 L 223M
LC 1206 L 473M
LC 1206 L 104M
-30
-40
4
-50
-60
0.1
1
10
Frequency [MHz]
Cutoff Frequency (Code)
Temperature Characteristics
(Tolerance)
Inductance at 1MHz
(Reference)
Magnetic Loss at 1MHz
(Reference)
Capacitance at 1MHz
(Reference)
Dissipation Factor at 1MHz
(Reference)
DC Resistance
(Reference)
2.6
Ω
3.0%
760pF
1.1
0.6
200pF
1.7%
1.9
Ω
330nH
103
223
473
104
100
1,000
10,000
-25°C to +85°C
+30%, -20%
Meets cutoff frequency
550nH
≤3.0
1.0
100pF
2.0%
1.4
Ω
1.5
20pF
2.3%
1.4
Ω
Meets cutoff frequency
≤5.0%
≤6.0 Ω
220nH
150nH
4-45
Model LC Series
ELECTRICAL
Part
Number
LC 0805 L 103M
LC 1206 L 103M
LC 0805 L 223M
LC 1206 L/H 223M
LC 0805 L/H 473M
LC 1206 L/H 473M
LC 0805 L/H 104M
LC 1206 L/H 104M
LC 0805 L/H 224M
Cutoff
Frequency
-3dB (±20%)
10 MHz
10 MHz
22 MHz
22 MHz
47 MHz
47 MHz
100 MHz
100 MHz
220 MHz
Rated
Voltage
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
Rated
Current
Max.
100mA dc
100mA dc
100mA dc
100mA dc/1A dc
100mA dc/1A dc
100mA dc/1A dc
100mA dc/1A dc
100mA dc/1A dc
100mA dc/1A dc
DCR
Max.
6 Ohms
6 Ohms
6 Ohms
6 Ohms/1 Ohm
6 Ohms/1 Ohm
6 Ohms/1 Ohm
6 Ohms/1 Ohm
6 Ohms/1 Ohm
6 Ohms/1 Ohm
FILTER DESIGN COMPARISON AND BENEFITS
Low pass filters are most commonly used in high
frequency circuits where the probability of noise is
significant.
The LC Series, a ladder type low pass filter, is the
most suitable for attenuating unwanted noise.
The LC Series is an integrated passive device with the
equivalent of four inductors and three capacitors
imbedded into a single 0805 or 1206 monolithic chip.
The LC Series
integrated passive ladder construction
ENVIRONMENTAL
is superior to discrete solutions at
high frequencies
due to very short internal interconnections.
The LC Series' ladder construction is superior to "T"
styles by offering greater attenuation beyond the cutoff
frequency.
The LC Series low pass filters offer
steeper
insertion
loss and
greater
noise attenuation than other filters.
The LC Series provides signal attenuation below -20dB
above 1GHz.
Solderability
Life
Temperature Cycle
Moisture Resistance
JIS C5102 8.4, 230°, 4 seconds, 90% coverage
2 x rated voltage,
∆C, ∆L, ≤30%,
1,000 hours at 85°C
JIS C5102 9.3, -25°C to +85°C, 5 cycles,
∆C, ∆L, ≤20%
+65°C, 90% R.H., 1,000 hours,
∆C, ∆L, ≤30%
4-46
Model LC Series
OUTLINE DIMENSIONS (Inch/mm)
Ferrite
Terminal
Electrode
B
Common
Ground
A
F
C
E
D
Size
0805
2012
1206
3216
A Dim.
.079±.008
2.0±0.20
.126±.008
3.2±0.20
B Dim.
1.25±0.20
.063±008
1.6±0.20
C Dim.
0.8±0.20
.039±008
1.0±0.20
D Dim.
0.3±0.25
.016±012
0.4±0.30
E Dim.
.024±0.12
0.6±0.30
1.1±0.30
F Dim.
.039±008
1.0±0.20
1.6±0.30
4
.049±.008 .031±.008 .012±0.10
.043±.012 .063±.012
RECOMMENDED PCB LAYOUT
(Inch/mm)
A
E
Model
LC 0805
LC 1206
A Dim. B Dim.
.160
.080
2.0
.070
1.8
4.0
.110
2.8
C Dim.
.060
1.5
.036
.90
D Dim.
.036
.90
.025
.65
E Dim.
.014
.35
.012
.30
B
D
C
D
Note: Via recommended between ground plane and center pad.
4-47
Model LC Series
