PMLL5266B datasheet, PDF - EEWORLD Datasheet

PMLL5266B: DescriptionZener Diode, 68V V(Z), 5%, 0.5W,; CategoryDiscrete semiconductor diode; File Size228KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

PMLL5266B Overview

Zener Diode, 68V V(Z), 5%, 0.5W,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	230 Ω
JESD-609 code	e0
Number of components	1
Maximum operating temperature	200 °C
Maximum power dissipation	0.5 W
Nominal reference voltage	68 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%
Working test current	1.8 mA
Base Number Matches	1

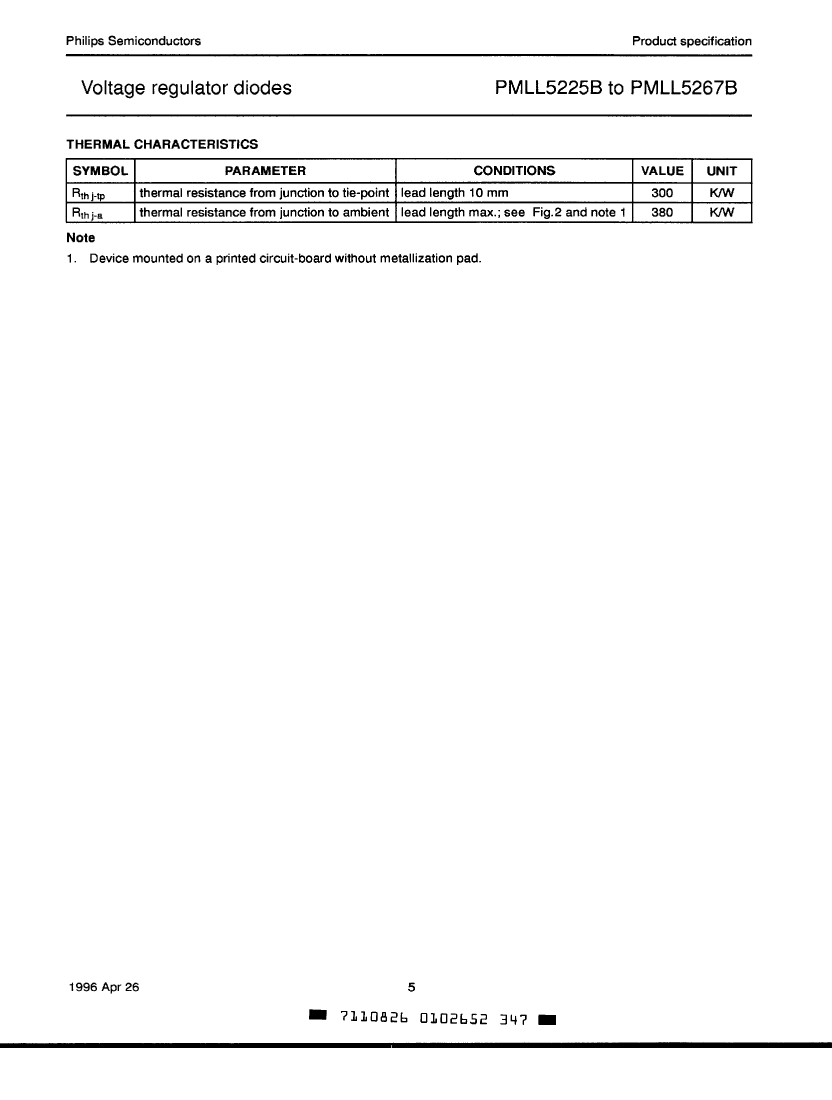

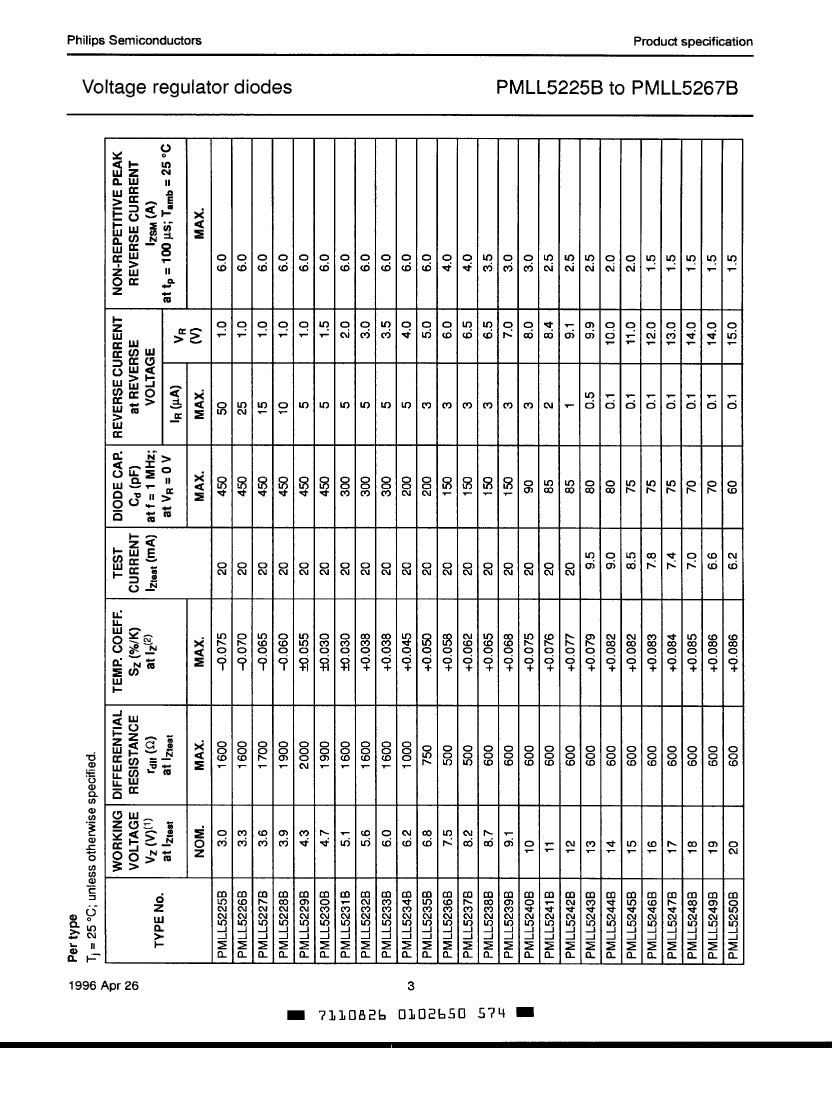

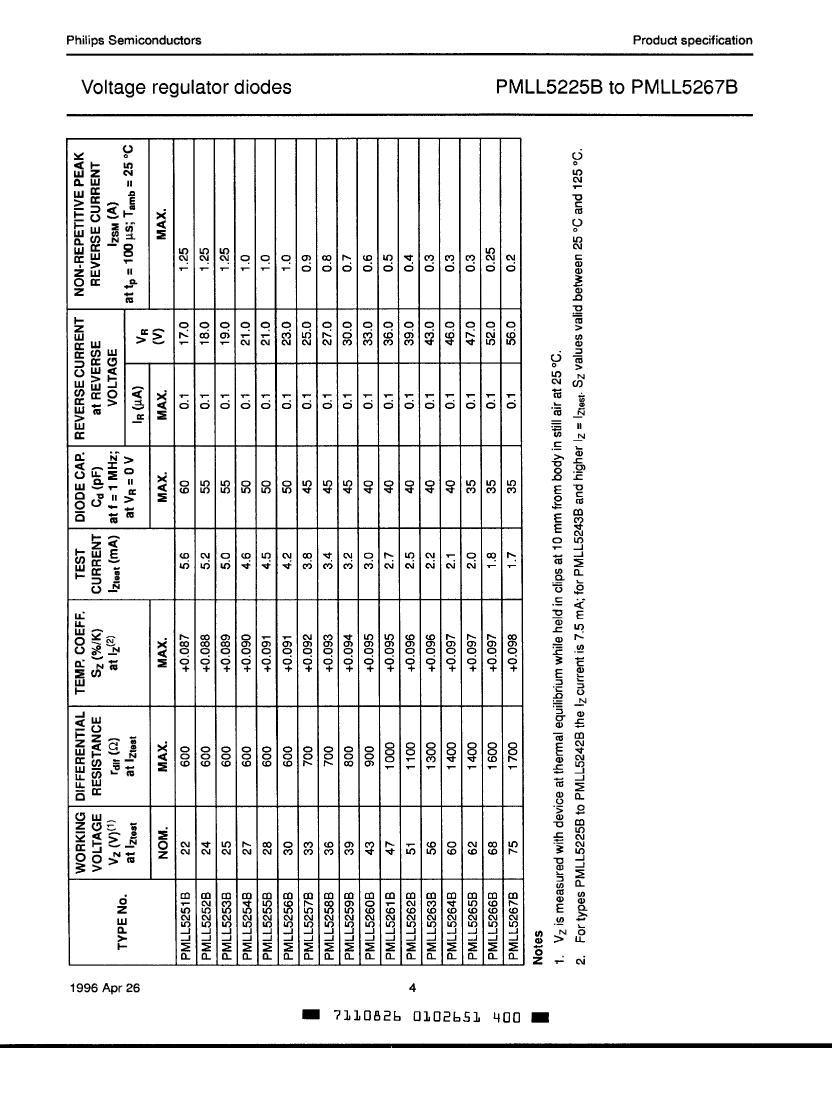

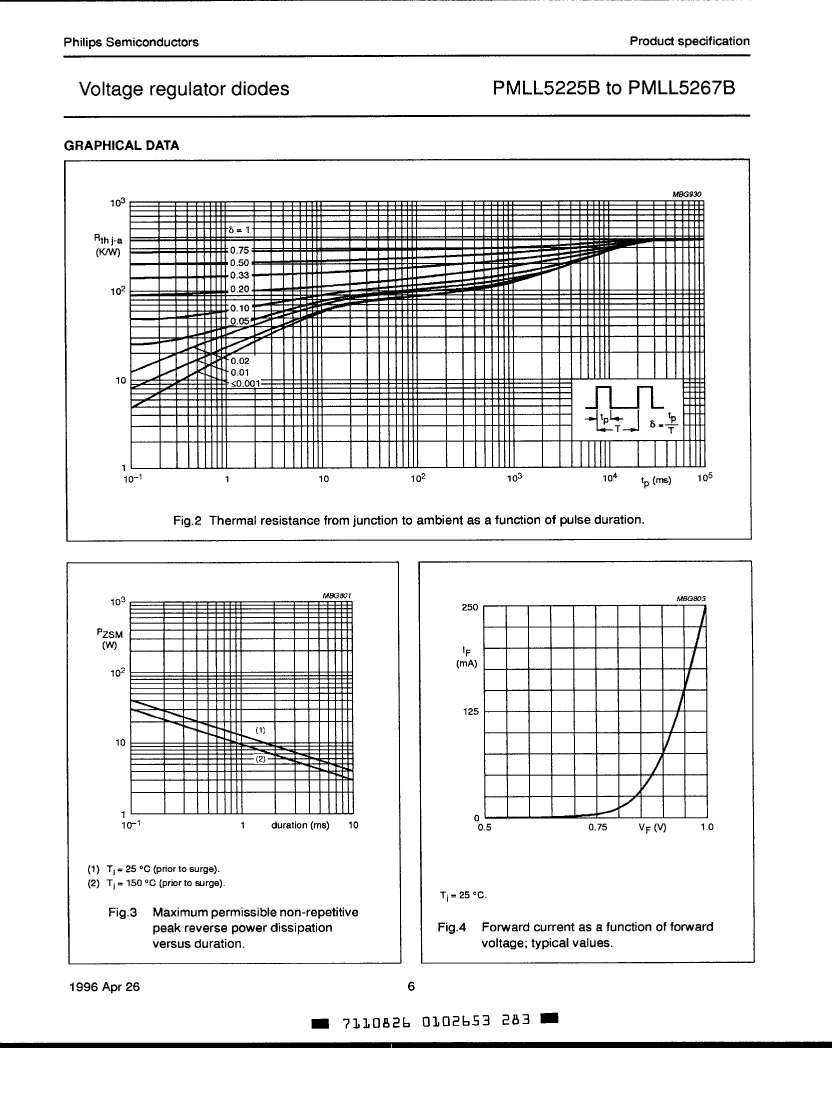

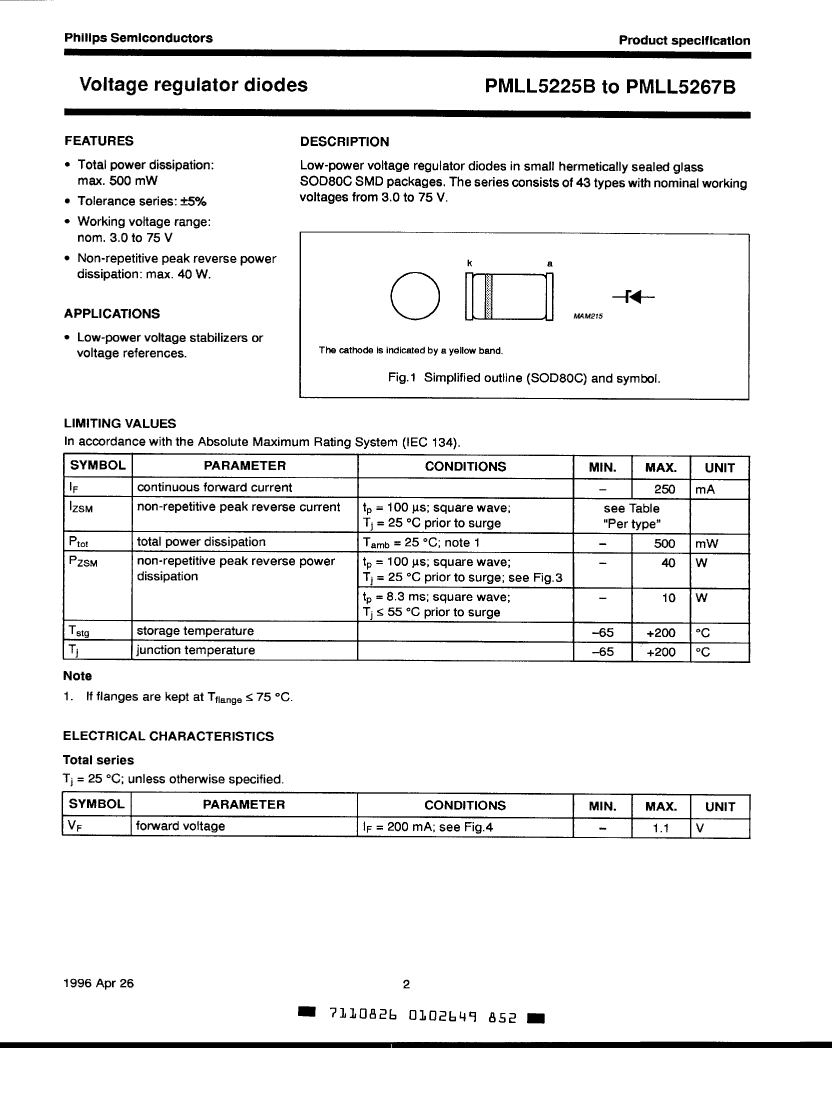

This Material Copyrighted By Its Respective Manufacturer

	PMLL5266B	PMLL5264B	PMLL5265B	PMLL5248B	PMLL5225B
Description	Zener Diode, 68V V(Z), 5%, 0.5W,	Zener Diode, 60V V(Z), 5%, 0.5W,	Zener Diode, 62V V(Z), 5%, 0.5W,	Zener Diode, 18V V(Z), 5%, 0.5W,	Zener Diode, 3V V(Z), 5%, 0.5W,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	230 Ω	170 Ω	185 Ω	21 Ω	29 Ω
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Nominal reference voltage	68 V	60 V	62 V	18 V	3 V
surface mount	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum voltage tolerance	5%	5%	5%	5%	5%
Working test current	1.8 mA	2.1 mA	2 mA	7 mA	20 mA
Base Number Matches	1	1	1	1	1
Is Samacsys	N	N	N	-	-
