BJ3457P: DescriptionCONNECTOR, PANEL MOUNT, MALE, BNC, TWINAXIAL CONNECTOR, SOLDER, JACK; CategoryThe connector The connector; File Size63KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

BJ3457P Overview

CONNECTOR, PANEL MOUNT, MALE, BNC, TWINAXIAL CONNECTOR, SOLDER, JACK

BJ3457P Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARD: MIL-C-49142, POLARIZED
Body/casing type	JACK
Connector type	RF TWINAXIAL-BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	450
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

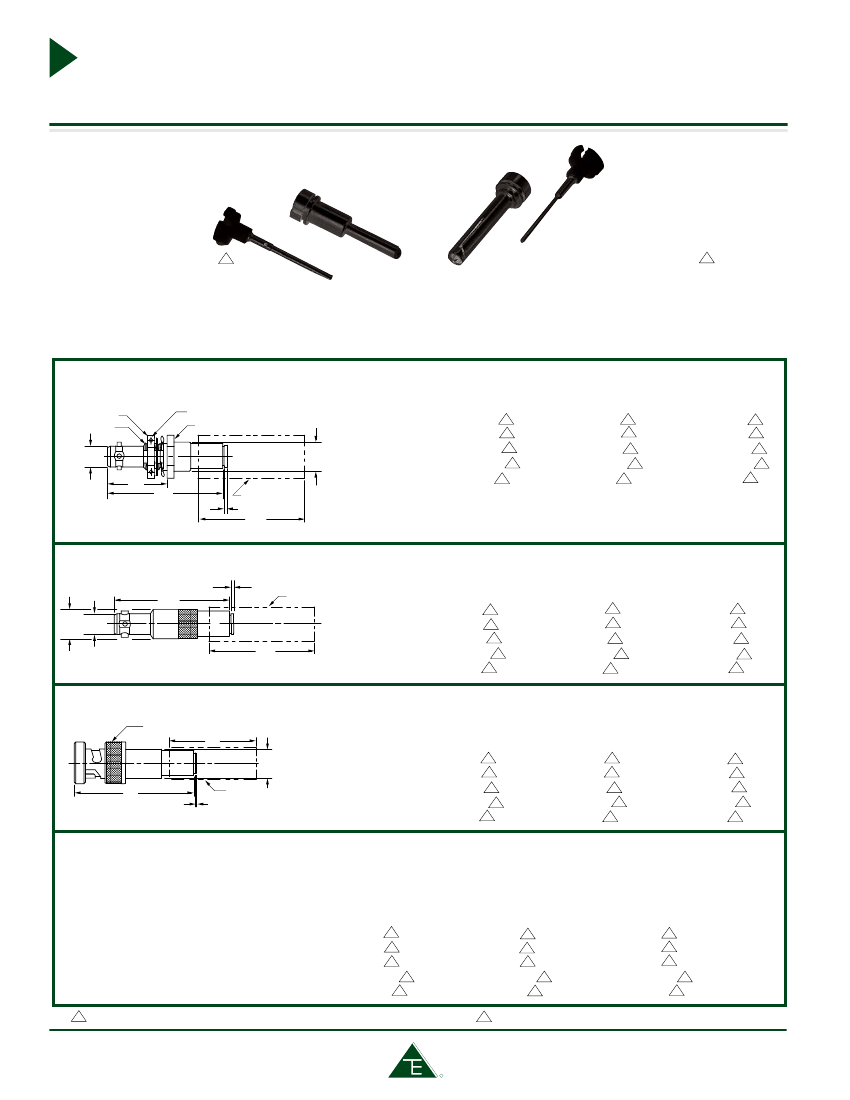

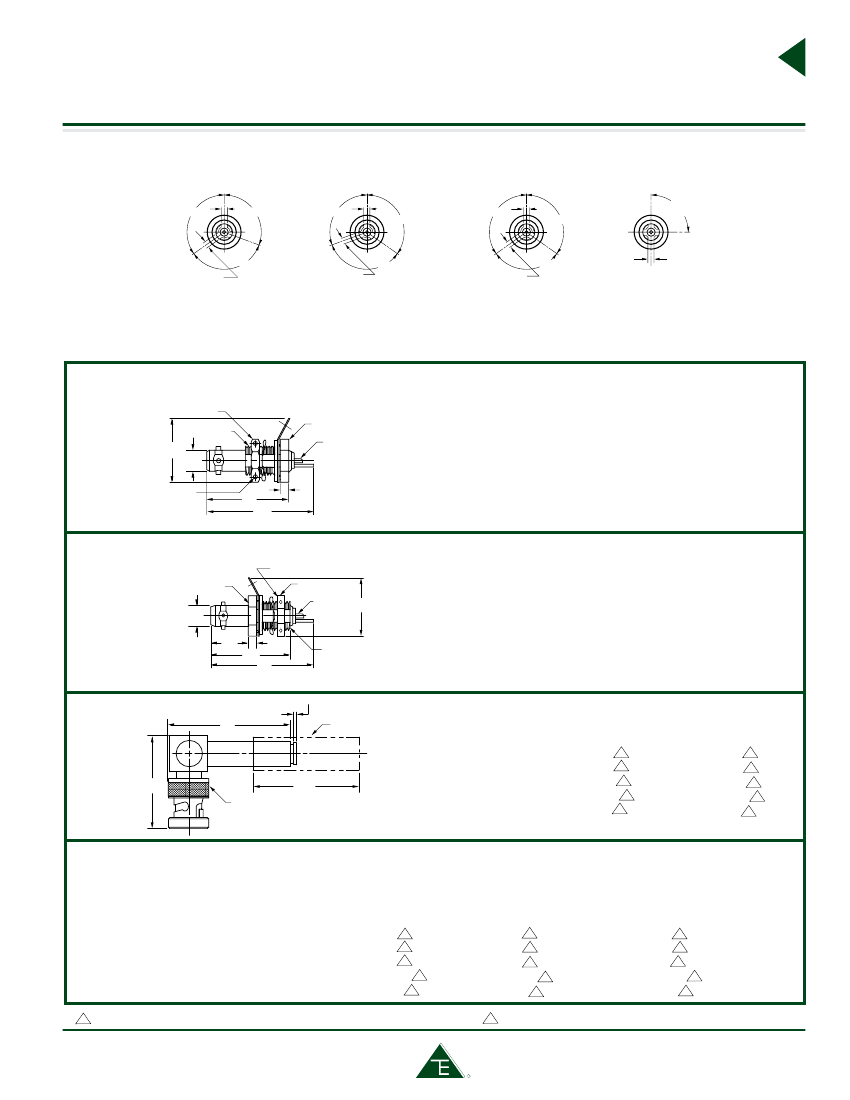

Concentric twinax 450 series

Concentric Twinax 450 Series

125°

.080"110°

110°

.080"

125°

.080"

125°

3-lug & 4-lug Keyings

90°

TYP

125°

.067"

.062"

TYP

125°

.067"

.062"

TYP

110°

.067"

.062"

TYP

.067"

.062"

TYP

The 450 Series was designed for airborne digital data bus applications

utilizing the MIL-STD-1553B data bus. The 450 Series will fit most

twinax cables.

Refer to page 20 for photo of intermediate contacts.

Bulkhead Jack

Rear mount, Solder pot

.438 HEX NUT

.3125-32UNEF-2A

.750

MAX

SOLDER POT ACCEPTS

.026 DIA CONDUCTOR

.240

DIA

Connectors are available in five different coupling configurations

which include 3-lug versions with three (3) separate keyings, a 4-lug,

and a threaded version with safety wire holes.

Diagrams shown above are for plugs.

Key

Code

Intermediate Contact

Socket

Coupling

Type

3-lug

4-lug

Mounting

.047 DIA SAFETY

WIRE HOLES

Holes:

2 PLACES

DD8.130

DD8.125 (Threaded)

Threaded

.075

.795

1.03

BJ450PP

BJ450RP

BJ450WP

BJ450FLP

BJ3450P

BJ450PS

BJ450RS

BJ450WS

BJ450FLS

BJ3450S

Bulkhead Jack

Front mount, Solder pot

.437 HEX NUT

.047 DIA SAFETY

WIRE HOLES 2 PLACES

.438 HEX NUT

SOLDER POT

ACCEPTS .750

.026 MAX MAX

DIA COND.

Coupling

Type

3-lug

4-lug

Threaded

Key

Code

Intermediate Contact

Socket

.240

DIA

Mounting

Holes:

DD8.250

DD8.125 (Threaded)

.456

.795

.075

.3125-32UNEF-2A

1.03

BJ457PP

BJ457RP

BJ457WP

BJ457FLP

BJ3457P

BJ457PS

BJ457RS

BJ457WS

BJ457FLS

BJ3457S

BJ457FLP-1 SHOWN

.030

Right Angle Cable Plug

All Crimp

1.46

SEALING

SLEEVE

Coupling

Type

3-lug

4-lug

Threaded

Key

Code

Intermediate Contact

Socket

1.10

MAX

;;;;;;;

(1.25)

.500 DIA

OVER KNURL

PLR455ACPP-201

PLR455ACPP-

PLR455ACRP-

PLR455ACWP-

PLR455ACFLP-

PLR3455ACP-

PLR455ACPS-

PLR455ACRS-

PLR455ACWS-

PLR455ACFLS-

PLR3455ACS-

RFI Jack Caps & Bulkhead Jack Terminations

For use with 450 Series Plugs

Rear Mount

Coupling

Type

3-lug

4-lug

Threaded

Terminations

RFI Caps

RFI457-

RFI457FL-

RFI3457-

Intermediate Contact

Socket

TBJ451P-

-R

TBJ451P-

-R

TBJ451P-

-R

TBJ451FLP-

-R

TBJ3451P-

-R

TBJ451S-

-R

TBJ451S-

-R

TBJ451S-

-R

TBJ451FLS-

-R

TBJ3451S-

-R

- Refers to Cable Group Table see pages 91-133. "D" mounting holes see page 54

- For Chain options, see page 45.

Trompeter Products Catalog - T21 Military/Aerospace

ISO 9001

Registered

(800) 982-2629

Fax: (818) 706-1040

www.trompeter.com
