2D=IA 5DEBJAHI
2D=IA5DEBJAHI
250
o
Field Adjustable Phase Shift
High Frequency Harmonic Phase Adjustment
Low VSWR and Insertion Loss
Smooth Continuous Adjustment
Meets Mil-E-5400 and Mil-E16400 Environment
Harmonic Type

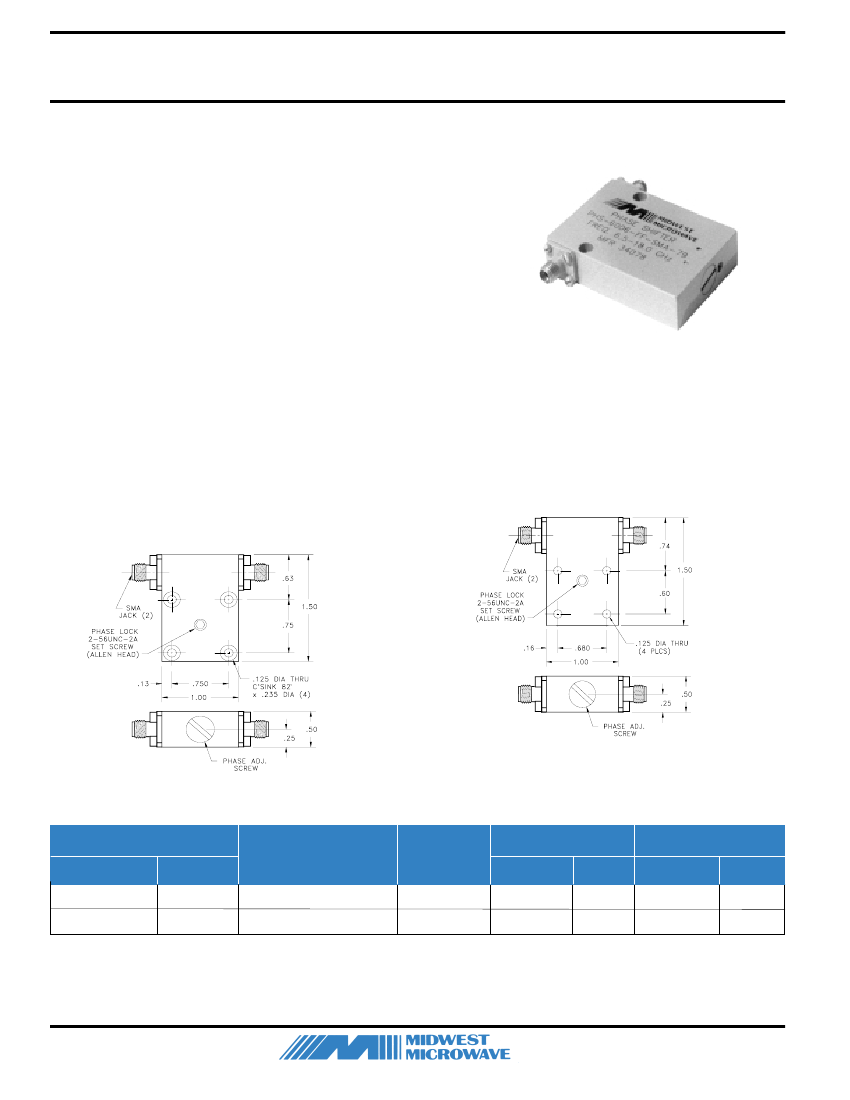

Midwest Microwave's series of higher frequency Harmonic Phase Shifters
provide continuous phase adjustability while exhibiting high performance
characteristics throughout their operating frequency range. They are
small, lightweight, ruggedly constructed units that posses consistently low
VSWR and linear insertion loss. They are completely field adjustable
through the use of a smooth, and simple mechanical adjustment.
SPECIFICATIONS
Fundamental Frequency:
7.5-9.0 GHz and 6.5-9.0 GHz,
Harmonic Frequency:
15.0- 17.0, and 13.0-18.0 GHz
Impedance:
50 Ohms
VSWR:
1.7:1 in Fundamental frequency band typical
2.0:1 in harmonic frequency band typical
see table below
Insertion Loss:
0.8 dB max in fundamental frequency band
1.0 dB max in harmonic frequency band
Power:
2 Watts average, 2 Watts Peak
Operating Temperature:
-55
o
C - +125
o
C
Connectors:
Passivated Stainless Steel SMA*
Model No. PHS-6009-FF-SMA-79
Model No. PHS-6008-FF-SMA-79
Frequency
(GHz)
Fundamental
7.5 - 9.0
6.5 - 9.0
Harmonic
15.0 - 17.0
13.0 - 18.0
Model Number
PHS-6008-FF-SMA-79
PHS-6009-FF-SMA-79
Harmonic
Phase Shift
(degrees)
250
180
1.60
1.60
VSWR
Fundamental
Harmonic
1.80
1.80
Insertion Loss
Fundamental
0.80
0.90
Harmonic
1.00
1.00
Note: SMA male , TNC, or Type N output connectors, either male or female, are also available by substituting TNC or NNN for SMA in the Model Number.
If an interface gender change is desired, substitute MM or MF for FF in the Model Number. Please note that the housing thickness will increase
accordingly when larger connectors are selected.
118
