8609-464-71-13-C55-720-E1 datasheet, PDF

8609-464-71-13-C55-720-E1: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8609-464-71-13-C55-720-E1 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZATION AVAILABLE
Connector type	BOARD EURO CONNECTOR
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609-464-71-13-C55-720-E1
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

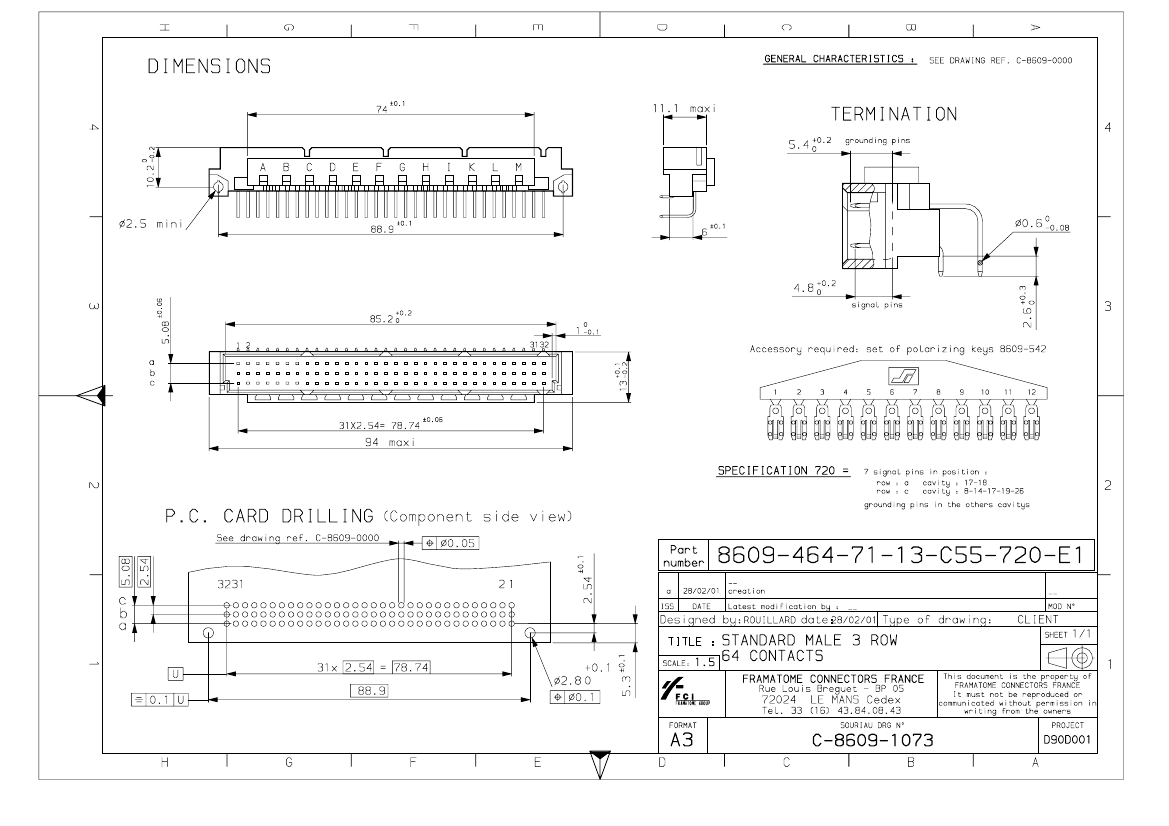

PDM: Rev:A

STATUS:

Released

Printed: Sep 30, 2005

.
