HM2S70PK5101L9LF datasheet, PDF

HM2S70PK5101L9LF: DescriptionBoard Connector, 154 Contact(s), 7 Row(s), Female, Straight, Press Fit Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

HM2S70PK5101L9LF Overview

Board Connector, 154 Contact(s), 7 Row(s), Female, Straight, Press Fit Terminal, Receptacle, LEAD FREE

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
Is Samacsys	N
Other features	44 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS, POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (49) OVER NICKEL
Contact completed and terminated	MATTE TIN (2)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	154
Base Number Matches	1

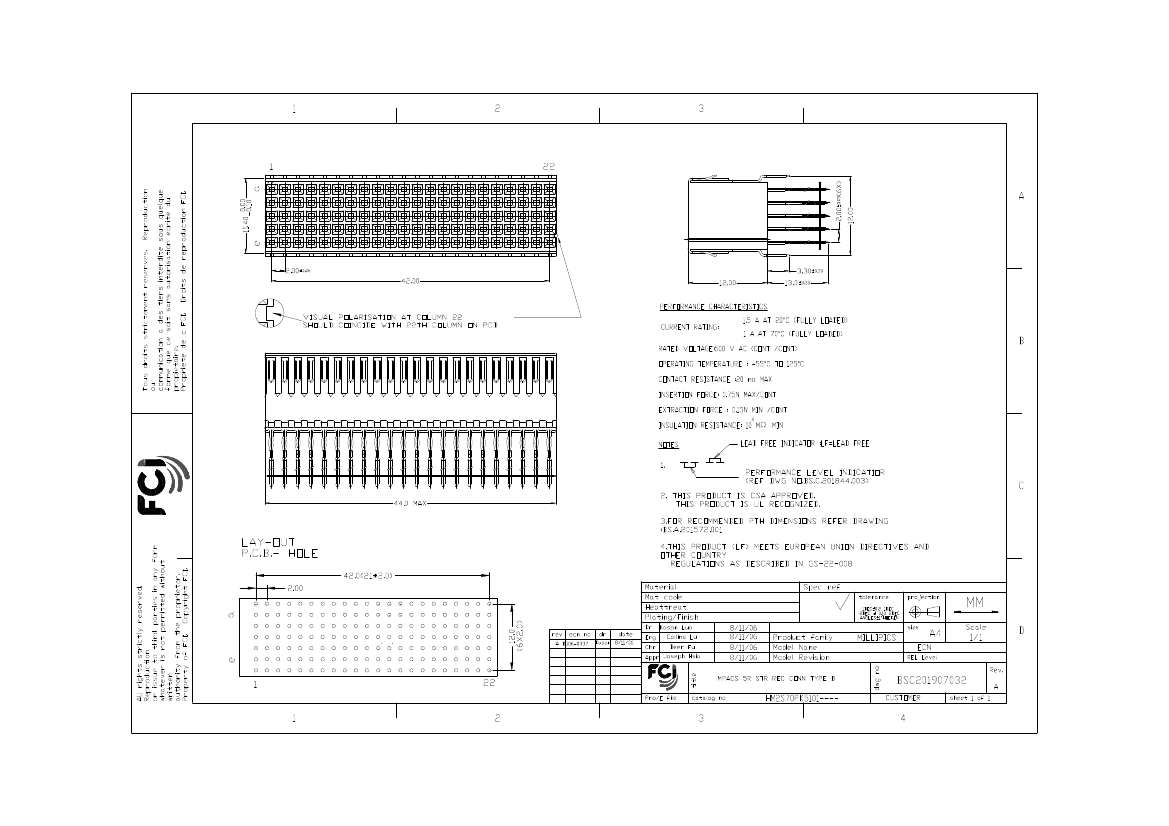

PDM: Rev:A

STATUS:

Released

Printed: Mar 15, 2011

.
