RB159S: DescriptionBridge Rectifier Diode, 1.5A, 1000V V(RRM),; CategoryDiscrete semiconductor diode; File Size51KB，2 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

RB159S Overview

Bridge Rectifier Diode, 1.5A, 1000V V(RRM),

RB159S Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
Maximum non-repetitive peak forward current	50 A
Number of components	4
Maximum output current	1.5 A
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY, LTD.

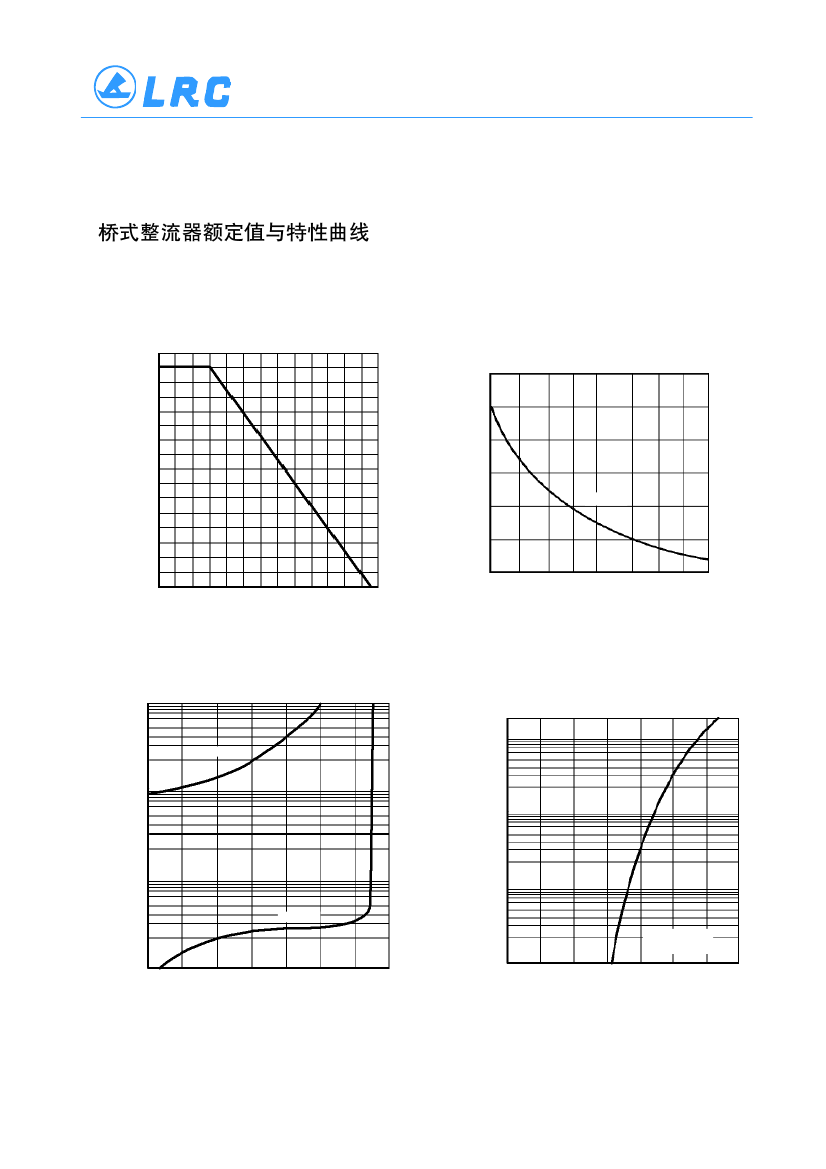

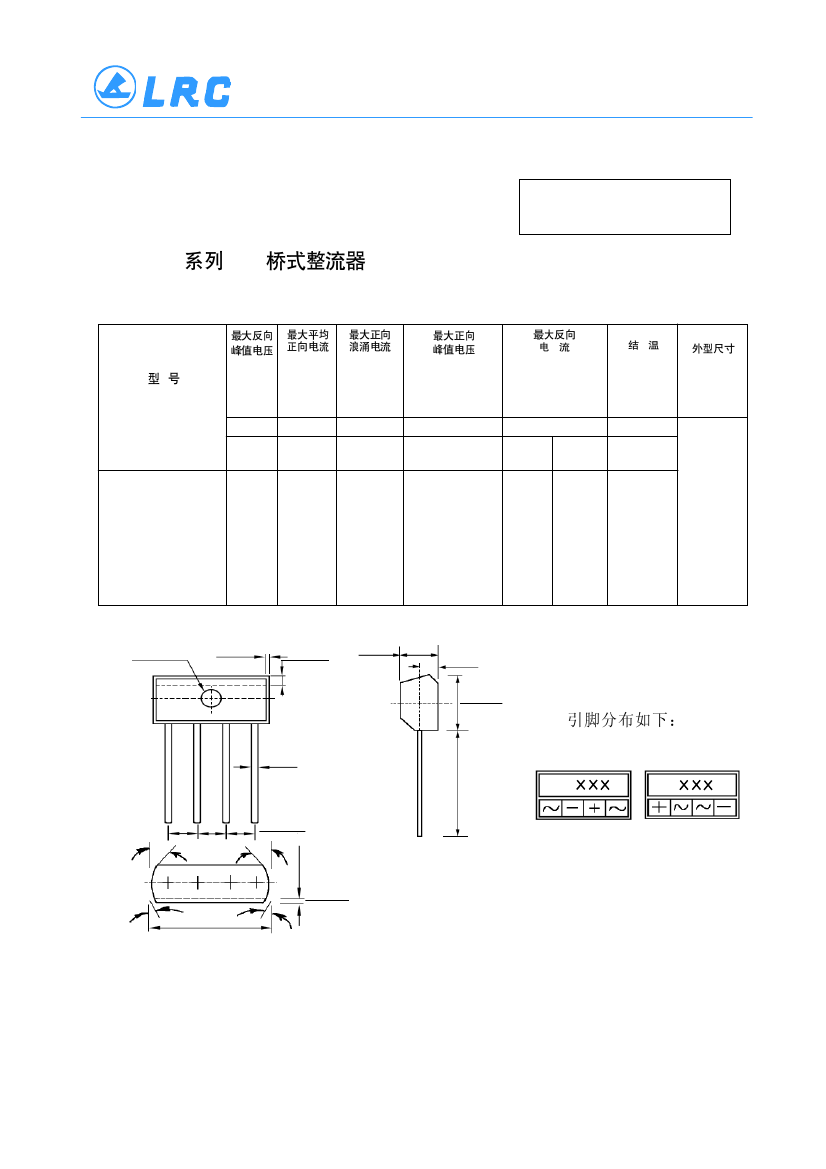

RB150 – RB159

RB150S – RB159S

1.5A RB

SIP

1.5A RB SERIES SIP BRIDGE RECTIFIERS

Maximum

TYPE

Peak

Reverse

Voltage

PRV

V

PK

Maximum

Average Forward Peak

Forward

Surge Current

Output

@ 8.3ms

Current

@T

A

=60°C Superimposed

I

O

Maximum DC

Forward Voltage

drop per element

at I

F

=1.5ADC

V

F

V

PK

Maximum DC

Reverse Current

at rated DC

Blocking Voltage

per element

I

R

25°CTA

µADC

125°CTA

µADC

Operating

Junction

Temperature

Package

Dimensions

I

FM

(Surge)

A

PK

T

J

°C

A

AV

RB150

RB151

RB152

RB154

RB156

RB158

RB159

RB150S

RB151S

RB152S

RB154S

RB156S

RB158S

RB159S

50

100

200

400

600

800

1000

1.5

50

1.0

10

500

140

RB SERIES

φ

.122(3.10)

φ

.114(2.90)

.022(0.55)

.018(0.45)

.049(1.20)

.031(0.80)

.244(6.2)

.226(5.9)

.122(3.1)

.114(2.9)

.268(6.8)

.283(7.2)

Pinout:

.031(0.80)

.030(0.76)

.590(15.0)

RB

.205(5.20)

.189(4.50)

6

RB

S

.031(0.8)

.047(1.2)

3

.720(18.3)

.697(17.7)

3

RB SERIES

4CA–1/2
