REVISIONS
REV
B1
ECO
-
DESCRIPTION
RELEASED DRAWING
DATE
Nov-23-2014
BY
Ben
APPR
Tommy
9/16-24 UNEF THREAD
MASTER KEYWAY
.8
ø21
TITLE:
Ø20.0

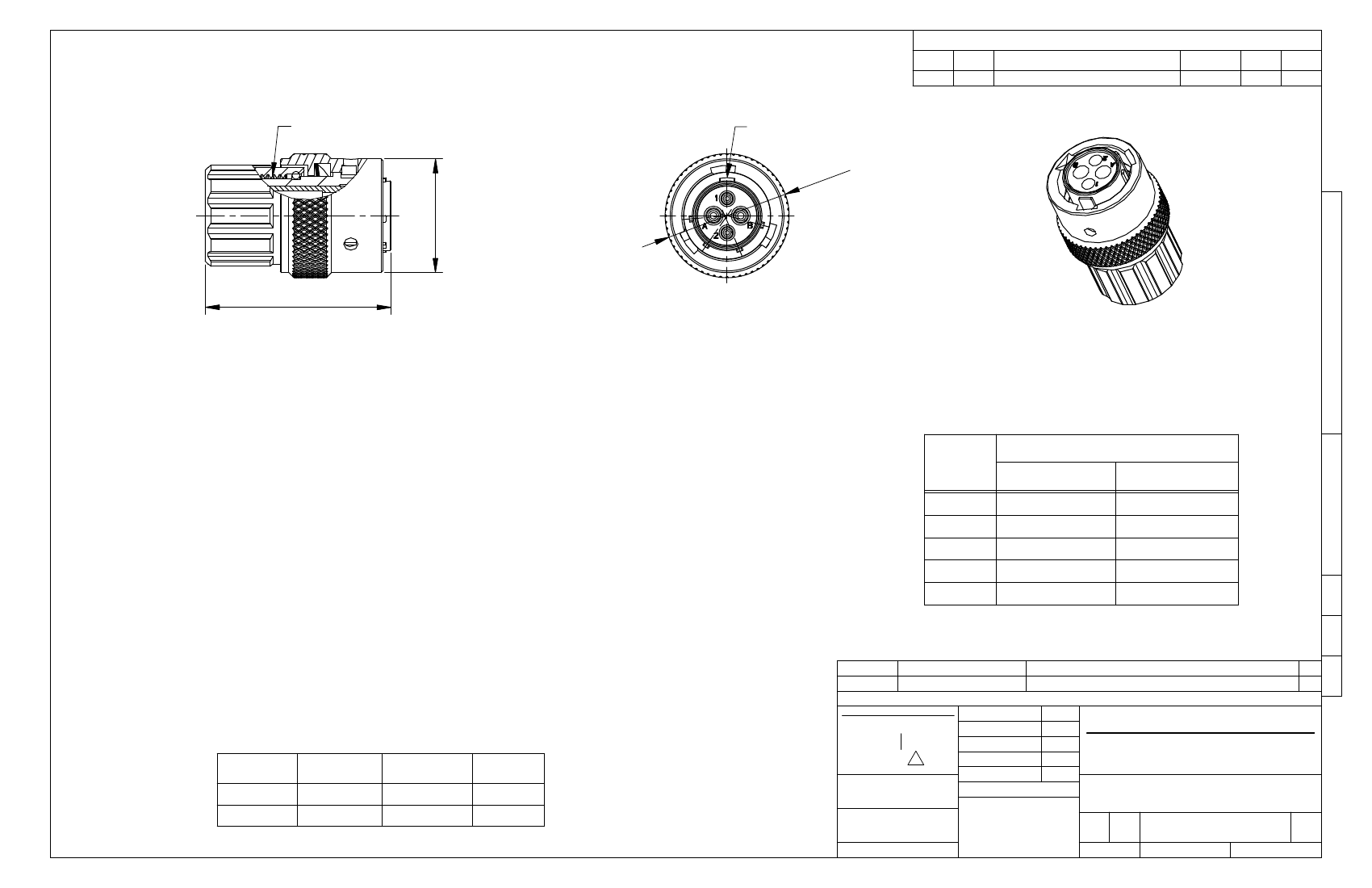

ECO-MATE,PLUG, 2POS,SIZE 10,SOCKET,END CAP.
32.7 Ref
NOTES：(UNLESS OTHERWISE SPECIFIED)
1. MATERIAL：
SHELL：ZINC ALLOY，NICKEL PLATED.
INSERT：THERMOPLASTIC，UL94 V-0.
END CAP：THERMOPLASTIC，UL94 V-0.
COUPLING NUT：AL ALLOY，NICKEL PLATED.
WAVE WASHER：STAINLESS STEEL.
O-RING：NBR/SILICONE RUBBER.
WIRE SEAL：SILICONE RUBBER.
PLASTIC BUSHING：THERMOPLASTIC，UL94 V-0.
2. SPECIFICATIONS：
2.1 RATED CURRENT:
2.1.1 16# CONTACT 13A (MAX).
2.1.2 20# CONTACT 5A (MAX).
2.2 RATED VOLTAGE：350V(AC/DC).
2.3 OPERATING TEMPERATURE：SEE CHART.
2.4 DIELECTRIC WITHSTANDING VOLTAGE：LESS THAN
2 MILLIAMPS CURRENT LEAKAGE@2000 VOLTS AC.
2.5 INSULATION RESISTANCE：5000 MEGOHMS MIN.
2.6 IP--CLASS：IP67.
2.7 MATING CYCLES DURABILITY：500 CYCLES(MIN).
2.8 ROHS COMPLIANT.
3. SUITABLE CONTACTS ：16# & 20# CONTACTS.
4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
5. CONTACT SIZE AND REAR SEAL WIRE RANGE：
CONTACT SIZE MIN. INSUL O.D. MAX. INSUL O.D. WIRE RANGE
DWG NO:
PART NUMBER
KEY POS
-40°C ~ 105°C
-40°C ~ 125°C
RT06102S*HEC*
N
W
X
Y
Z
RT06102SNHEC
RT06102SWHEC
RT06102SXHEC
RT06102SYHEC
RT06102SZHEC
RT06102SNHEC03
RT06102SWHEC03
RT06102SXHEC03
RT06102SYHEC03
RT06102SZHEC03
REV:
B1
SH:
1
QUANTITY
SEE PART NUMBER
CHART
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
OF:
ITEM
1
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
Ben
Nov-23-2014
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
16#
20#
Ø2.0mm
Ø1.6mm
Ø3.2mm
Ø2.6mm
14 - 24AWG
20 - 30AWG
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
ECO-MATE,PLUG,
2POS,SIZE 10,SOCKET,END CAP.
TYPE
DWG NO:
REVISION
B
C-
RT06102S*HEC*
SHEET
B1
OF
NONE
1
1
