BT151B650RT/R datasheet, PDF - EEWORLD Datasheet

BT151B650RT/R: DescriptionSilicon Controlled Rectifier, 7500mA I(T), 650V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size261KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

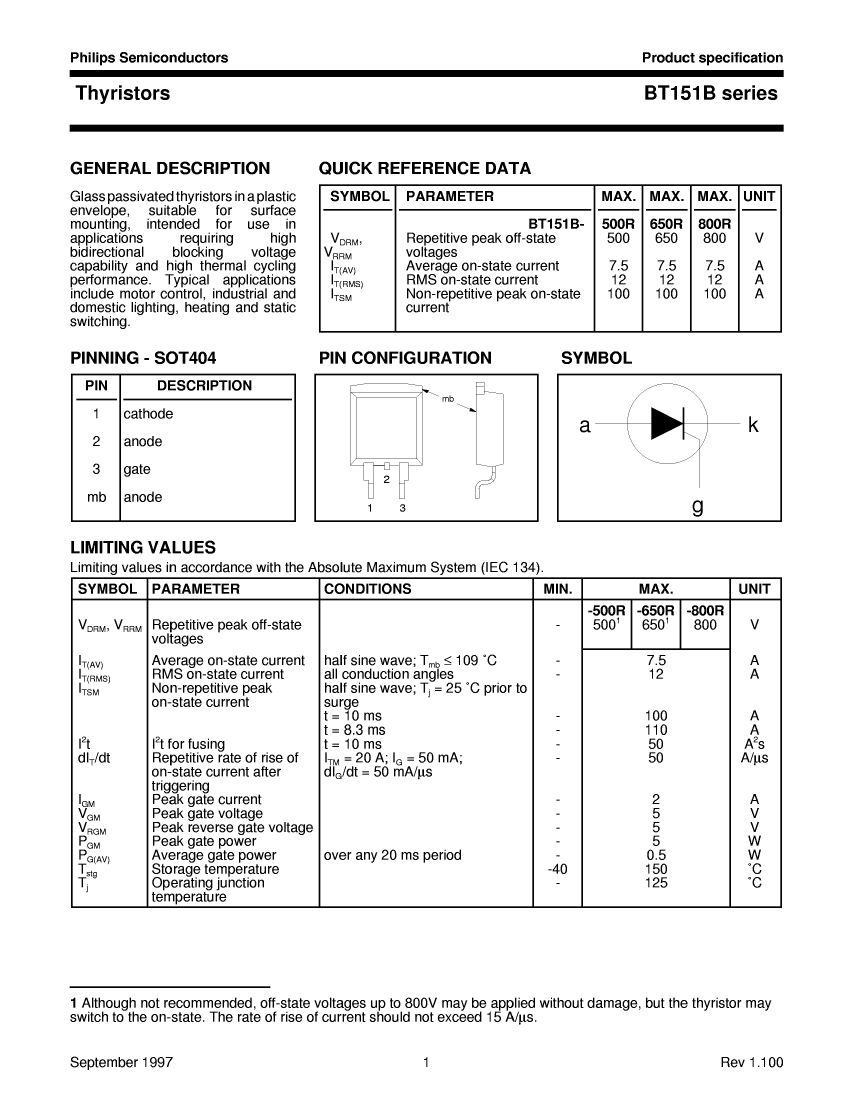

BT151B650RT/R Overview

Silicon Controlled Rectifier, 7500mA I(T), 650V V(DRM)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N

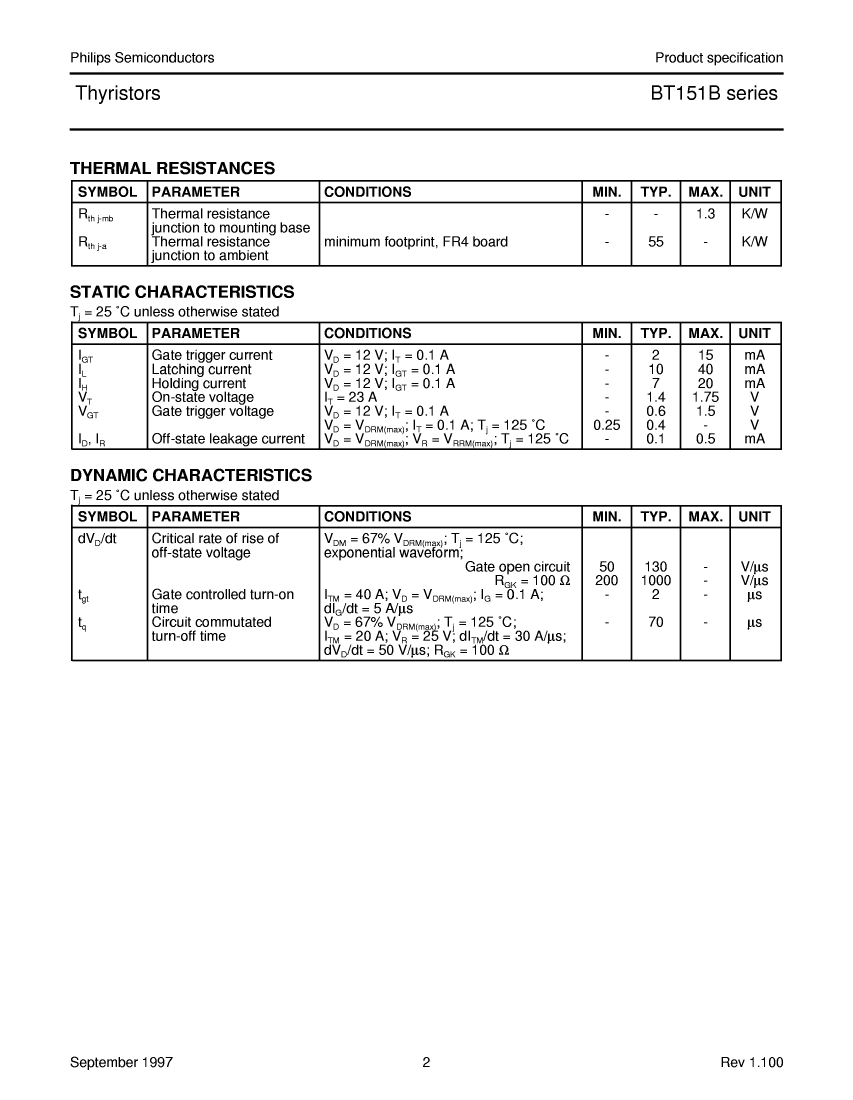

Nominal circuit commutation break time	70 µs
Critical rise rate of minimum off-state voltage	50 V/us

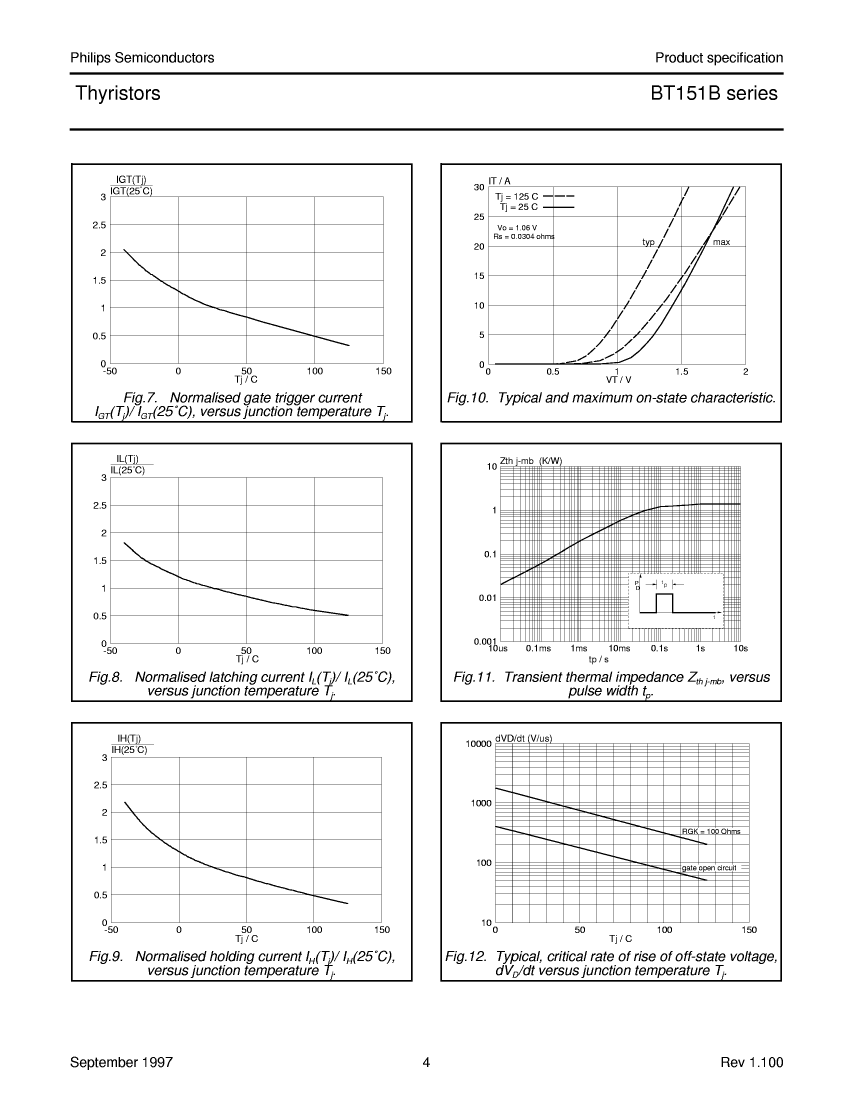

Maximum DC gate trigger current	15 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	20 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA

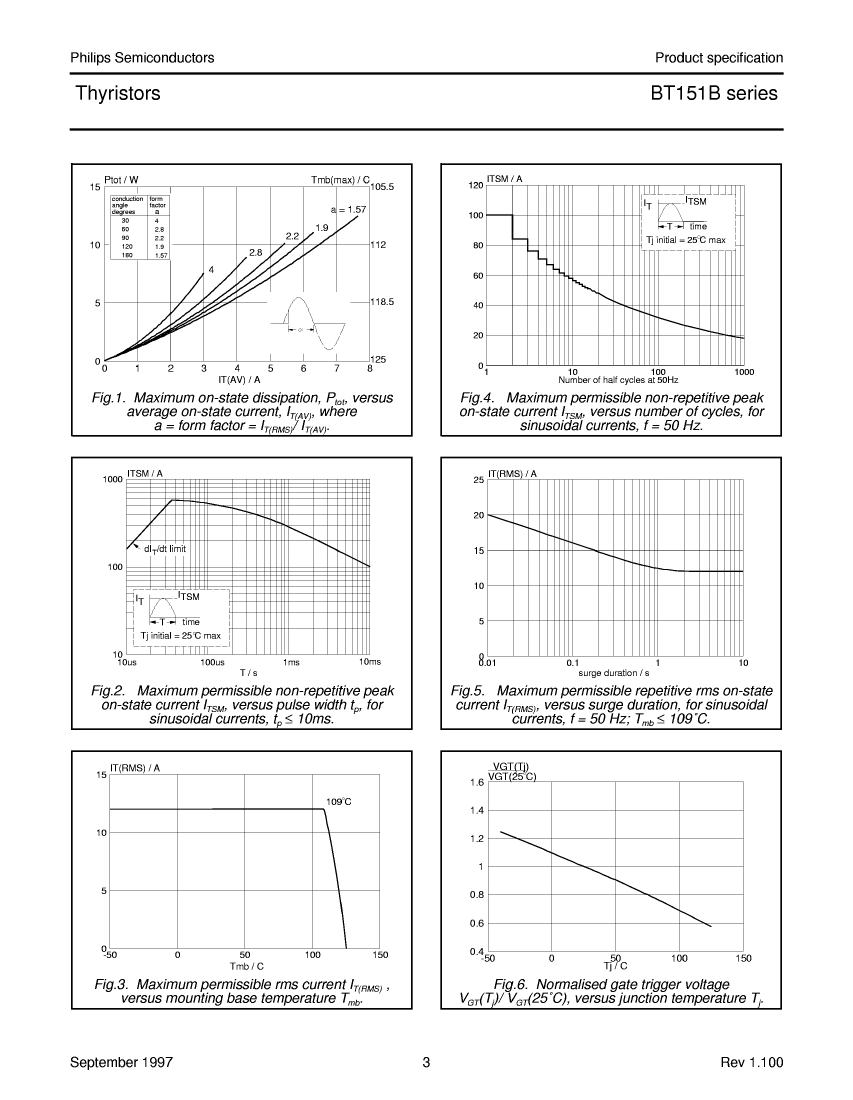

On-state non-repetitive peak current	100 A
Maximum on-state voltage	1.8 V
Maximum on-state current	7500 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	650 V

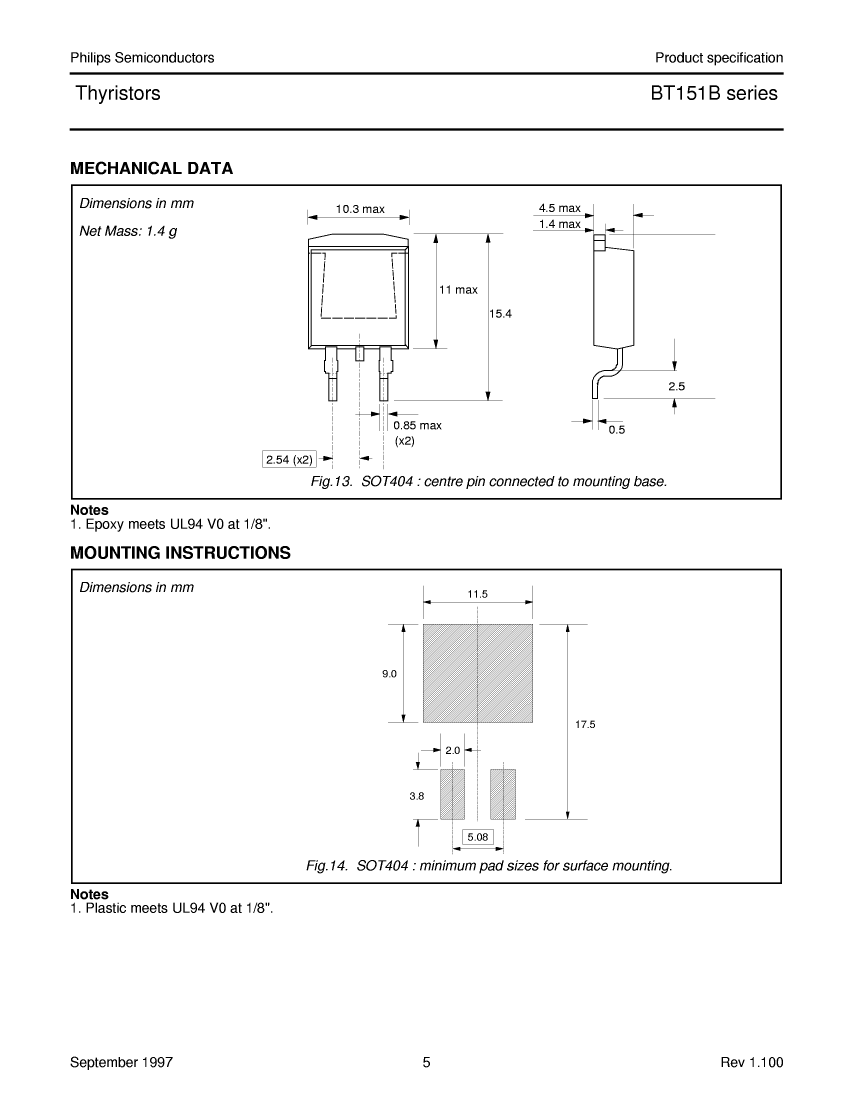

surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR
Base Number Matches	1

	BT151B650RT/R	BT151B500RT/R	BT151B800RT/R
Description	Silicon Controlled Rectifier, 7500mA I(T), 650V V(DRM)	Silicon Controlled Rectifier, 7500mA I(T), 500V V(DRM)	Silicon Controlled Rectifier, 7500mA I(T), 800V V(DRM)
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Is Samacsys	N	N	N
Nominal circuit commutation break time	70 µs	70 µs	70 µs
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	50 V/us
Maximum DC gate trigger current	15 mA	15 mA	15 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	20 mA	20 mA	20 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
On-state non-repetitive peak current	100 A	100 A	100 A
Maximum on-state voltage	1.8 V	1.8 V	1.8 V
Maximum on-state current	7500 A	7500 A	7500 A
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Off-state repetitive peak voltage	650 V	500 V	800 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SCR	SCR	SCR
Base Number Matches	1	1	1
